Narrow Mouth Round

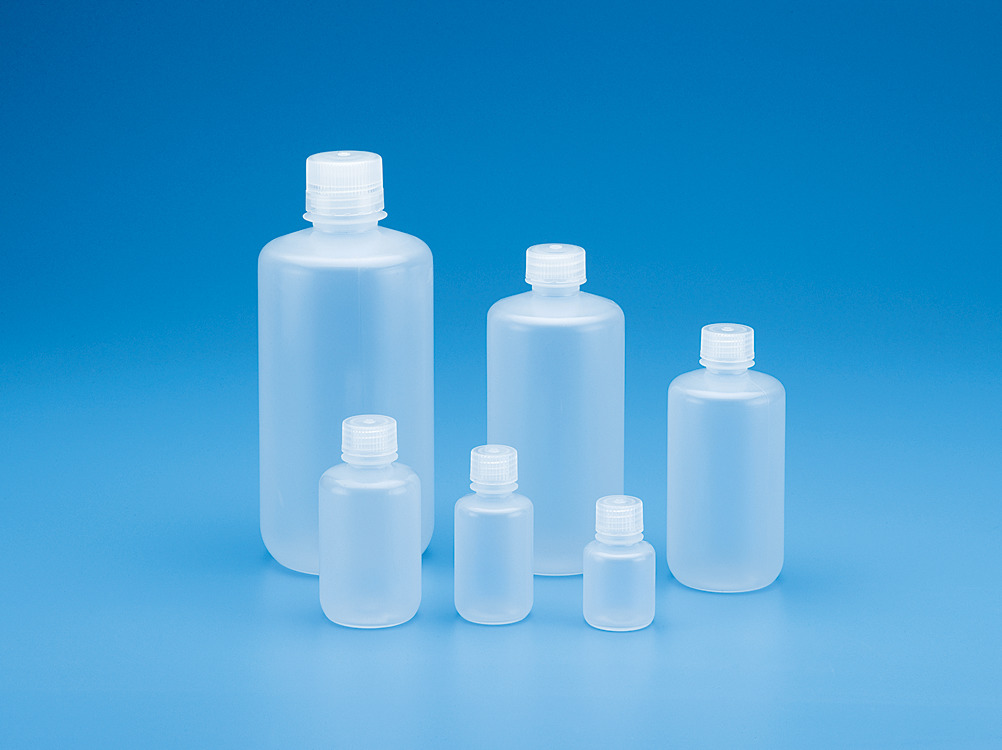

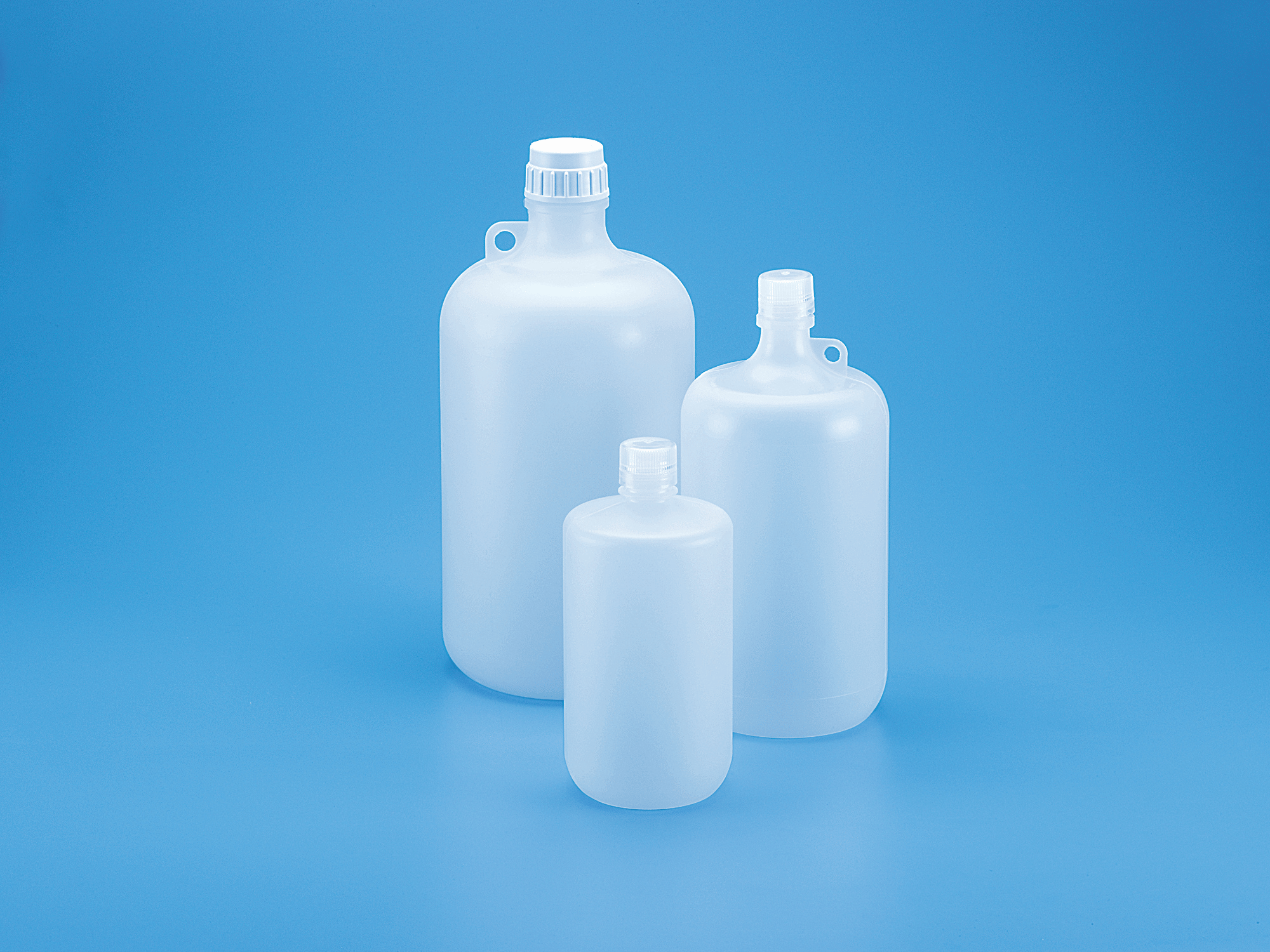

Narrow Mouth Bottle, PP, with PP closure, Lab Pack

Material conforming to USP Class VI. These bottles are rigid, translucent (natural), autoclavable and leakproof, featuring an internal thread design, providing enhanced sealing and increased security. These translucent autoclavable PP bottles offer excellent chemical resistance. These bottles are suitable for lighter-duty, general purpose applications. They are used for storage, and shipping purposes. They exhibit superior resistance to chemicals and provide good clarity for viewing contents. They come with Polypropylene closures.

These bottles are ideal for lab applications requiring excellent chemical resistance and autoclaving of containers with/without contents. These are used for storing chemicals and standards, collecting and storing distilled water. Large narrow mouth bottles have built in shoulder loop for attaching an identification tag. The following bottles come in Lab packing option.

NOTE: Before autoclaving set the closure on top of the container without engaging the threads.

Certificates
Catalog No. Technical Data Capacity Mouth Type Material (Bottle) Shape Closure Size (mm) Autoclavability Sterility Packing Details
582070

4 mL
(0.1 oz)		 Narrow PP Round 13-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 4 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 5.2 in-lb to 6.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 4.3 mL
Screw Closure Size 13-415 mm
Inner Neck Diameter 8.3 mm
Bottle Outer Diameter 15.8 mm
Height w/out closure 38.6 mm
Height with closure 41 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI


582071

5 mL
(0.2 oz)		 Narrow PP Round 13-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 5 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 5.2 in-lb to 6.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 6 mL
Screw Closure Size 13-415 mm
Inner Neck Diameter 8.4 mm
Bottle Outer Diameter 17.8 mm
Height w/out closure 40.3 mm
Height with closure 42 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582080

8 mL
(0.3 oz)		 Narrow PP Round 20-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 8 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 11 mL
Screw Closure Size 20-415 mm
Inner Neck Diameter 13.4 mm
Bottle Outer Diameter 25 mm
Height w/out closure 42.3 mm
Height with closure 45.5 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582090

15 mL
(0.5 oz)		 Narrow PP Round 20-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 15 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 16.8 mL
Screw Closure Size 20-415 mm
Inner Neck Diameter 13.5 mm
Bottle Outer Diameter 25 mm
Height w/out closure 56 mm
Height with closure 58.4 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582091

20 mL
(0.7 oz)		 Narrow PP Round 20-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 20 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 22 mL
Screw Closure Size 20-415 mm
Inner Neck Diameter 13.5 mm
Bottle Outer Diameter 27.5 mm
Height w/out closure 59 mm
Height with closure 62 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582100

30 mL
(1.0 oz)		 Narrow PP Round 20-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 30 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 35 mL
Screw Closure Size 20-415 mm
Inner Neck Diameter 13.8 mm
Bottle Outer Diameter 36.5 mm
Height w/out closure 60 mm
Height with closure 62.5 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582110

60 mL
(2.0 oz)		 Narrow PP Round 20-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 60 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 64 mL
Screw Closure Size 20-415 mm
Inner Neck Diameter 13.8 mm
Bottle Outer Diameter 40.2 mm
Height w/out closure 82.6 mm
Height with closure 85 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582120

125 mL
(4.2 oz)		 Narrow PP Round 24-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 125 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 138 mL
Screw Closure Size 24-415 mm
Inner Neck Diameter 17.7 mm
Bottle Outer Diameter 51.7 mm
Height w/out closure 98.3 mm
Height with closure 100 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582130

250 mL
(8 oz)		 Narrow PP Round 24-415 mm Yes No PK 12, CS 72
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 250 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 290 mL
Screw Closure Size 24-415 mm
Inner Neck Diameter 17.7 mm
Bottle Outer Diameter 61.5 mm
Height w/out closure 131.7 mm
Height with closure 133.5 mm
No per Pack 12
No per Case 72
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582140

500 mL
(17 oz)		 Narrow PP Round 28-415 mm Yes No PK 12, CS 48
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 500 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 15.6 in-lb to 21.7 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 540 mL
Screw Closure Size 28-415 mm
Inner Neck Diameter 21.2 mm
Bottle Outer Diameter 73.5 mm
Height w/out closure 168 mm
Height with closure 170.5 mm
No per Pack 12
No per Case 48
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582141

500 mL
(17 oz)		 Narrow PP Round 38-430 mm Yes No PK 12, CS 48
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 500 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity
Screw Closure Size 38-430 mm
Inner Neck Diameter 28.2 mm
Bottle Outer Diameter 75.2 mm
Height w/out closure 180 mm
Height with closure 184 mm
No per Pack 12
No per Case 48
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582150

1000 mL
(34 oz)		 Narrow PP Round 38-430 mm Yes No PK 6, CS 24
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 1000 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 1100 mL
Screw Closure Size 38-430 mm
Inner Neck Diameter 27.8 mm
Bottle Outer Diameter 93.9 mm
Height w/out closure 213 mm
Height with closure 219 mm
No per Pack 6
No per Case 24
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582160

4000 mL
(135 oz)		 Narrow PP Round 38-430 mm Yes No PK 6, CS 24
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 4000 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 4360 mL
Screw Closure Size 38-430 mm
Inner Neck Diameter 27 mm
Bottle Outer Diameter 153 mm
Height w/out closure 330 mm
Height with closure 333 mm
No per Pack 6
No per Case 6
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582180

2000 mL
(68 oz)		 Narrow PP Round 38-430 mm Yes No PK 6, CS 24
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 2000 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Sterility Non-sterile
Approx. Brim Capacity 2082 mL
Screw Closure Size 38-430 mm
Inner Neck Diameter 26.9 mm
Bottle Outer Diameter 120 mm
Height w/out closure 247 mm
Height with closure 251 mm
No per Pack 6
No per Case 6
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582190

8000 mL
(271 oz)		 Narrow PP Round 53B Yes No PK 6, CS 24
Description Autoclavable Narrow Mouth, Round Bottle, PP with PP Closure, 8000 mL
Product Type Narrow Mouth, Round Bottle
Bottle Color Translucent (Natural)
Closure Color Translucent (Natural)
Bottle Material Polypropylene
Closure Material Polypropylene
Closure Liner Unlined
Closure Included Yes, closures are loosely fitted with individual bottles
Autoclavable Autoclavable
Leak proof Yes, Leak proof with …………………………….torque
Sterility Non-sterile
Approx. Brim Capacity 8500 mL
Screw Closure Size 53B
Inner Neck Diameter 39.1 mm
Bottle Outer Diameter 195 mm
Height w/out closure 408 mm
Height with closure 418 mm
No per Pack 6
No per Case 6
Compliance Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI

  • Material conforming to USP Class VI.
  • Low in trace elements.
  • Leakproof & Autoclavable.
  • Excellent chemical resistance to most acids, bases and alcohols.
  • Autoclavable with or without contents.
  • Provides excellent clarity for viewing contents.
  • Ideal for lab applications requiring excellent chemical resistance and autoclaving of containers with/without contents.
  • Translucent but provides better clarity than HDPE/LDPE bottles.
  • Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.
  • Come in Lab Packing option.

Note:

  • Before autoclaving set the closure on top of the container without engaging the threads.

Catalog Number: 582070, 582071, 582080, 582090, 582091, 582100, 582110, 582120, 582130, 582140, 582141, 582150, 582160, 582180, 582190

Schematics & Diagrams

Product Information

Related products
