Narrow Mouth Round

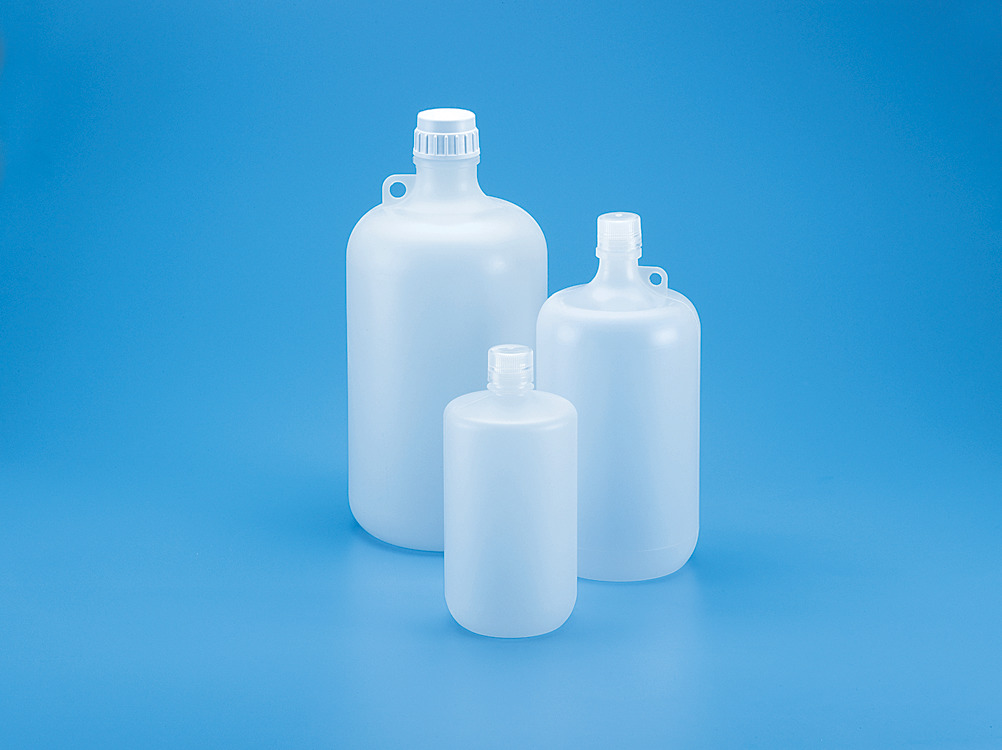

Narrow Mouth Bottles, LDPE, with PP closure, Lab Pack

Material conforming to USP Class VI, low in trace elements. These bottles are rigid, translucent (natural), and leakproof, featuring an internal thread design, providing enhanced sealing and increased security. These translucent PP bottles offer excellent chemical resistance. These bottles are suitable for lighter-duty, general purpose applications. They are used for storage, and shipping purposes. They exhibit superior resistance to chemicals and provide good clarity for viewing contents. They come with Polypropylene closures.

These bottles are ideal for lab applications requiring excellent chemical resistance. These bottles are suitable for storage of low-density liquids. They are good for freezer storage up to -100°C.

They are used for storing chemicals and standards, collecting and storing distilled water. Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.

The following bottles come in Lab packing option.

Certificates
Catalog Number Technical Data Capacity Mouth Type Material (Bottle) Shape Closure Size (mm) Autoclavable Sterility Pack Size
586080

8 mL
(0.3 oz)
Narrow LDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 8 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 11 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.4 mm
Bottle Outer Diameter: 24.7 mm
Height w/out closure: 42.3 mm
Height with closure: 45 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586090

15 mL
(0.5 oz)
Narrow LDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 15 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 16 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.3 mm
Bottle Outer Diameter: 24.8 mm
Height w/out closure: 56 mm
Height with closure: 58 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586200

30 mL
(1.0 oz)
Narrow LDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 30 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 35 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.8 mm
Bottle Outer Diameter: 36.4 mm
Height w/out closure: 60 mm
Height with closure: 62.5 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586210

60 mL
(2.0 oz)
Narrow LDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 60 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 64 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.8 mm
Bottle Outer Diameter: 39.9 mm
Height w/out closure: 82 mm
Height with closure: 83.8 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586220

125 mL
(4.2 oz)
Narrow LDPE Round 24-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 125 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 138 mL
Screw Closure Size: 24-415 mm
Inner Neck Diameter: 17.7 mm
Bottle Outer Diameter: 51.5 mm
Height w/out closure: 98.4 mm
Height with closure: 100 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586230

250 mL
(8 oz)
Narrow LDPE Round 24-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 250 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 290 mL
Screw Closure Size: 24-415 mm
Inner Neck Diameter: 17.6 mm
Bottle Outer Diameter: 61.1 mm
Height w/out closure: 130.7 mm
Height with closure: 133 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586231

250 mL
(8 oz)
Narrow LDPE Round 24-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Amber Bottle, LDPE with PP Amber Closure, 250 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 290 mL
Screw Closure Size: 24-415 mm
Inner Neck Diameter: 17.6 mm
Bottle Outer Diameter: 61.1 mm
Height w/out closure: 131 mm
Height with closure: 133 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586240

500 mL
(17 oz)
Narrow LDPE Round 28-415 mm No No PK 12, CS 48
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 500 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 15.6 in-lb to 21.7 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 540 mL
Screw Closure Size: 28-415 mm
Inner Neck Diameter: 21.2 mm
Bottle Outer Diameter: 72.8 mm
Height w/out closure: 168 mm
Height with closure: 170 mm
No per Pack: 12
No per Case: 48
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586250

1000 mL
(34 oz)
Narrow LDPE Round 38-430 mm No No PK 12, CS 48
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 1000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 1095 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 27.8 mm
Bottle Outer Diameter: 93.1 mm
Height w/out closure: 213 mm
Height with closure: 218 mm
No per Pack: 12
No per Case: 48
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586260

2000 mL
(68 oz)
Narrow LDPE Round 38-430 mm No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 2000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 2082 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 26.9 mm
Bottle Outer Diameter: 119 mm
Height w/out closure: 246 mm
Height with closure: 250 mm
No per Pack: 6
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586280

4000 mL
(135 oz)
Narrow LDPE Round 38-430 mm No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 4000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 4360 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 27 mm
Bottle Outer Diameter: 153 mm
Height w/out closure: 330 mm
Height with closure: 334 mm
No per Pack: 6
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
586290

8000 mL
(271 oz)
Narrow LDPE Round 53B No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, LDPE with PP Closure, 8000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Clear (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: Low-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavable: Non-autoclavable
Leak proof: Yes, Leak proof with 37.3 in-lb to 52 in-lb torque
Graduations: Non-graduated
Sterility: Non-sterile
Approx. Brim Capacity: 8560 mL
Screw Closure Size: 53B
Inner Neck Diameter: 39.1 mm
Bottle Outer Diameter: 195 mm
Height w/out closure: 408 mm
Height with closure: 420 mm
No per Pack: 6
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI

  • Material conforming to USP Class VI.
  • Low in trace elements.
  • Excellent chemical resistance to most acids, bases and alcohols.
  • Suitable for storage of low-density liquids.
  • Good for freezer storage up to -100°C.
  • Provides excellent clarity for viewing contents.
  • Ideal for lab applications requiring excellent chemical resistance.
  • Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.
  • Comes in Lab Packing option.

Catalog Number: 586080, 586090, 586200, 586210, 586220, 586230, 586231, 586240, 586250, 586260, 586280, 586290

Application Notes

Schematics & Diagrams

Related products
