OVERHEAD CARBOY MAGNETIC STIRRER

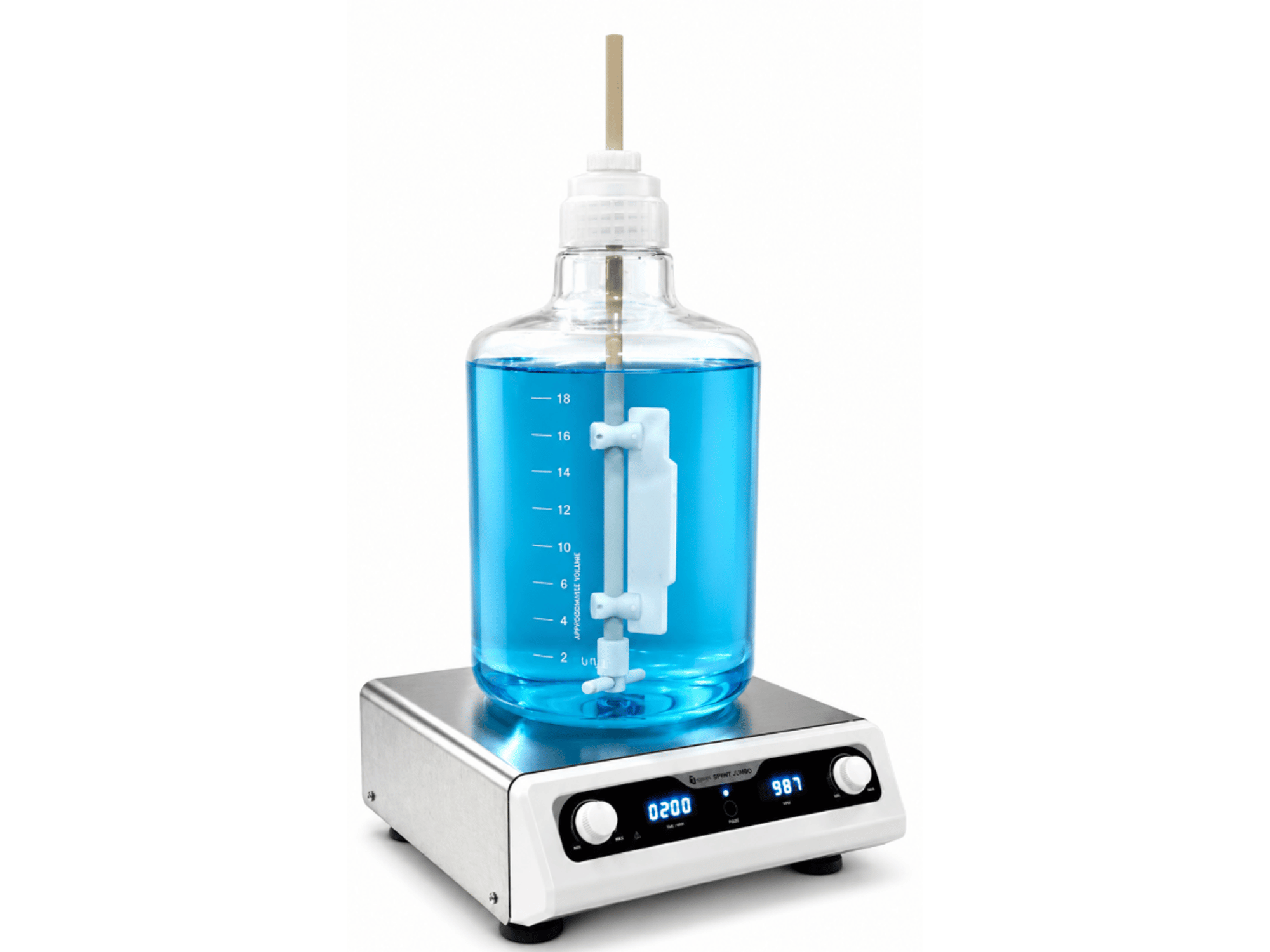

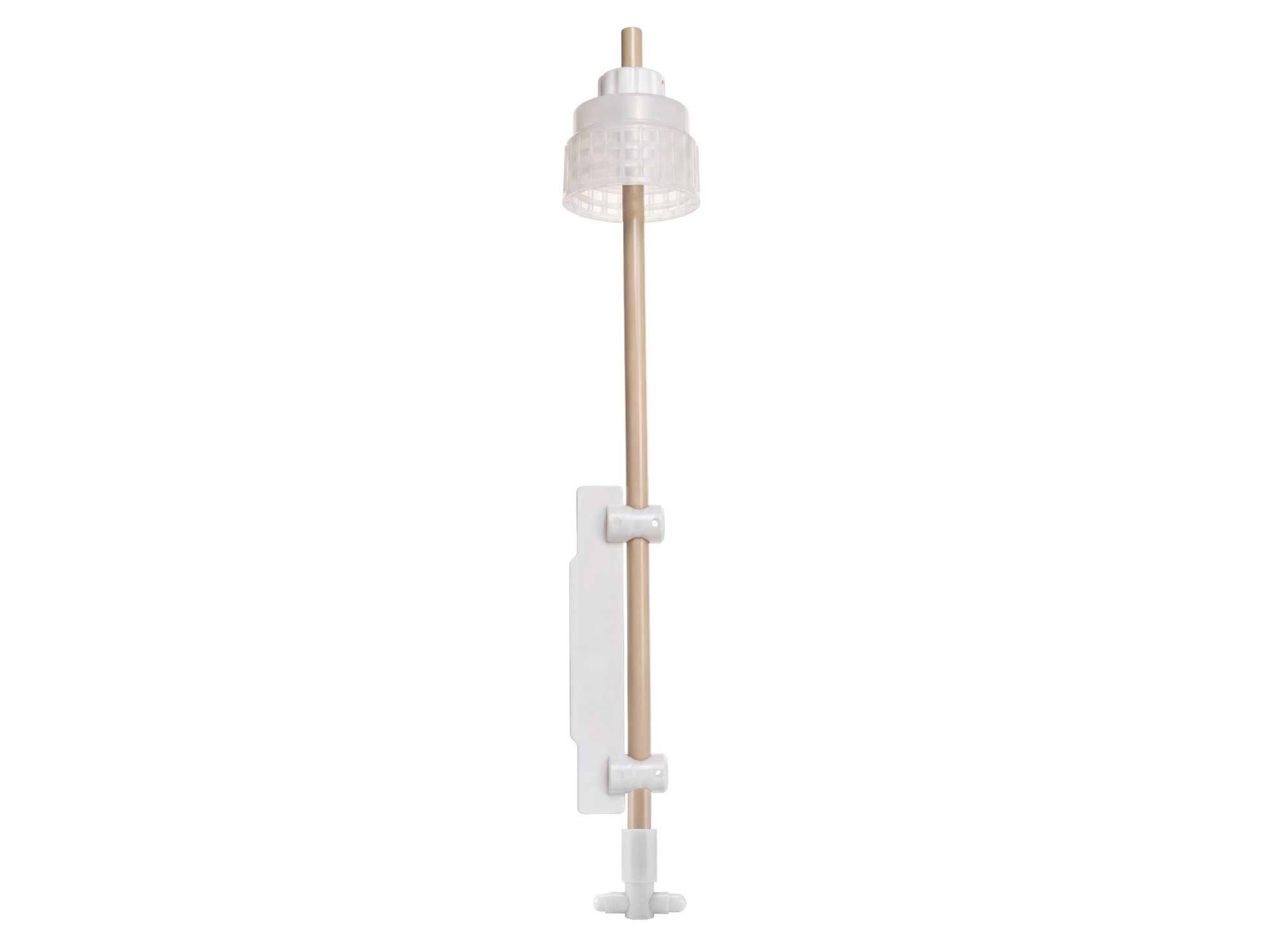

Designed for efficient mixing of liquids in 10 L, 20 L and 50 L carboys with an 83B neck finish. This reusable magnetic stir bar is suspended from a durable shaft and positioned approximately ½ inch above the bottom of the carboy to ensure optimal stirring performance. Engineered for outstanding chemical resistance, it is compatible with strong acids, strong bases and alcohols, making it ideal for demanding laboratory applications. The assembly is constructed from high-quality materials, including a polypropylene (PP) 83B screw closure, lock nut, baffle, and bracket; a PEEK shaft; a PVDF rotor; and Teflon® (PTFE) stir bar and impeller, ensuring exceptional durability, chemical compatibility, and long service life.

Certificates..
Code Technical Data Description Packing
MS8310

Overhead Magnetic Stirrer, 10L PK 1
MS8310
Compatible carboy Sizes: 10L
Stir Bar Position: Approx. ½ inch above from the bottom of the carboy
Material: PP (Polypropylene), PEEK (Poly Ether Ether Ketone), PTFE (Polytetrafluoroethylene), PVDF (Polyvinylidene Fluoride)
PP Closure & Baffle Temperature limit: Up to 135˚C
TEFLON® (TFE) Stir Bar & Impeller: Up to 121˚C
Lock Nut temperature Limit: -20˚C to 135˚C
Peek Main Shaft Temperature Limit: Up to 121˚C
Operating Mode: Continuous Running and pulse mode
Speed Range: Upto 1000 rpm
Packing: PK 1
MS8320

Overhead Magnetic Stirrer, 20L PK 1
MS8310
Compatible carboy Sizes: 10L
Stir Bar Position: Approx. ½ inch above from the bottom of the carboy
Material: PP (Polypropylene), PEEK (Poly Ether Ether Ketone), PTFE (Polytetrafluoroethylene), PVDF (Polyvinylidene Fluoride)
PP Closure & Baffle Temperature limit: Up to 135˚C
TEFLON® (TFE) Stir Bar & Impeller: Up to 121˚C
Lock Nut temperature Limit: -20˚C to 135˚C
Peek Main Shaft Temperature Limit: Up to 121˚C
Operating Mode: Continuous Running and pulse mode
Speed Range: Upto 1000 rpm
Packing: PK 1
MS8350

Overhead Magnetic Stirrer, 50L PK 1
MS8350
Compatible carboy Sizes: 50L
Stir Bar Position: Approx. ½ inch above from the bottom of the carboy
Material: PP (Polypropylene), PEEK (Poly Ether Ether Ketone), PTFE (Polytetrafluoroethylene), PVDF (Polyvinylidene Fluoride)
PP Closure & Baffle Temperature limit: Up to 135˚C
TEFLON® (TFE) Stir Bar & Impeller: Up to 121˚C
Lock Nut temperature Limit: -20˚C to 135˚C
Peek Main Shaft Temperature Limit: Up to 121˚C
Operating Mode: Continuous Running and pulse mode
Speed Range: Upto 1000 rpm
Packing: PK 1

Key Features:

  • Consistent & Uniform Mixing
  • Reduced Contamination Risk
  • Suitable for 10L, 20L and 50L carboys
  • Exhibit 83B neck finish
  • Hands-Free Continuous Operation
  • Low Turbulence Mixing
  • Suitable for Large Volumes
  • Sterilizable & Reusable
  • Excellent resistance to strong acid, bases and alcohols

Description

Key Features:

  • Consistent & Uniform Mixing
  • Reduced Contamination Risk
  • Suitable for 10L, 20L and 50L carboys
  • Exhibit 83B neck finish
  • Hands-Free Continuous Operation
  • Low Turbulence Mixing
  • Suitable for Large Volumes
  • Sterilizable & Reusable
  • Excellent resistance to strong acid, bases and alcohols
