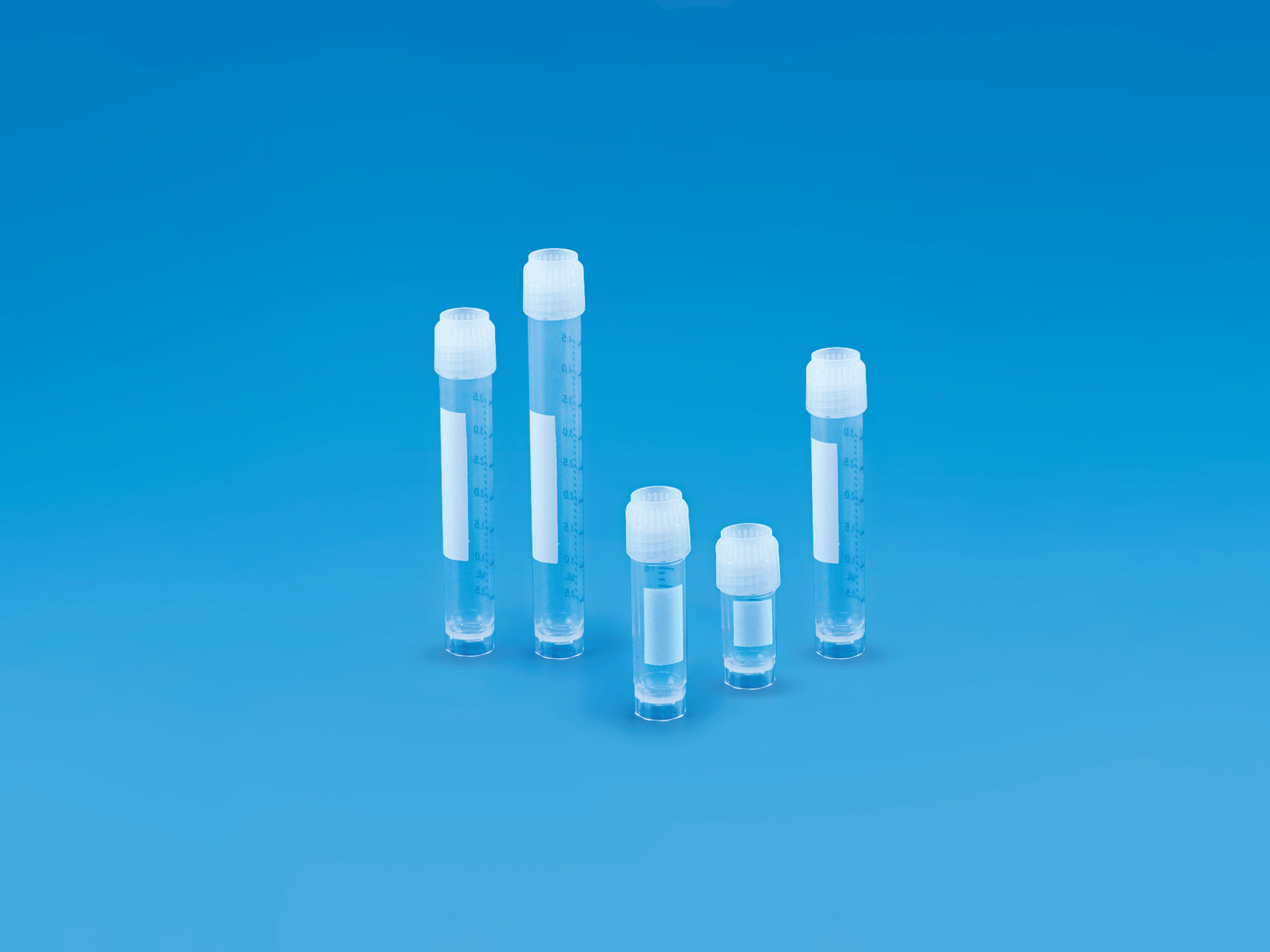

CRYOCHILL™ Cryovial, Self-Standing, Sterile

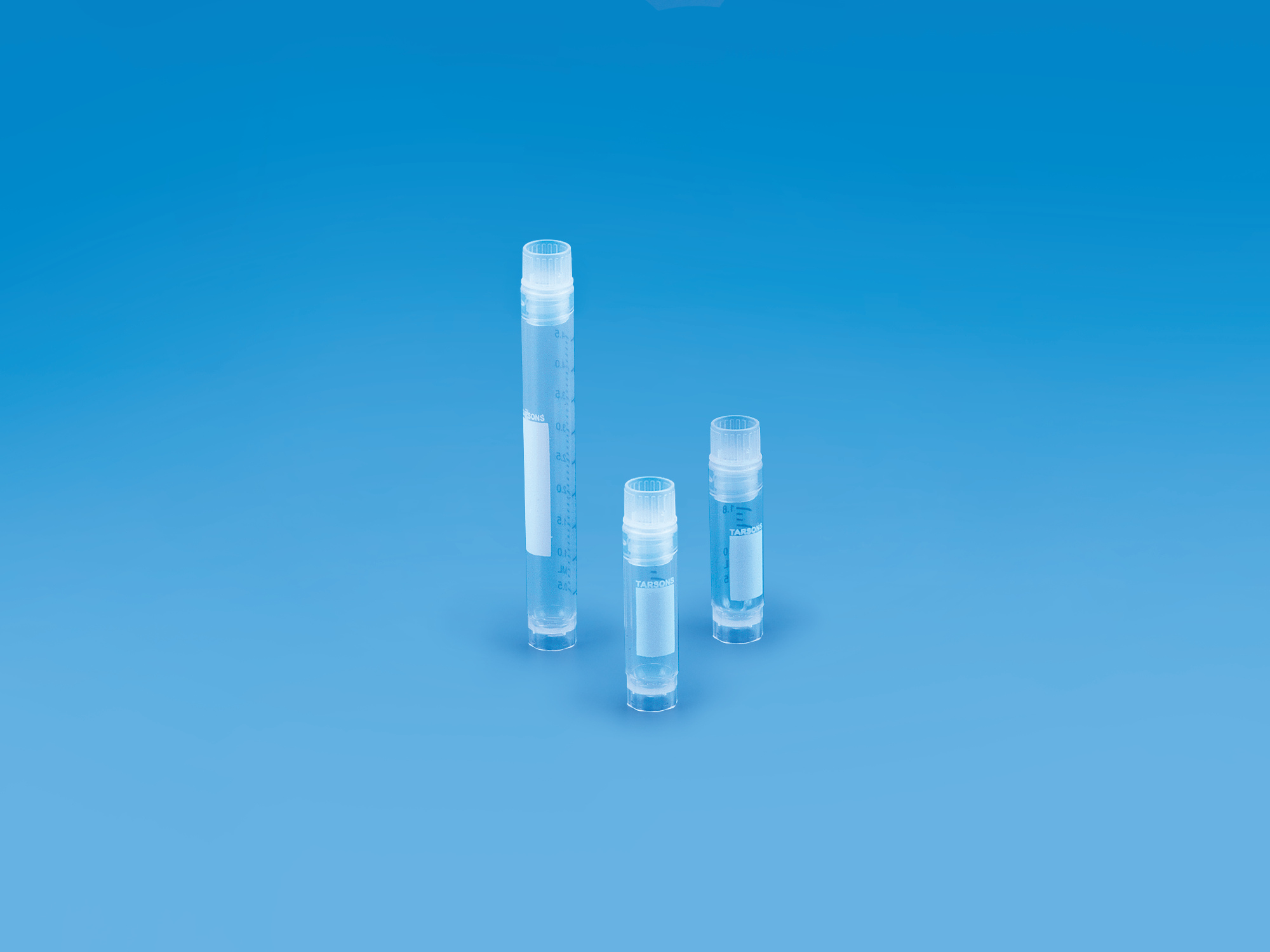

CRYOCHILL™ Cryovial, Self-Standing, Sterile - Image 2
CRYOCHILL™ Cryovial, Self-Standing, Sterile - Image 3

CRYOCHILL™ Cryovial Self-Standing Sterile, CRYOCHILL™ Labware

CRYOCHILL™ Cryovial, Self-Standing, Sterile

Self-Standing CRYOCHILL™ cryovials are available with both external and internal thread designs. These vials are made from USP Class VI compliant polypropylene (PP), while the threaded closures are manufactured from high-density polyethylene (HDPE) and feature 0.1 mL graduation markings. The internally threaded caps include a silicone washer for better sealing efficiency. These vials offer durable protection against extreme temperatures and are suitable for use in the vapor phase of liquid nitrogen as well as in mechanical freezers. They comply with IATA standards, capable of withstanding pressures up to 95 kPa without leakage, making them appropriate for transporting diagnostic specimens. Manufactured in an ISO Class 8 cleanroom environment, CRYOCHILL™ self-standing vials are certified free from detectable DNase, RNase, and pyrogens.

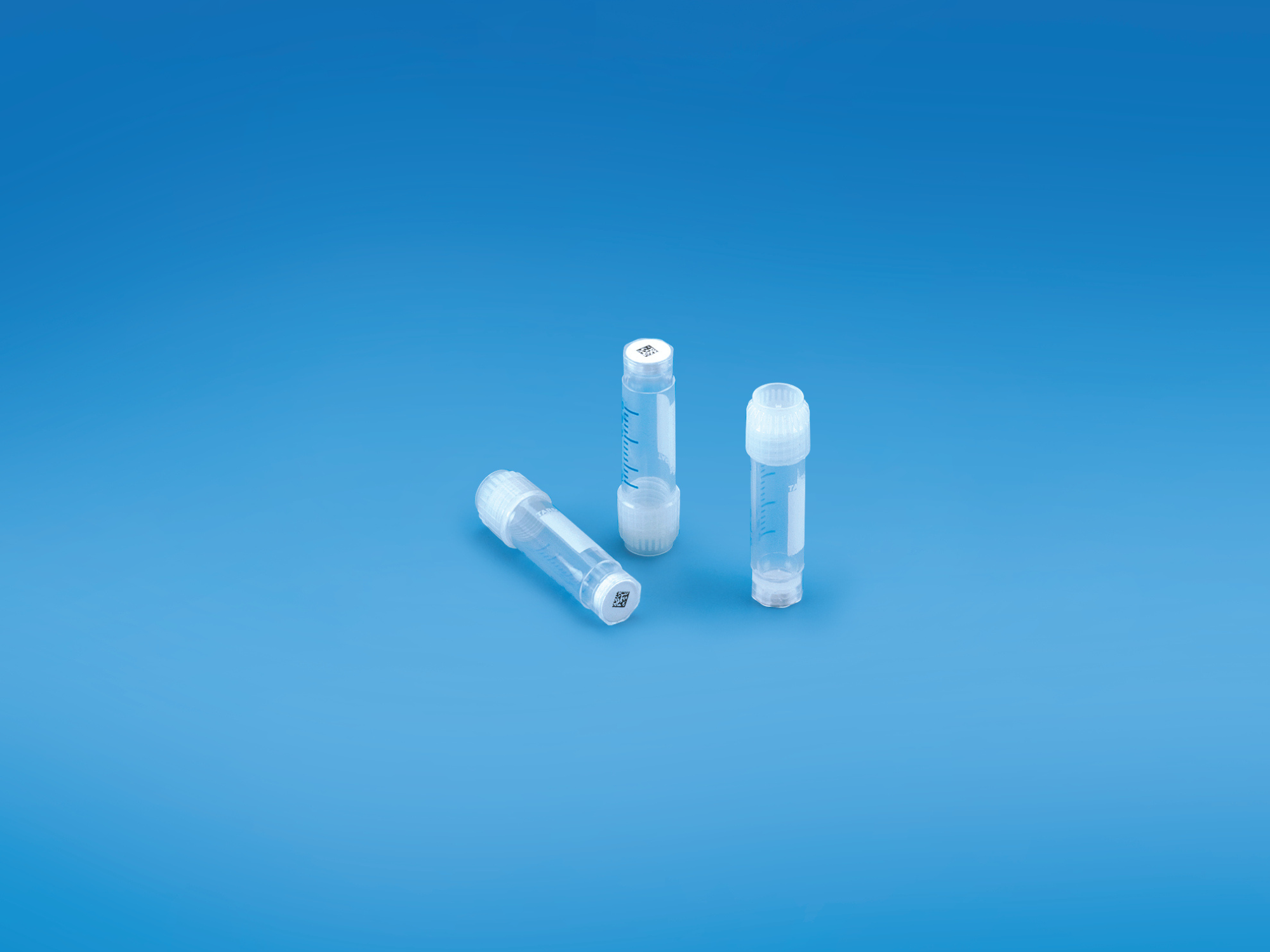

A 2D barcode is located on the bottom of self-standing cryovial and allows for rapid scanning and identification of samples.

Warning: Do not use cryovials or storage boxes in liquid phase of liquid Nitrogen as it may cause entrapment of liquefied Nitrogen inside the vial which leads to pressure build up, resulting in possible explosion of biohazard release. Always use appropriate safety equipment when removing cryovials from cryogenic storage.

Certificates..
Catalog No. Technical Data Thread Style Capacity (mL) Brim Volume (mL) Ø x h (mm) Bottom Type Sterility Autoclavability Packaging Details
523181

External 1.0 1.8 12 x 41 Self-standing with Conical bottom Yes No PK 1000
523181
Description: 1.0 mL CRYOCHILLTM Vial, Ext. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
Compatible Cryorack: 241050 (50 Places) interlocks in the bottom and ensure single hand operation
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.1 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 35.5 mm
Height with Cap: 41.4 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 1.37 g
Closure Weight: 0.57 g
Product Unit Weight: 1.94 g
Graduation Range: 0.5 mL – 1.0 mL
Graduation Interval: 0.1 mL
Brim Volume: 1.84 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 1000 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523182

External 1.8 2.6 12 x 48 Self-standing with Round Yes No PK 1000
523182
Description: 1.8 mL CRYOCHILLTM Vial, Ext. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.0 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 41.7 mm
Height with Cap: 48.0 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 1.46 g
Closure Weight: 0.57 g
Product Unit Weight: 2.03 g
Graduation Range: 0.5 mL – 1.8 mL
Graduation Interval: 0.1 mL
Brim Volume: 2.6 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 1000 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
883192 (2D Coded)

External 1.8 2.6 12 x 48 Self-standing with Round Yes No PK 1000
883192
Description: 1.8 mL CRYOCHILLTM Vial, 2D Coded, Ext. Thread, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
Compatible Cryobox: 883195
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.0 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 41.7 mm
Height with Cap: 48.0 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 1.46 g
Closure Weight: 0.57 g
Product Unit Weight: 2.03 g
Graduation Range: 0.5 mL – 1.8 mL
Graduation Interval: 0.1 mL
Brim Volume: 2.6 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 1000 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523187

External 3.0 4.2 12 x 71 Self-standing with Round Yes No PK 500
523187
Description: 3.0 mL CRYOCHILLTM Vial, Ext. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial External Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.1 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 64.7 mm
Height with Cap: 70.5 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 2.29 g
Closure Weight: 0.57 g
Product Unit Weight: 2.86 g
Graduation Range: 0.5 mL – 3.0 mL
Graduation Interval: 0.1 mL
Brim Volume: 4.24 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 500 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523188

External 3.5 4.6 12 x 75 Self-standing with Round Yes No PK 500
523188
Description: 3.5 mL CRYOCHILLTM Vial, Ext. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial External Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.1 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 69.4 mm
Height with Cap: 75.3 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 2.50 g
Closure Weight: 0.57 g
Product Unit Weight: 3.07 g
Graduation Range: 0.5 mL – 3.5 mL
Graduation Interval: 0.1 mL
Brim Volume: 4.56 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 500 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523183

External 4.5 5.5 12 x 91 Self-standing with Round Yes No PK 500
523183
Description: 4.5 mL CRYOCHILLTM Vial, Ext. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial External Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: 11.3 mm
Internal Neck Diameter: 9.8 mm
Outer Body Diameter: 12.0 mm
Avg Wall Thickness: 1.20 mm
Height without Cap: 84.7 mm
Height with Cap: 91.0 mm
Closure Outer Diameter: 13.8 mm
Tube Weight: 2.87 g
Closure Weight: 0.57 g
Product Unit Weight: 3.44 g
Graduation Range: 0.5 mL – 4.5 mL
Graduation Interval: 0.1 mL
Brim Volume: 5.5 mL
Thread Type: External
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 500 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523184

Internal 1.8 2.2 12.5 x 49 Self-standing with Round Yes No PK 1000
523184
Description: 1.8 mL CRYOCHILLTM Vial, Int. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Internal Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: NA
Internal Neck Diameter: 10.4 mm
Outer Body Diameter: 12.4 mm
Avg Wall Thickness: 1.0 mm
Height without Cap: 39.3 mm
Height with Cap: 48.9 mm
Closure Outer Diameter: 12.2 mm
Tube Weight: 1.27 g
Closure Weight: 0.65 g
Product Unit Weight: 1.92 g
Graduation Range: 0.5 mL – 1.8 mL
Graduation Interval: 0.1 mL
Brim Volume: 2.2 mL
Thread Type: Internal
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 1000 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
883193 (2D Coded)

Internal 1.8 2.2 12 x 49 Self-standing with Round Yes No PK 1000
883193
Description: 1.8 mL CRYOCHILLTM Vial, 2D Coded, Int. Thread, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
Compatible Cryobox: 883196
External Neck Diameter: NA
Internal Neck Diameter: 10.4 mm
Outer Body Diameter: 12.4 mm
Avg Wall Thickness: 1.0 mm
Height without Cap: 39.3 mm
Height with Cap: 48.9 mm
Closure Outer Diameter: 12.2 mm
Tube Weight: 1.27 g
Closure Weight: 0.65 g
Product Unit Weight: 1.92 g
Graduation Range: 0.5 mL – 1.8 mL
Graduation Interval: 0.1 mL
Brim Volume: 2.2 mL
Thread Type: Internal
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 1000 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523331

Internal 3.5 5.0 12.5 x 79 Self-standing with Round Yes No PK 500
523331
Description: 3.5 mL CRYOCHILLTM Vial, Int. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Internal Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: NA
Internal Neck Diameter: 10.4 mm
Outer Body Diameter: 12.4 mm
Avg Wall Thickness: 1.0 mm
Height without Cap: 68.3 mm
Height with Cap: 77.7 mm
Closure Outer Diameter: 12.2 mm
Tube Weight: 2.27 g
Closure Weight: 0.66 g
Product Unit Weight: 2.93 g
Graduation Range: 0.5 mL – 3.5 mL
Graduation Interval: 0.1 mL
Brim Volume: 5.0 mL
Thread Type: Internal
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 500 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.
523317

Internal 4.5 6.2 12.5 x 92 Self-standing with Round Yes No PK 500
523317
Description: 4.5 mL CRYOCHILLTM Vial, Int. Threaded, Self-Standing, PP, Gamma Sterile
Product Type: CRYOCHILLTM Vial Internal Threaded, Self-Standing
Product Material: Polypropylene (PP) / High-Density Polyethylene (HDPE)
Colour: Clear (Natural)
External Neck Diameter: NA
Internal Neck Diameter: 10.4 mm
Outer Body Diameter: 12.4 mm
Avg Wall Thickness: 1.0 mm
Height without Cap: 83.2 mm
Height with Cap: 92.4 mm
Closure Outer Diameter: 12.2 mm
Tube Weight: 2.74 g
Closure Weight: 0.66 g
Product Unit Weight: 3.40 g
Graduation Range: 0.5 mL – 4.5 mL
Graduation Interval: 0.1 mL
Brim Volume: 6.2 mL
Thread Type: Internal
Sterilization: Gamma Sterilized
Leak Test: Leak Proof
Temperature Range: -196°C to 121°C
Packing: 500 / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 9001 / 13485: 2016 quality requirements. Tubes meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR and Pyrogen.

Key Features:

  • Material conforming to USP Class VI.
  • Self-Standing.
  • Available with Internal & External threaded closure.
  • Gamma Sterilized.
  • Meet IATA requirements of withstanding evacuation to 95k Pascal without leaking.
  • Suitable for transport of diagnostic specimen.
  • Manufactured in ISO Class 8 cleanroom.
  • Free from detectable DNase, RNase & pyrogen.

Description

Key Features:

  • Material conforming to USP Class VI.
  • Self-Standing.
  • Available with Internal & External threaded closure.
  • Gamma Sterilized.
  • Meet IATA requirements of withstanding evacuation to 95k Pascal without leaking.
  • Suitable for transport of diagnostic specimen.
  • Manufactured in ISO Class 8 cleanroom.
  • Free from detectable DNase, RNase & pyrogen.

Related products

  • CRYOCHILL™ Cryovials, Round-Bottom, Sterile

    CRYOCHILL™ Cryovials Round-Bottom Sterile

    CRYOCHILL™ Cryovials, Round-Bottom, Sterile

    CRYOCHILL™ cryovials, round-bottom are available with both external and internal…

    Read more

    CRYOCHILL™ Cryovials Round-Bottom Sterile

    CRYOCHILL™ Cryovials, Round-Bottom, Sterile

    CRYOCHILL™ cryovials, round-bottom are available with both external and internal threaded designs. These cryovials, round-bottom are manufactured from USP Class VI compliant polypropylene (PP), while…

  • CRYOCHILL™ Wide Mouth Specimen Vial

    CRYOCHILL™ Labware

    CRYOCHILL™ Wide Mouth Specimen Vial

    CRYOCHILL™ Wide Mouth Specimen Vial are manufactured from virgin, USP…

    Read more

    CRYOCHILL™ Labware

    CRYOCHILL™ Wide Mouth Specimen Vial

    CRYOCHILL™ Wide Mouth Specimen Vial are manufactured from virgin, USP Class VI passed Polypropylene (PP) / High-density Polyethylene (HDPE). CRYOCHILL™ Wide Mouth Specimen Vial are…

  • CRYOCHILL™ cryovial, Star-Foot, Sterile

    CRYOCHILL™ cryovial Star-Foot Sterile

    CRYOCHILL™ cryovial, Star-Foot, Sterile

    Star-Foot CRYOCHILL™ cryovials are available with both external and internal…

    Read more

    CRYOCHILL™ cryovial Star-Foot Sterile

    CRYOCHILL™ cryovial, Star-Foot, Sterile

    Star-Foot CRYOCHILL™ cryovials are available with both external and internal threaded designs. These vials are made from USP Class VI compliant polypropylene (PP), while the…
