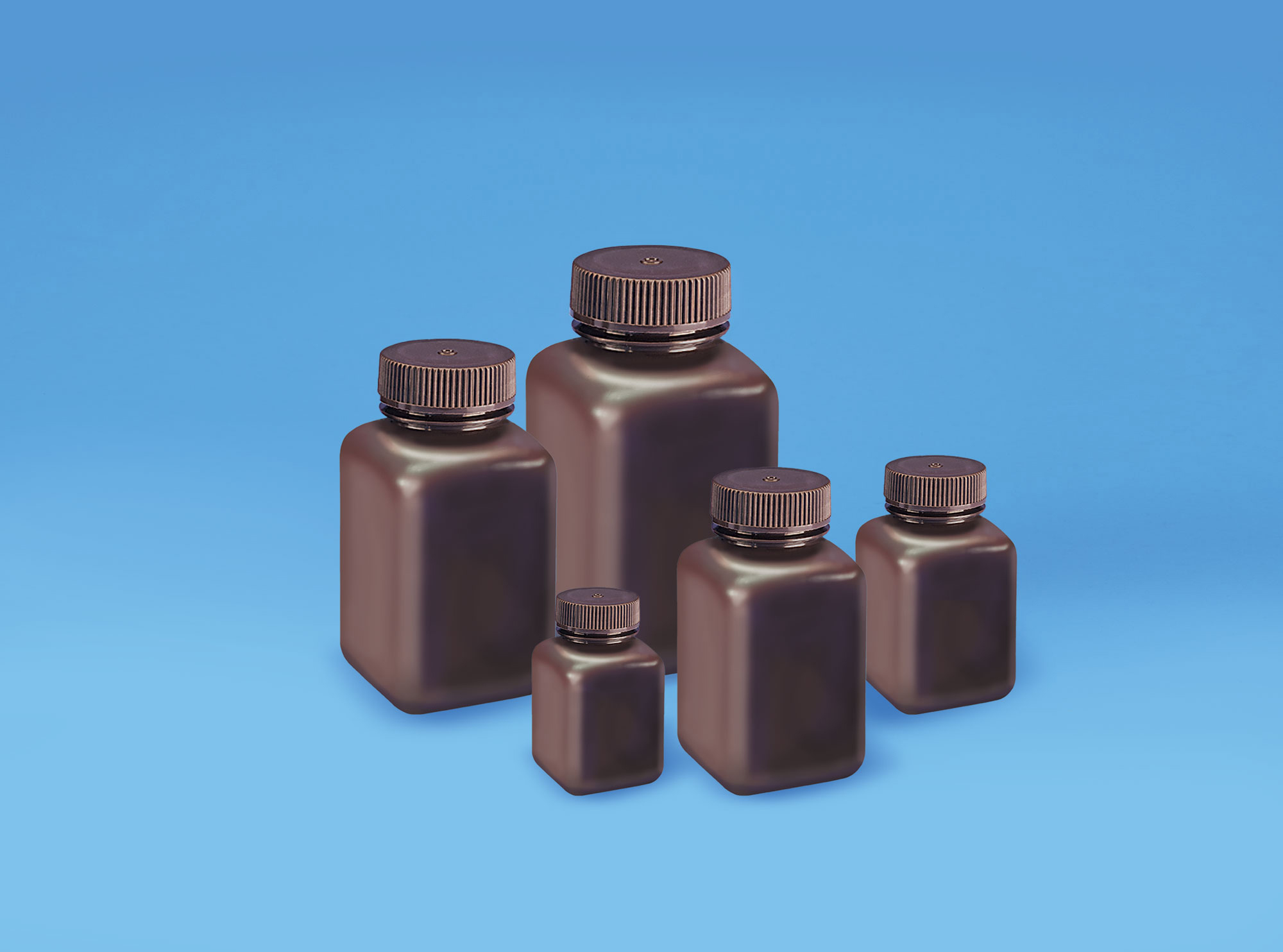

Wide Mouth Square Bottle, HDPE, Amber
Wide Mouth Square Bottle, HDPE, Amber - Image 2

Square bottles

Wide Mouth Square Bottle, HDPE, Amber

Wide mouth, square HDPE bottles are rigid, amber and leakproof. They have a space saving design, and are easy to fill and clean. The square design of these bottles is convenient for labelling. The opaque amber colour minimizes UV light transmission, protecting light-sensitive samples. These bottles provide a large labelling surface. They offer excellent chemical resistance to acids, alcohols and bases. These are ideal for storing and transporting various samples and are recommended for solid, semi-solid and viscous liquid materials. They come with liner less PP closures for sample protection. Medical and food grade material conforming to USP Class VI, for low leachable and extractables.

Certificates..
Catalog No. Technical Data Capacity Mouth Type Material (Bottle) Shape Closure Size (mm) Autoclavability Sterility Packing Details
585221

60 mL
(2.0 oz)		 Wide Mouth HDPE Square 28-415 mm No No PK 12, CS 12
Description: Wide Mouth Square Amber Bottle, HDPE with PP Amber Closure, 60 mL
Product Type: Wide Mouth, Square Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 15.6 in-lb to 21.7 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 70 mL
Screw Closure Size: 28-415
Inner Neck Diameter: 20.8 mm
Bottle Outer Diameter: 35.5 mm
Height w/out closure: 80.9 mm
Height with closure: 83.2 mm
No per Pack: 12
No per Case: 12
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
585222

175 mL
(6 oz)		 Wide Mouth HDPE Square 38-415 mm No No PK 12, CS 12
Description: Wide Mouth Square Amber Bottle, HDPE with PP Amber Closure, 175 mL
Product Type: Wide Mouth, Square Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 21.7 in-lb to 30.4 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 185 mL
Screw Closure Size: 38-415
Inner Neck Diameter: 28.5 mm
Bottle Outer Diameter: 50.9 mm
Height w/out closure: 100.5 mm
Height with closure: 103.4 mm
No per Pack: 12
No per Case: 12
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
585223

250 mL
(8 oz)		 Wide Mouth HDPE Square 43-415 mm No No PK 12, CS 12
Description: Wide Mouth Square Amber Bottle, HDPE with PP Amber Closure, 250 mL
Product Type: Wide Mouth, Square Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 27.8 in-lb to 38.2 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 295 mL
Screw Closure Size: 43-415
Inner Neck Diameter: 32.6 mm
Bottle Outer Diameter: 60.3 mm
Height w/out closure: 111.6 mm
Height with closure: 114.3 mm
No per Pack: 12
No per Case: 12
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
585224

500 mL
(17 oz)		 Wide Mouth HDPE Square 53-415 mm No No PK 12, CS 12
Description: Wide Mouth Square Amber Bottle, HDPE with PP Amber Closure, 500 mL
Product Type: Wide Mouth, Square Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 33 in-lb to 45.1 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 575 mL
Screw Closure Size: 53-415
Inner Neck Diameter: 43.7 mm
Bottle Outer Diameter: 72.8 mm
Height w/out closure: 141.5 mm
Height with closure: 144 mm
No per Pack: 12
No per Case: 12
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
585225

1000 mL
(34 oz)		 Wide Mouth HDPE Square 63-415 mm No No PK 6, CS 6
Description: Wide Mouth Square Amber Bottle, HDPE with PP Amber Closure, 1000 mL
Product Type: Wide Mouth, Square Bottle
Bottle Colour: Amber
Closure Colour: Amber
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 40 in-lb to 55.5 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 1150 mL
Screw Closure Size: 63-415
Inner Neck Diameter: 52.9 mm
Bottle Outer Diameter: 90.2 mm
Height w/out closure: 177 mm
Height with closure: 180.9 mm
No per Pack: 6
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI

  • Made of medical and food grade HDPE conforming to USP Class VI, for low leachable and extractables.
  • Wide mouth, square, rigid, and amber.
  • Leakproof.
  • Space saving design.
  • Easy to fill and clean.
  • Square design of these bottles is convenient for labelling.
  • The opaque amber colour minimizes UV light transmission, protecting light-sensitive samples.
  • Provides a large labelling surface.
  • Offers excellent chemical resistance to acids, alcohols and bases.
  • Comes with liner less PP closures for sample protection.
  • Ideal for storing and transporting various samples.
  • Recommended for solid, semi-solid and viscous liquid materials.

Catalog Number: 585221, 585222, 585223, 585224, 585225
