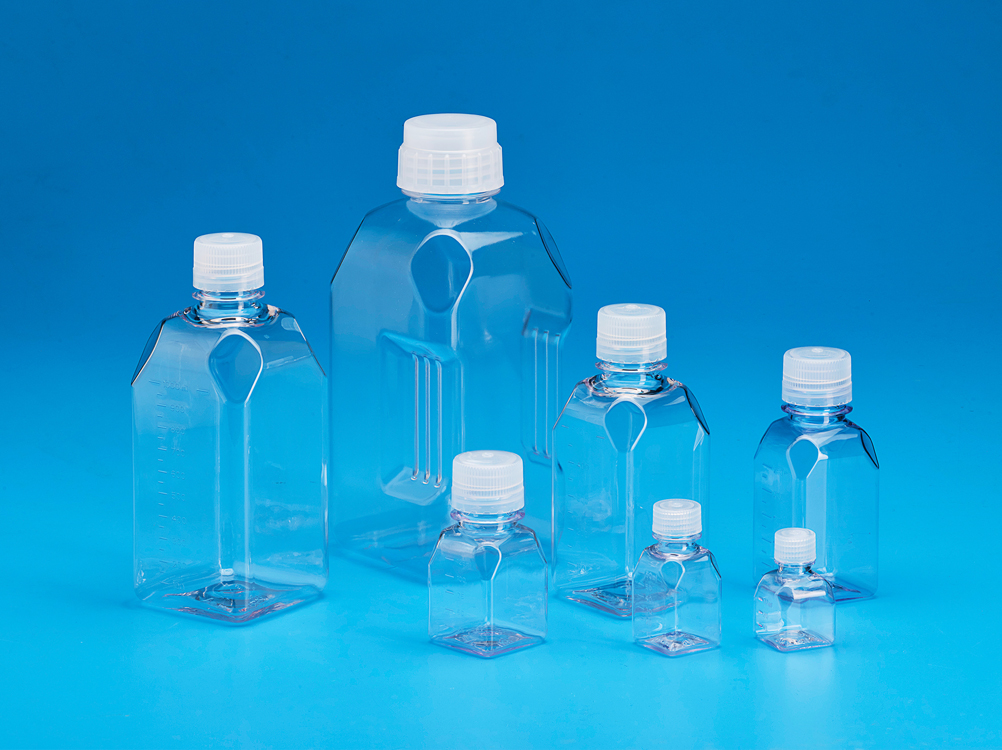

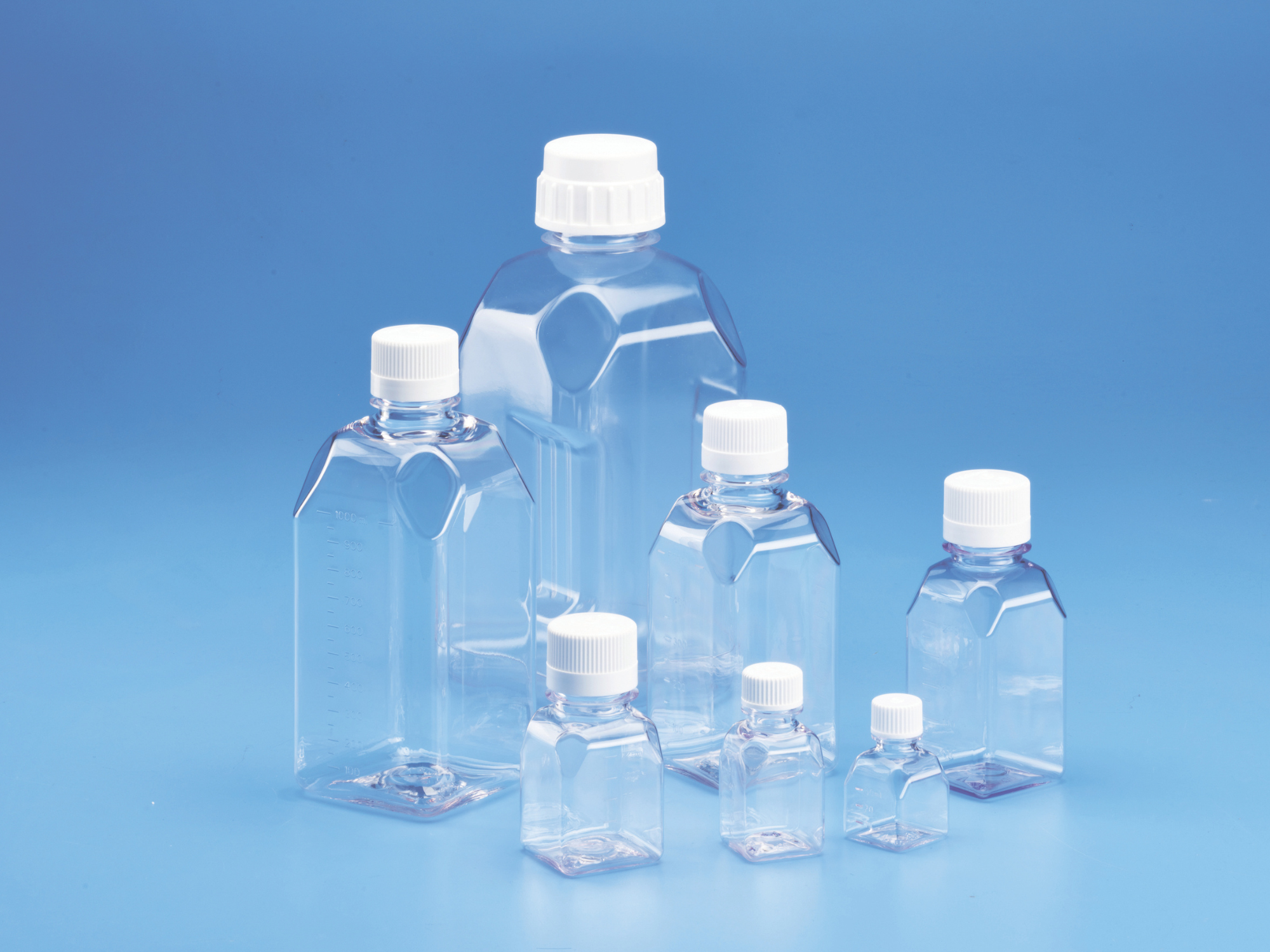

Sterile Square Graduated Media Bottle, PETG with white HDPE Closure
Sterile Square Graduated Media Bottle, PETG with white HDPE Closure - Image 2

Bottles, Bottles & Carboys, Media bottles, Sterile Square Graduated Media Bottle PETG with white HDPE Closure

Sterile Square Graduated Media Bottle, PETG with white HDPE Closure

These square, graduated, clear Bottles are made from USP Class VI-compliant, non-pyrogenic and non-cytotoxic Polyethylene Terephthalate Glycol (PETG) with a High-Density Polyethylene (HDPE) closure. Leakproof, Free of detectable pyrogens, RNase & DNase, non-cytotoxic. Amber Bottles meet USP light-resistant requirements. PETG bottles are gamma-sterile, packed in shrink-wrapped trays or individually packed having a heat-shrink band around the closure and neck that provides a tamper-evident seal.

Ideal for sampling, storage, and leak-proof shipment of API, bulk intermediates, pH-sensitive liquids, and culture media. Well-suited for prolonged storage of pH-sensitive liquids such as buffers. 2000 ml has moulded-in handgrips.

Note: Gamma indicator label on the bottle’s outer surface/customisation of packing, cap colour, etc is also available.

Certificates..
Catalog No. Technical Data Bottle Colour Capacity (mL) Closure Size (mm) Packing Quantity per Tray/Case
581410

Natural 30 20-415 Tray Packed 24/96
  581410
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 30 mL
Brim Volume: 48.3 mL
Thread Finish (mm): 20-415
Body Outer Dia: 38 mm x 38 mm
Height without closure: 62.3 mm
Height with closure: 64.6 mm
Product Weight: 13.7 g
Graduation Range: 10 mL – 30 mL
Graduation Interval: 10 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 24
No per Case: 96
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581430

Amber 30 20-415 Tray Packed 24/96
  581430

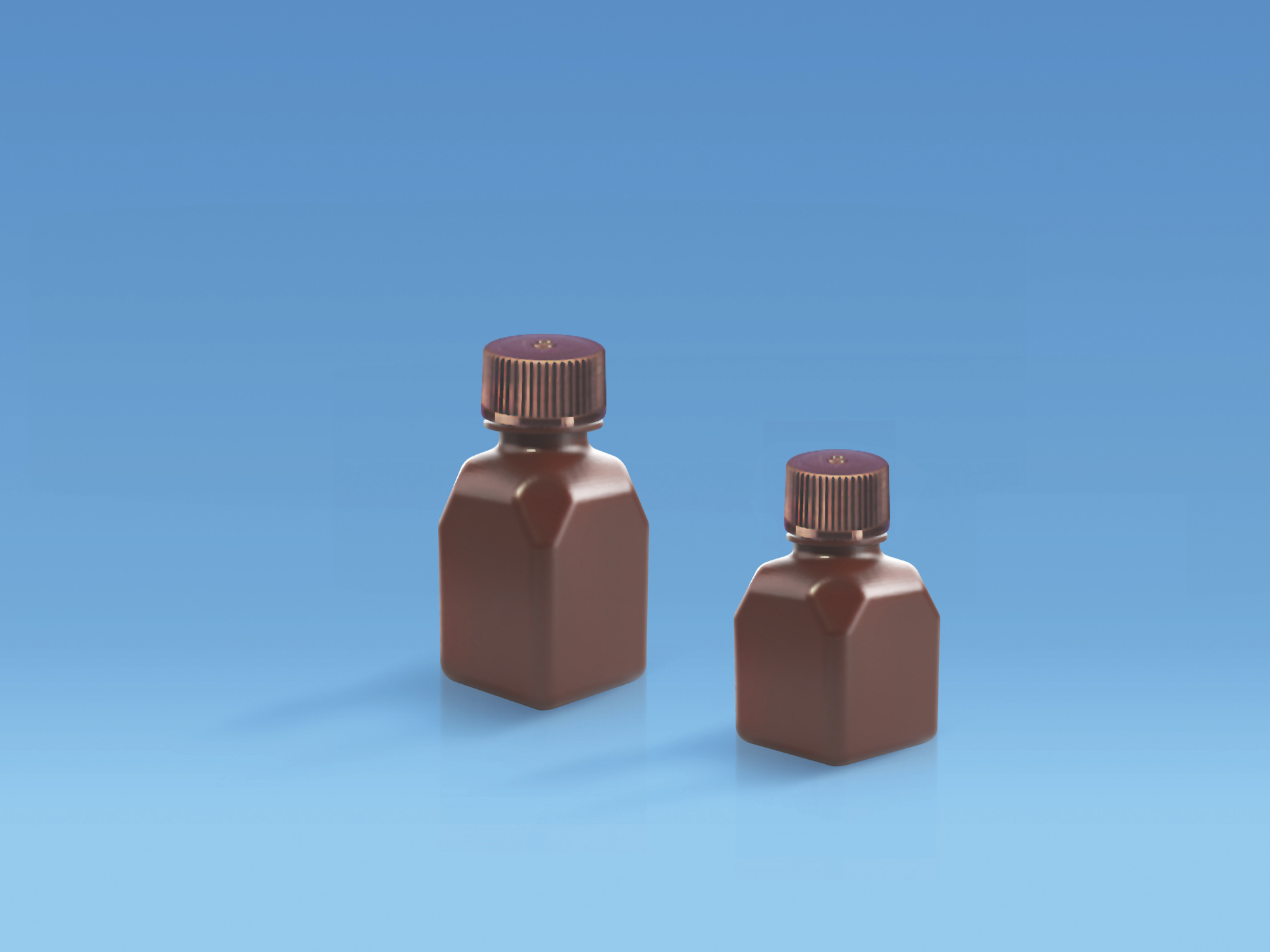

Description: Sterile Square Graduated Amber Media Bottle, PETG with Amber HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Colour: Amber
Closure Colour: Amber
Specifications: Same as 581410
No per Tray: 24
No per Case: 96
581440

Natural 30 20-415 Individually Packed 1/96
  581440
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581410
No per Bag: 1
No per Case: 96
581411

Natural 60 24-415 Tray Packed 24/96
  581411
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 60 mL
Brim Volume: 80.0 mL
Thread Finish (mm): 24-415
Body Outer Dia: 40.5 mm x 40.5 mm
Height without closure: 81 mm
Height with closure: 83.3 mm
Product Weight: 21.1 g
Graduation Range: 10-60 mL
Graduation Interval: 10 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 24
No per Case: 96
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581431

Amber 60 24-415 Tray Packed 24/96
  581431
Description: Sterile Square Graduated Amber Media Bottle, PETG with Amber HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Colour: Amber
Closure Colour: Amber
Specifications: Same as 581411
No per Tray: 24
No per Case: 96
581441

Natural 60 24-415 Individually Packed 1/96
  581441
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581411
No per Bag: 1
No per Case: 96
581412

Natural 125 38-430 Tray Packed 24/48
  581412
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: PETG Sterile Square Media Bottles with HDPE Closure, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 125 mL
Brim Volume: 176.5 mL
Thread Finish (mm): 38-430
Body Outer Dia: 53.5 mm x 53.5 mm
Height without closure: 105 mm
Height with closure: 110 mm
Product Weight: 51.15 g
Graduation Range: 25-125 mL
Graduation Interval: 25 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 24
No per Case: 48
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581432

Amber 125 38-430 Tray packed 24/96
  581432
Description: Sterile Square Graduated Amber Media Bottle, PETG with Amber HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Colour: Amber
Closure Colour: Amber
Specifications: Same as 581412
No per Tray: 24
No per Case: 46
581442

Natural 125 38-430 Individually Packed 1/48
  581442
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581412
No per Bag: 1
No per Case: 48
581413

Natural 250 38-430 Tray Packed 24/48
  581413
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure, Natural
Product Type:  Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 250 mL
Brim Volume: 340 mL
Thread finish (mm): 38-430
Body Outer Dia: 60 mm x 60 mm
Height without closure: 142 mm
Height with closure: 147 mm
Product Weight: 61.9 g
Graduation Range: 25-250 mL
Graduation Interval: 25 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 24
No per Case: 48
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581443

Natural 250 38-430 Individually Packed 1/48
  581443
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581413
No per Bag: 1
No per Case: 48
581414

Natural 500 38-430 Tray Packed 12/24
  581414
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type:  Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 500 mL
Brim Volume: 615 mL
Thread Finish (mm): 38-430
Body Outer Dia: 74.5 mm x 74.5 mm
Height without closure: 171.8 mm
Height with closure: 176.9 mm
Product Weight: 115.6 g
Graduation Range: 50-500 mL
Graduation Interval: 50 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 12
No per Case: 24
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581444

Natural 500 38-430 Individually Packed 1/24
  581444
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581414
No per Bag: 1
No per Case: 24
581415

Natural 1000 38-430 Tray Packed 12/24
  581415
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type:  Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 1000 mL
Brim Volume: 1232 mL
Thread Finish (mm): 38-430
Body Outer Dia: 92 mm x 92 mm
Height without closure: 215 mm
Height with closure: 220 mm
Product Weight: 182 g
Graduation Range: 100-1000 mL
Graduation Interval: 50 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 12
No per Case: 24
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581445

Natural 1000 38-430 Individually Packed 1/24
  581445
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581415
No per Bag: 1
No per Case: 24
581416

Natural 2000 53B Tray Packed 6/12
  581416
Description: Sterile Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Tray Pack
Bottle Material: Virgin Polyethylene Terephthalate Glycol (PETG)
Closure Material: Virgin High Density Polyethylene (HDPE)
Bottle Colour: Clear (Natural)
Closure Colour: White
Nominal Capacity: 2000 mL
Brim Volume: 2500 mL
Thread Finish (mm): 53B
Body Outer Dia: 117 mm x 117 mm
Height without closure: 268 mm
Height with closure: 273 mm
Product Weight: 348 g
Graduation Range: 200-2000 mL
Graduation Interval: 100 mL
Graduation Type: Moulded
Volume Accuracy: ± 5% of Nominal Volume
Sterilization: Gamma Sterile
Cytotoxicity: Non-Cytotoxic
Leak Test: Leak Proof
Temperature Range: -40˚C to 70˚C
Autoclavability: Non-Autoclavable
No per Tray: 6
No per Case: 12
Compliance: Manufactured inside a Class 7 cleanroom in compliance with ISO 9001/13485 quality requirements. Bottles meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen. Non-Cytotoxic and Animal-derived component free.
581446

Natural 2000 53B Individually Packed 1/12
  581446
Description: Sterile, Individually Packed, Square Graduated Media Bottles, PETG with white HDPE Closure
Product Type: Sterile Square Media Bottles, Individually Packed
Specifications: Same as 581416
No per Bag: 1
No per Case: 12

Key Features:

  • Material conforming to USP Class VI.
  • Made from virgin, Drug Master File-listed PETG with HDPE closure.
  • Available in Tray Pack and Individual Pack.
  • Amber Bottles meet USP light-resistant requirements.
  • Lightweight, break-resistant square and graduated.
  • Leakproof.
  • Withstands -40˚C to 70˚C.
  • Certified non-cytotoxic, non-pyrogenic and nuclease-free.
  • Chemically compatible with weak acids, alcohols and aliphatic hydrocarbons.

Description

Key Features:

  • Material conforming to USP Class VI.
  • Made from virgin, Drug Master File-listed PETG with HDPE closure.
  • Available in Tray Pack and Individual Pack.
  • Amber Bottles meet USP light-resistant requirements.
  • Lightweight, break-resistant square and graduated.
  • Leakproof.
  • Withstands -40˚C to 70˚C.
  • Certified non-cytotoxic, non-pyrogenic and nuclease-free.
  • Chemically compatible with weak acids, alcohols and aliphatic hydrocarbons.
