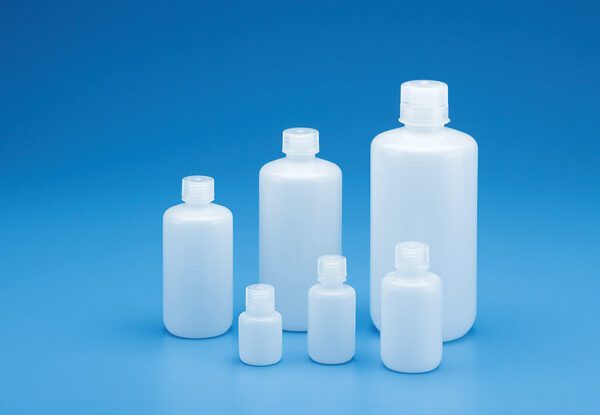

Narrow Mouth Bottles, HDPE, with PP closure, Lab Pack

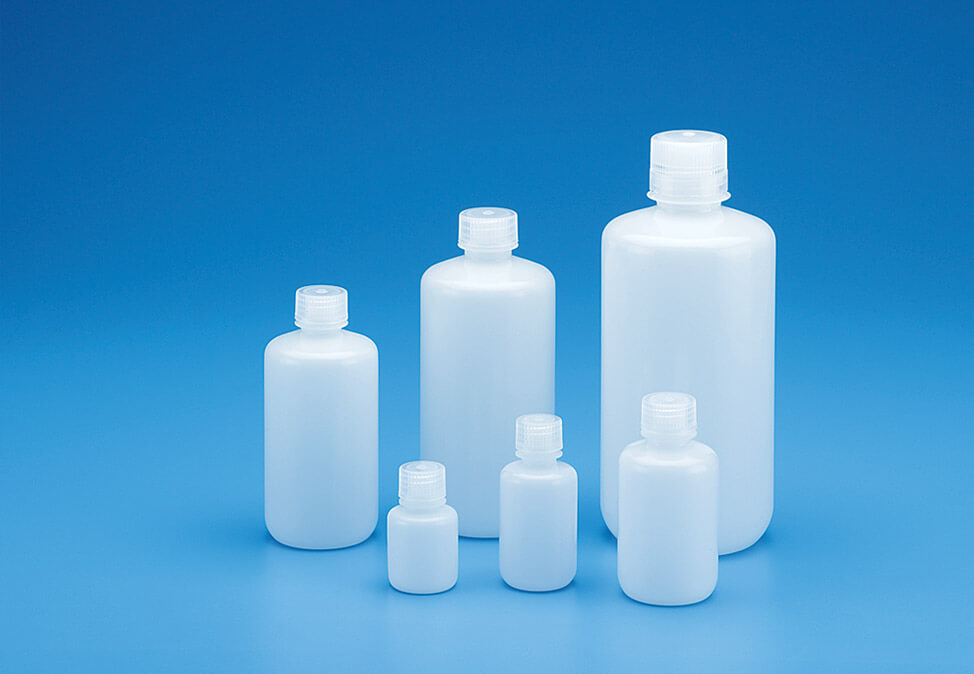

Narrow Mouth Bottles, HDPE, with PP closure, Lab Pack - Image 2

Narrow Mouth Round

Narrow Mouth Bottles, HDPE, with PP closure, Lab Pack

Material conforming to USP Class VI, low in trace elements. These bottles are rigid, translucent (natural), and leakproof, featuring an internal thread design, providing enhanced sealing and increased security. These translucent bottles offer excellent chemical resistance. These bottles are suitable for lighter-duty, general purpose applications. They are used for storage, and shipping purposes. They exhibit superior resistance to chemicals and provide good clarity for viewing contents. They come with Polypropylene closures.

These bottles are ideal for lab applications requiring excellent chemical resistance. They are compatible with a wide variety of reagents and are good for freezer storage up to -100°C. They are used for storing chemicals and standards, collecting and storing distilled water. Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.

The following bottles come in Lab packing option.

Certificates..
Catalog No. Technical Data Capacity Mouth Type Material (Bottle) Shape Closure Size (mm) Autoclavability Sterility Packing Details
583170

4 mL
(0.1 oz)		 Narrow HDPE Round 13-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 4 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 5.2 in-lb to 6.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 4.3 mL
Screw Closure Size: 13-415 mm
Inner Neck Diameter: 8.3 mm
Bottle Outer Diameter: 15.8 mm
Height w/out closure: 38.6 mm
Height with closure: 41 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583171

5 mL
(0.2 oz)		 Narrow HDPE Round 13-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 5 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 5.2 in-lb to 6.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 6 mL
Screw Closure Size: 13-415 mm
Inner Neck Diameter: 8.2 mm
Bottle Outer Diameter: 17.8 mm
Height w/out closure: 39.8 mm
Height with closure: 42 mm
No per Pack: 12
No per Case: 72
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583180

8 mL
(0.3 oz)		 Narrow HDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 8 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 11 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.2 mm
Bottle Outer Diameter: 25 mm
Height w/out closure: 42.3 mm
Height with closure: 45.5 mm
No per Pack: 12
No per Case: 72
Compliance:  Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583190

15 mL
(0.5 oz)		 Narrow HDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 15 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 16.8 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.2 mm
Bottle Outer Diameter: 24.7 mm
Height w/out closure: 55.5 mm
Height with closure: 58.4 mm
No per Pack: 12
No per Case: 72
Compliance:   Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583191

20 mL
(0.7 oz)		 Narrow HDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 20 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 22 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13 mm
Bottle Outer Diameter: 27.1 mm
Height w/out closure: 58.1 mm
Height with closure: 61.4 mm
No per Pack: 12
No per Case: 72
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583100

30 mL
(1.0 oz)		 Narrow HDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 30 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 35 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.5 mm
Bottle Outer Diameter: 36.3 mm
Height w/out closure: 59.5 mm
Height with closure: 62.5 mm
No per Pack: 12
No per Case: 72
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583110

60 mL
(2.0 oz)		 Narrow HDPE Round 20-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 60 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 9.5 in-lb to 13.9 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 64 mL
Screw Closure Size: 20-415 mm
Inner Neck Diameter: 13.5 mm
Bottle Outer Diameter: 39.8 mm
Height w/out closure: 82 mm
Height with closure: 83.9 mm
No per Pack: 12
No per Case: 72
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583120

125 mL
(4.2 oz)		 Narrow HDPE Round 24-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 125 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 138 mL
Screw Closure Size: 24-415 mm
Inner Neck Diameter: 17.7 mm
Bottle Outer Diameter: 51 mm
Height w/out closure: 98.2 mm
Height with closure: 100 mm
No per Pack: 12
No per Case: 72
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583130

250 mL
(8 oz)		 Narrow HDPE Round 24-415 mm No No PK 12, CS 72
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 250 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 11.3 in-lb to 16.5 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 290 mL
Screw Closure Size: 24-415 mm
Inner Neck Diameter: 17.5 mm
Bottle Outer Diameter: 60.8 mm
Height w/out closure: 130.9 mm
Height with closure: 133.5 mm
No per Pack: 12
No per Case: 72
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583140

500 mL
(17 oz)		 Narrow HDPE Round 28-415 mm No No PK 12, CS 48
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 500 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 15.6 in-lb to 21.7 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 540 mL
Screw Closure Size: 28-415 mm
Inner Neck Diameter: 21.1 mm
Bottle Outer Diameter: 73 mm
Height w/out closure: 168 mm
Height with closure: 170.5 mm
No per Pack: 12
No per Case: 48
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583150

1000 mL
(34 oz)		 Narrow HDPE Round 38-430 mm No No PK 6, CS 24
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 1000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 1100 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 27.8 mm
Bottle Outer Diameter: 93.1 mm
Height w/out closure: 213 mm
Height with closure: 219 mm
No per Pack: 6
No per Case: 24
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583160

2000 mL
(68 oz)		 Narrow HDPE Round 38-430 mm No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 2000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 2082 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 27 mm
Bottle Outer Diameter: 119 mm
Height w/out closure: 245 mm
Height with closure: 250 mm
No per Pack: 6
No per Case: 6
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI


583173

4000 mL
(135 oz)		 Narrow HDPE Round 38-430 mm No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 4000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 26.9 in-lb to 33 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 4360 mL
Screw Closure Size: 38-430 mm
Inner Neck Diameter: 27 mm
Bottle Outer Diameter: 153 mm
Height w/out closure: 330 mm
Height with closure: 333 mm
No per Pack: 6
No per Case: 6
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
583174

8000 mL
(271 oz)		 Narrow HDPE Round 53B No No PK 6, CS 6
Description: Narrow Mouth, Round Bottle, HDPE with PP Closure, 8000 mL
Product Type: Narrow Mouth, Round Bottle
Bottle Colour: Translucent (Natural)
Closure Colour Translucent (Natural)
Bottle Material: High-density polyethylene
Closure Material: Polypropylene
Closure Liner: Unlined
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof:  Yes, Leak proof with 37.3 in-lb to 52 in-lb torque
Graduations: Non graduated
Sterility: Non-sterile
Approx. Brim Capacity: 8500 mL
Screw Closure Size: 53B
Inner Neck Diameter: 39.1 mm
Bottle Outer Diameter: 195 mm
Height w/out closure: 408 mm
Height with closure: 420 mm
No per Pack: 6
No per Case: 6
Compliance:    Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI

  • Material conforming to USP Class VI.
  • Low in trace elements.
  • Rigid, translucent (natural), and Leakproof.
  • Excellent chemical resistance to most acids, bases and alcohols.
  • Compatible with a wide variety of reagents.
  • Good for freezer storage up to -100°C.
  • Provides excellent clarity for viewing contents.
  • Ideal for lab applications requiring excellent chemical resistance.
  • Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.
  • Comes in Lab Packing option.

Catalog Number: 583170, 583171, 583180, 583190, 583191, 583100, 583110, 583120, 583130, 583140, 583150, 583160, 583173, 583174

Schematics & Diagrams

Product Information

Description

  • Material conforming to USP Class VI.
  • Low in trace elements.
  • Rigid, translucent (natural), and Leakproof.
  • Excellent chemical resistance to most acids, bases and alcohols.
  • Compatible with a wide variety of reagents.
  • Good for freezer storage up to -100°C.
  • Provides excellent clarity for viewing contents.
  • Ideal for lab applications requiring excellent chemical resistance.
  • Large narrow mouth bottles have built in shoulder loop for attaching an identification tag.
  • Comes in Lab Packing option.

Catalog Number: 583170, 583171, 583180, 583190, 583191, 583100, 583110, 583120, 583130, 583140, 583150, 583160, 583173, 583174

Additional information

Color

Material

Mouth

Sterility

Related products
