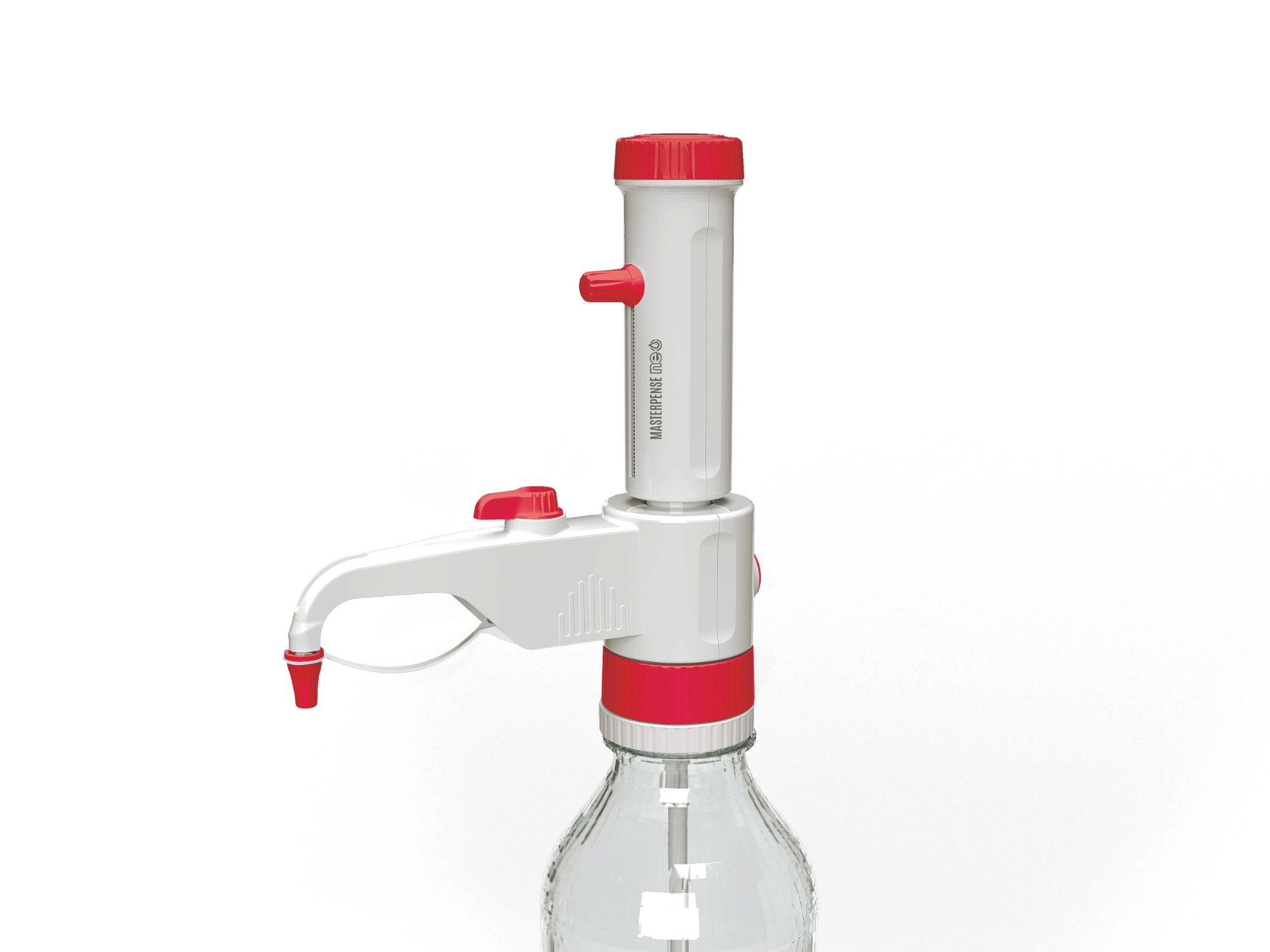

MASTERPENSE NEO Bottle Top Dispenser

Bottle Top Dispenser, Liquid Handling Reusables, MASTERPENSE NEO Bottle Top Dispenser

MASTERPENSE NEO Bottle Top Dispenser

Bottle Top Dispenser is ergonomically designed with permanently engraved scale markings for long-lasting readability. It features a springless valve that ensures smooth dispensing, along with an innovative recirculation within a closed system, minimizing reagent waste caused by air bubbles. The dispenser offers precise volume adjustment through a position-lock mechanism and includes an optional air vent cap that can accommodate a 0.2 µm PTFE microfilter, providing enhanced protection against contamination during liquid displacement. A threaded closure on the delivery tube helps prevent accidental discharge, while the unit is fully autoclavable at 121˚C for safe sterilization. Additionally, the device can be rotated 360˚ on the bottle, ensuring convenient and flexible operation.

Certificates..
Code Technical Data Capacity (mL) Graduation (mL) Thread Adapter Packing
BTD-M002

0.25 – 2.5 0.05 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M002
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material for Outer Body and plunger: Polypropylene (PP)
Material for Handle and Cap: Polypropylene (PP)
Material for Valves, valve seats & Delivery chamber: PFA / Grade 3.3 Borosilicate glass
Material for Recirculation cap: Polytetrafluoroethylene (PTFE)
Material for Tubing and fittings: Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 0.25 – 2.5
Volume range (mL): 0.25 – 100
Graduation (mL): 0.05
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1
BTD-M005

0.5 – 5.0 0.10 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M005
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material (Outer Body and plunger): Polypropylene (PP)
Material (Handle and Cap): Polypropylene (PP)
Material (Valves, valve seats & Delivery chamber): PFA / Grade 3.3 Borosilicate glass
Material (Recirculation cap): Polytetrafluoroethylene (PTFE)
Material (Tubing and fittings): Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 0.5 – 5.0
Volume range (mL): 0.25 – 100
Graduation (mL): 0.10
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1
BTD-M010

1.0 – 10.0 0.20 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M010
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material (Outer Body and plunger): Polypropylene (PP)
Material (Handle and Cap): Polypropylene (PP)
Material (Valves, valve seats & Delivery chamber): PFA / Grade 3.3 Borosilicate glass
Material (Recirculation cap): Polytetrafluoroethylene (PTFE)
Material (Tubing and fittings): Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 1.0 – 10.0
Volume range (mL): 0.25 – 100
Graduation (mL): 0.20
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1
BTD-M030

2.5 – 30.0 0.50 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M030
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material (Outer Body and plunger): Polypropylene (PP)
Material (Handle and Cap): Polypropylene (PP)
Material (Valves, valve seats & Delivery chamber): PFA / Grade 3.3 Borosilicate glass
Material (Recirculation cap): Polytetrafluoroethylene (PTFE)
Material (Tubing and fittings): Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 2.5 – 30.0
Volume range (mL): 0.25 – 100
Graduation (mL): 0.50
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1
BTD-M060

5.0 – 60.0 1.00 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M060
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material (Outer Body and plunger): Polypropylene (PP)
Material (Handle and Cap): Polypropylene (PP)
Material (Valves, valve seats & Delivery chamber): PFA / Grade 3.3 Borosilicate glass
Material (Recirculation cap): Polytetrafluoroethylene (PTFE)
Material (Tubing and fittings): Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 5.0 – 60.0
Volume range (mL): 0.25 – 100
Graduation (mL): 1.00
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1
BTD-M100

10.0 – 100.0 2.00 GL45 GL 25-26,28,32 GL 32-33,38,40 PK 1
BTD-M100
Description: MASTERPENSE NEO Bottle Top Dispenser
Product Type: Bottle Top Dispenser
Material (Outer Body and plunger): Polypropylene (PP)
Material (Handle and Cap): Polypropylene (PP)
Material (Valves, valve seats & Delivery chamber): PFA / Grade 3.3 Borosilicate glass
Material (Recirculation cap): Polytetrafluoroethylene (PTFE)
Material (Tubing and fittings): Fluorinated Ethylene Propylene (FEP)
Capacity (mL): 10.0 – 100.0
Volume range (mL): 0.25 – 100
Graduation (mL): 2.00
Thread: GL 45
Adapter: GL 25-26, 28, 32

GL 32-33, 38, 40
Autoclave Test: Autoclavable
Packing: PK 1

Key Features:

  • Permanently engraved scale marking
  • Springless valve for unhindered dispensing
  • Innovative recirculation valve allows for recirculation within the closed system to avoid reagent waste due to air bubbles
  • Precise volume adjustment with position-lock mechanism
  • Threaded closure design on delivery tube to avoid accidental discharge
  • Autoclavable at 121˚C
  • Device can be rotated on bottle by 360˚
  • Easy maintenance

Brochures/Flyers

Masterpense NEO BTD PSS

User Guides

BTD Manual

Description

Key Features:

  • Permanently engraved scale marking
  • Springless valve for unhindered dispensing
  • Innovative recirculation valve allows for recirculation within the closed system to avoid reagent waste due to air bubbles
  • Precise volume adjustment with position-lock mechanism
  • Threaded closure design on delivery tube to avoid accidental discharge
  • Autoclavable at 121˚C
  • Device can be rotated on bottle by 360˚
  • Easy maintenance
