PP Storage Plates

KingFisherTM Plates, PP

KingFisherTM Style Plates, PP: These plates are made from virgin, USP Class VI passed low-binding Polypropylene (PP) to ensure complete sample recovery. Available in a square-well configuration with a conical V-bottom shape. They are used in an automated magnetic-bead-based nucleic acid extraction process. The KingfisherTM style bottom enhances sample preparation and purification, ensuring high yields in Nucleic acid extraction. Compatible with most KingfisherTM automated Nucleic acid purification instruments like Apex, Presto, Flex and other international brands.

Certificates..
Catalog No Technical Data Plate Format Well Volume Height Well Shape Colour Sterility Autoclavability Packing details

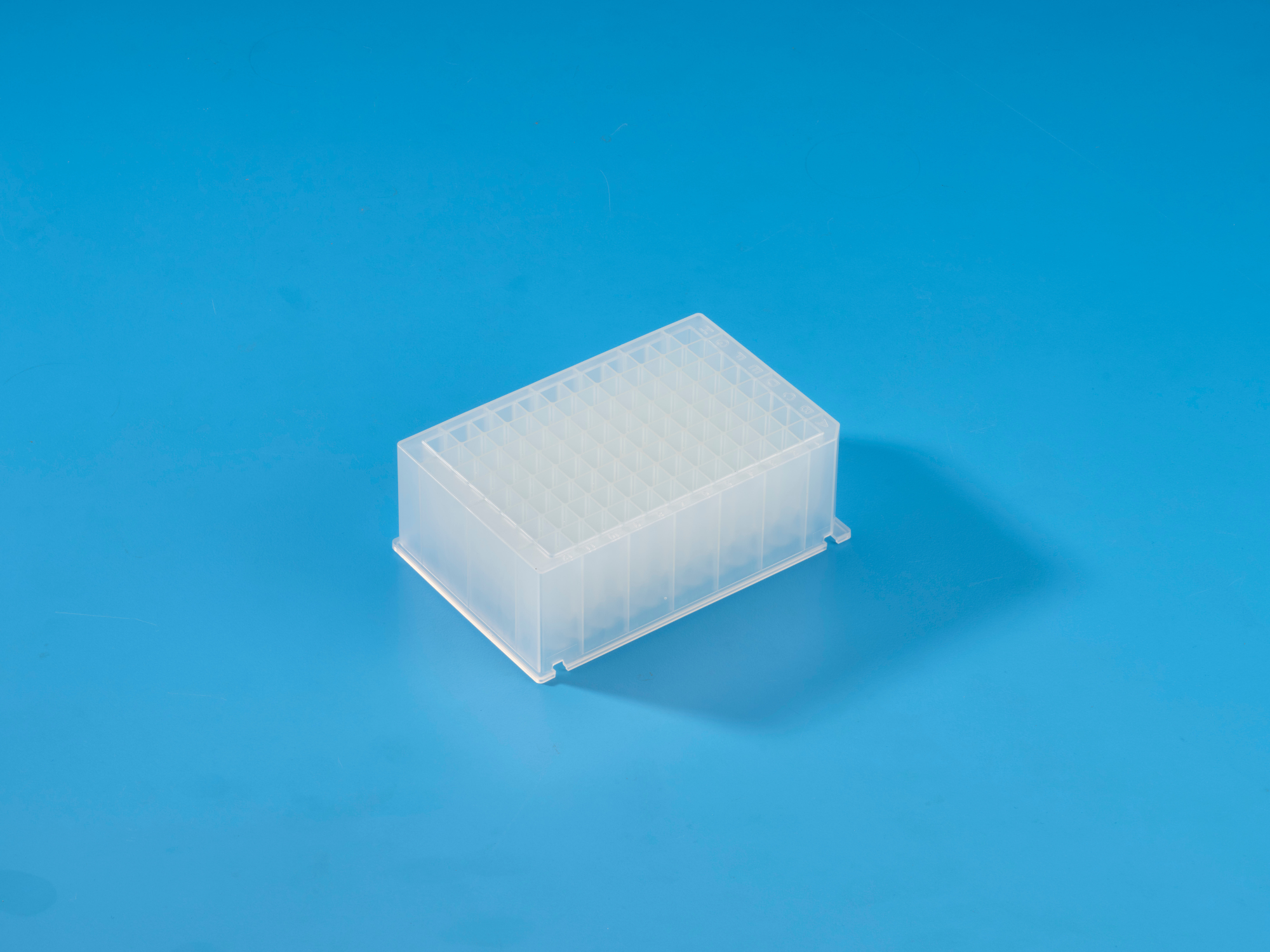

615020

96-Well 2.0 mL 44 mm Square, conical- bottom Natural No Yes PK 5, CS 50
615020
Description: 96-Well Deep Well Microplate KingFisherTM Style Plate, PP, 2.0 mL, with Conical-bottom, Natural
Product Type: Polypropylene KingFisherTM Style Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Conical-Bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.0 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Well Neck ID: 8.2 mm x 8.2 mm
Product Weight: 94.5 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.

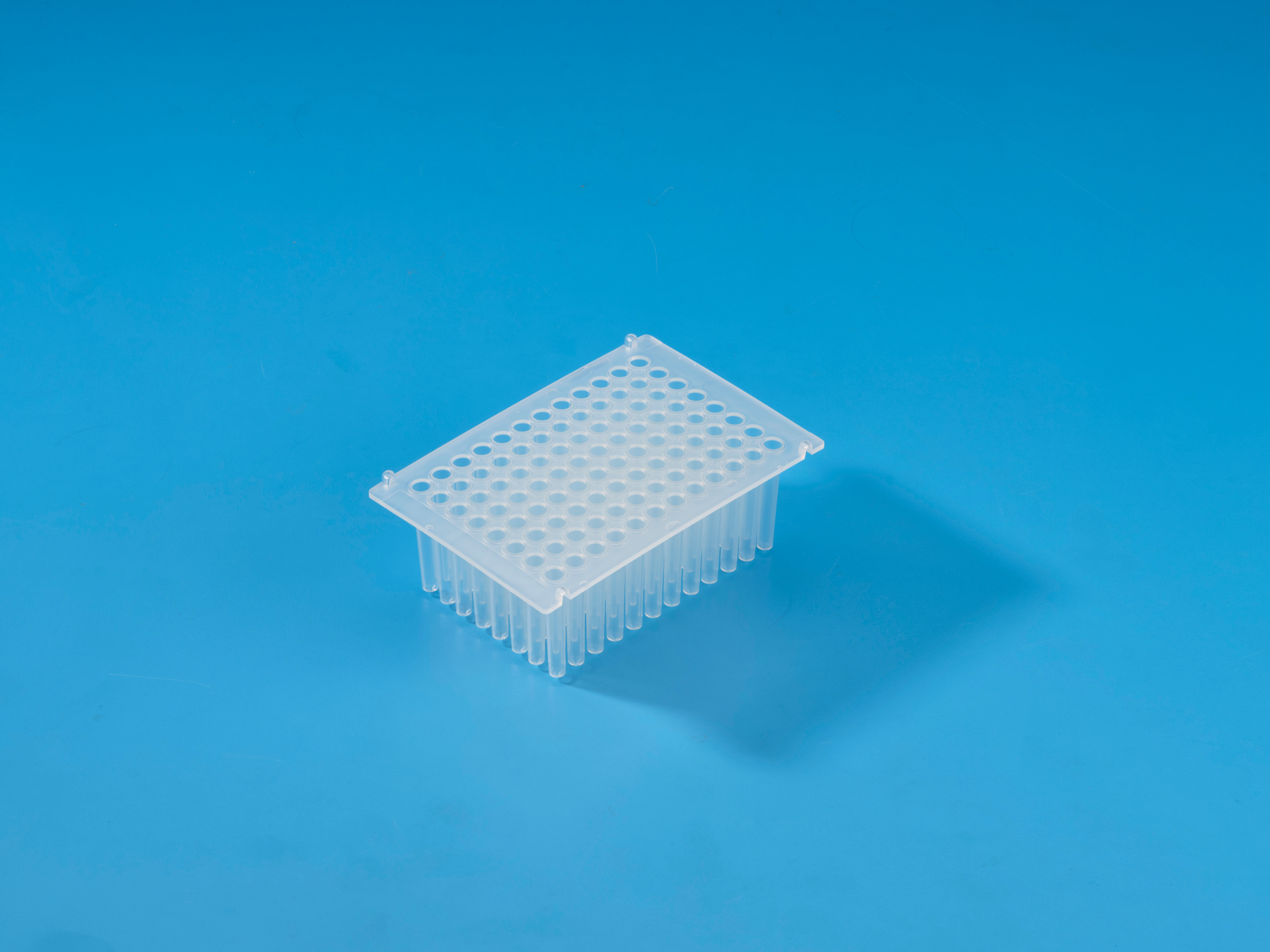

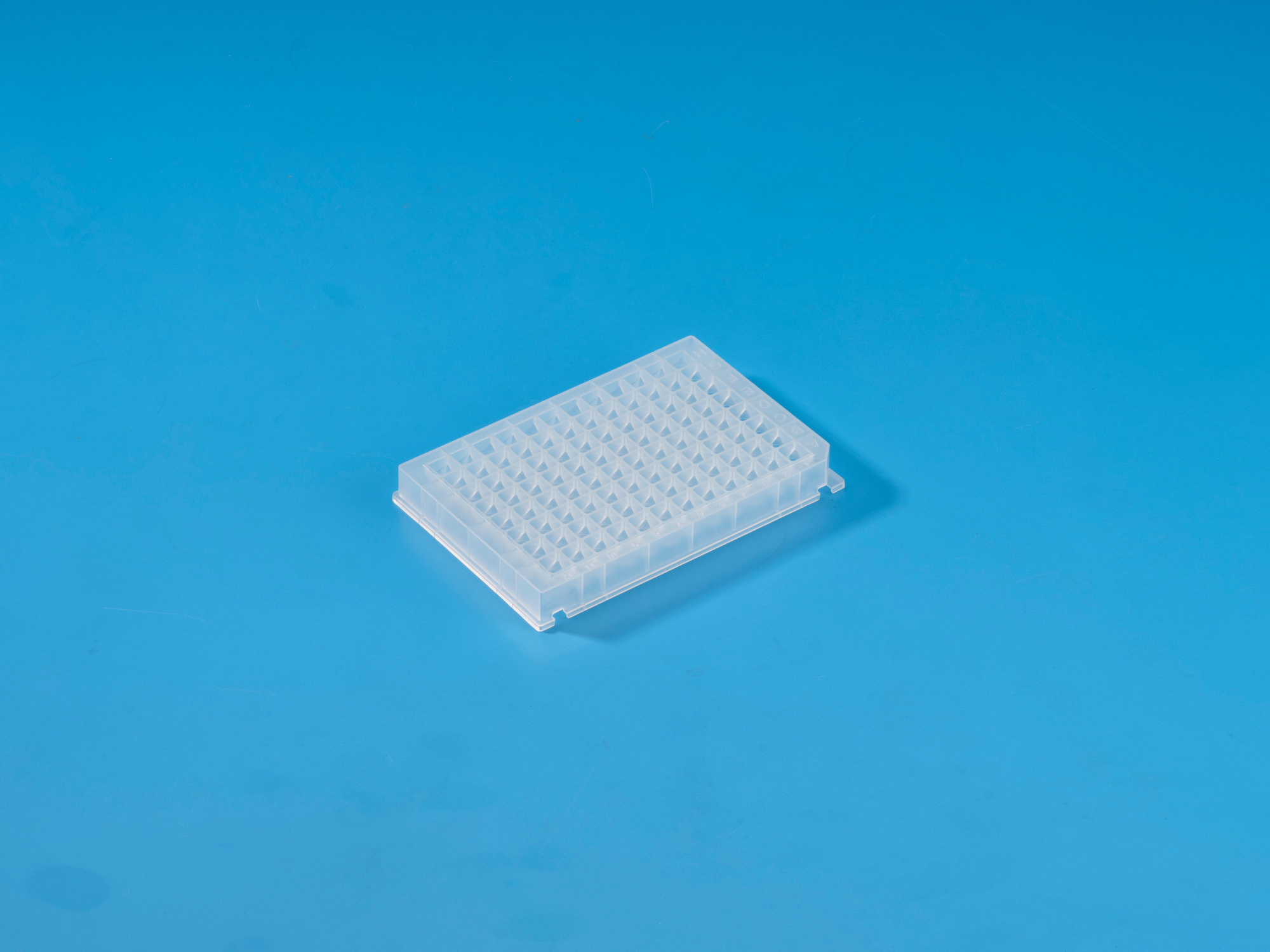

615010

96-Well Microplates 200 µL 14.5 mm Square, conical- bottom Natural No Yes PK 5, CS 50
615010
Description: 96-Well Square Well Microplate KingFisherTM Style Plate, PP, 200 µL, with Conical-bottom, Natural
Product Type: Polypropylene KingFisherTM Style Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Conical-Bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 200 µL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Well Neck ID: 7.75 mm x 7.75 mm
Product Weight: 27.5 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85 mm (as per ANSI/SLAS Standard)
Height: 14.5 mm
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
615030

96 Tip-Comb - 43 mm Round, V-bottom Natural No Yes PK 10, CS 100
615030
Description: 96-Tip Comb for Deep Well magnets KingFisherTM Style, PP, with V-bottom, Natural
Product Type: Polypropylene KingFisherTM Style Tip Comb
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96 Comb
Array: Not Available
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Comb
Well Bottom Shape: V-Bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: Not Available
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Well Neck ID: 5.85
Product Weight: 52.3 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85 mm (as per ANSI/SLAS Standard)
Total Height: 47.7 mm
Comb Height: 43 mm
Packing Type: 10 Plates / Bag
No per Case: 100
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.

Key Features:

  • Material conforming to USP Class VI.
  • Plates are designed according to the ANSI/SLAS format.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Manufacture in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Wells are labelled alphanumerically.
  • Withstands -80˚ C to 120˚ C.
  • Available in non-sterile variant. Sterile variant can be made upon request.

*KingFisher is the registered Trademark of Thermo Fisher Group*

Description

Key Features:

  • Material conforming to USP Class VI.
  • Plates are designed according to the ANSI/SLAS format.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Manufacture in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Wells are labelled alphanumerically.
  • Withstands -80˚ C to 120˚ C.
  • Available in non-sterile variant. Sterile variant can be made upon request.

*KingFisher is the registered Trademark of Thermo Fisher Group*
