PP Storage Plates

High Volume Deep-Well Plates, PP

High-Volume Deep-Well Plates, PP: These plates are also known as reservoir plates, made from virgin, USP Class VI passed low-binding Polypropylene (PP) to ensure complete sample recovery. Available in rectangular and square well configurations with Pyramid and U-bottom shapes. Wells with a U-bottom enhance mixing, while Pyramid-bottom wells facilitate optimal sample recovery. These plates are compatible with most multichannel pipettes and automated Liquid-handling equipment. They are used for high-throughput screening, sample collection, processing, storage and assays across genomics, proteomics, storing biomolecules, compounds and patient samples.

Certificates..
Catalog No Technical Data Plate Format Well Volume (mL) Height (mm) Well Shape Plate Colour Compatible Sealing Mat Sterility Packing details

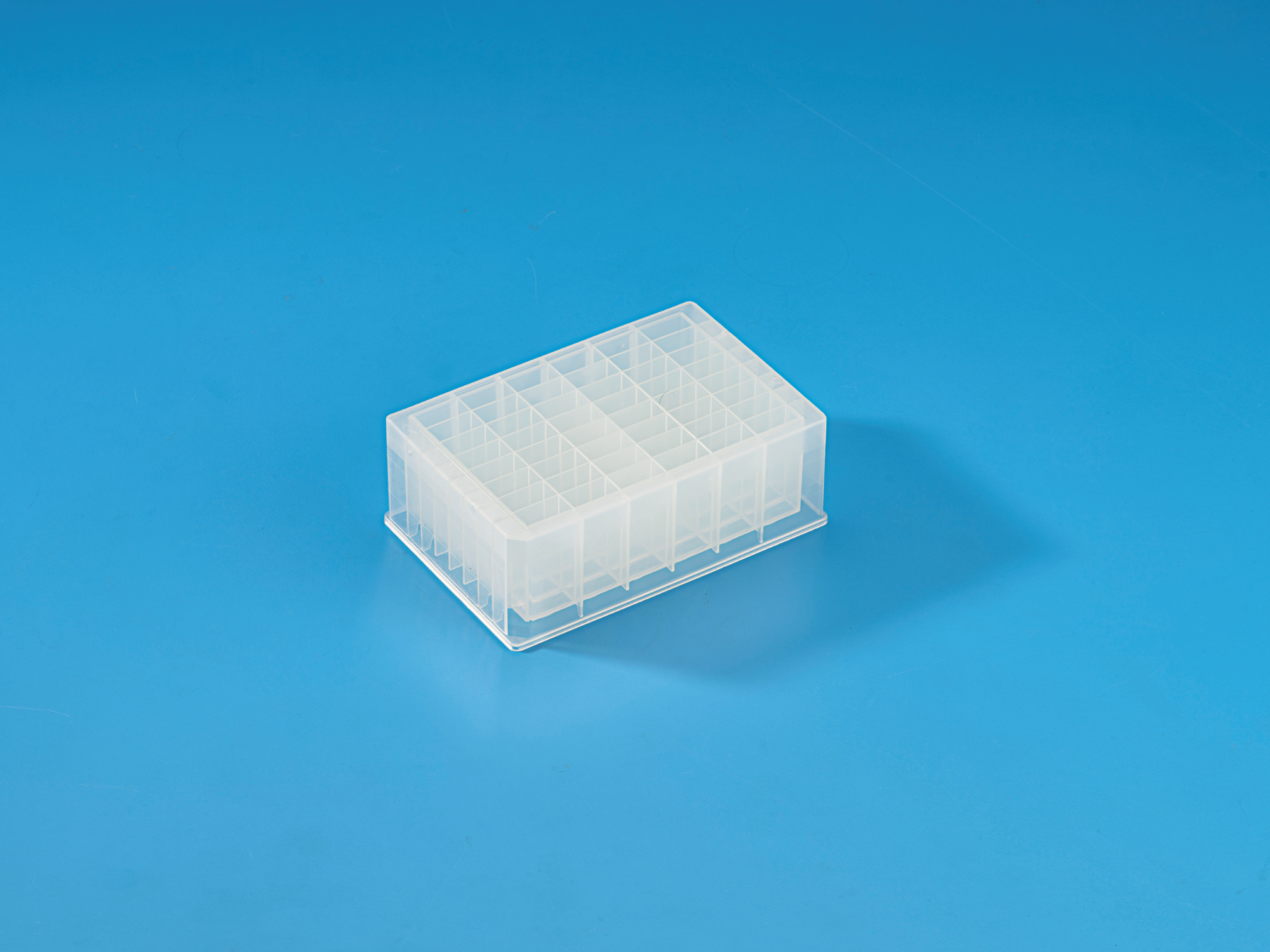

510080

48-well 5 44 Rectangular, Pyramid-bottom Natural 510174 No PK 5, CS 50
510080
Description: 48-well High-Volume Deep Well Plate, PP, 5 mL, Rectangular well with Pyramid-bottom, Natural
Product Type: Polypropylene High-Volume Deep Well Plate
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 48-well
Array: 8 x 6
Alphanumeric: Molded
Notched Corner: Yes, H1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Rectangular Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 5 mL
Sterility:  Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 95 g
Overall Length: 128 mm (as per ANSI/SLAS Standard)
Overall Width: 85.6 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.25 mm x 8.32 mm
Compatible Sealing Mat: 510174
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510080S

48-well 5 44 Rectangular, Pyramid-bottom Natural 510174 Yes PK 5, CS 50
510080S
Description: 48-well High-Volume Deep Well Plate, PP, 5 mL, Rectangular well with Pyramid-bottom, Natural, Sterile
Product Type: Polypropylene High-Volume Deep Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 48-well
Array: 8 x 6
Alphanumeric: Molded
Notched Corner: Yes, H1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Rectangular Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 5 mL
Sterility: Gamma Sterile
Temperature Range: -80°C to 121°C
Product Weight: 95 g
Overall Length: 128 mm (as per ANSI/SLAS Standard)
Overall Width: 85.6 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.25 mm x 8.32 mm
Compatible Sealing Mat: 510174
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.

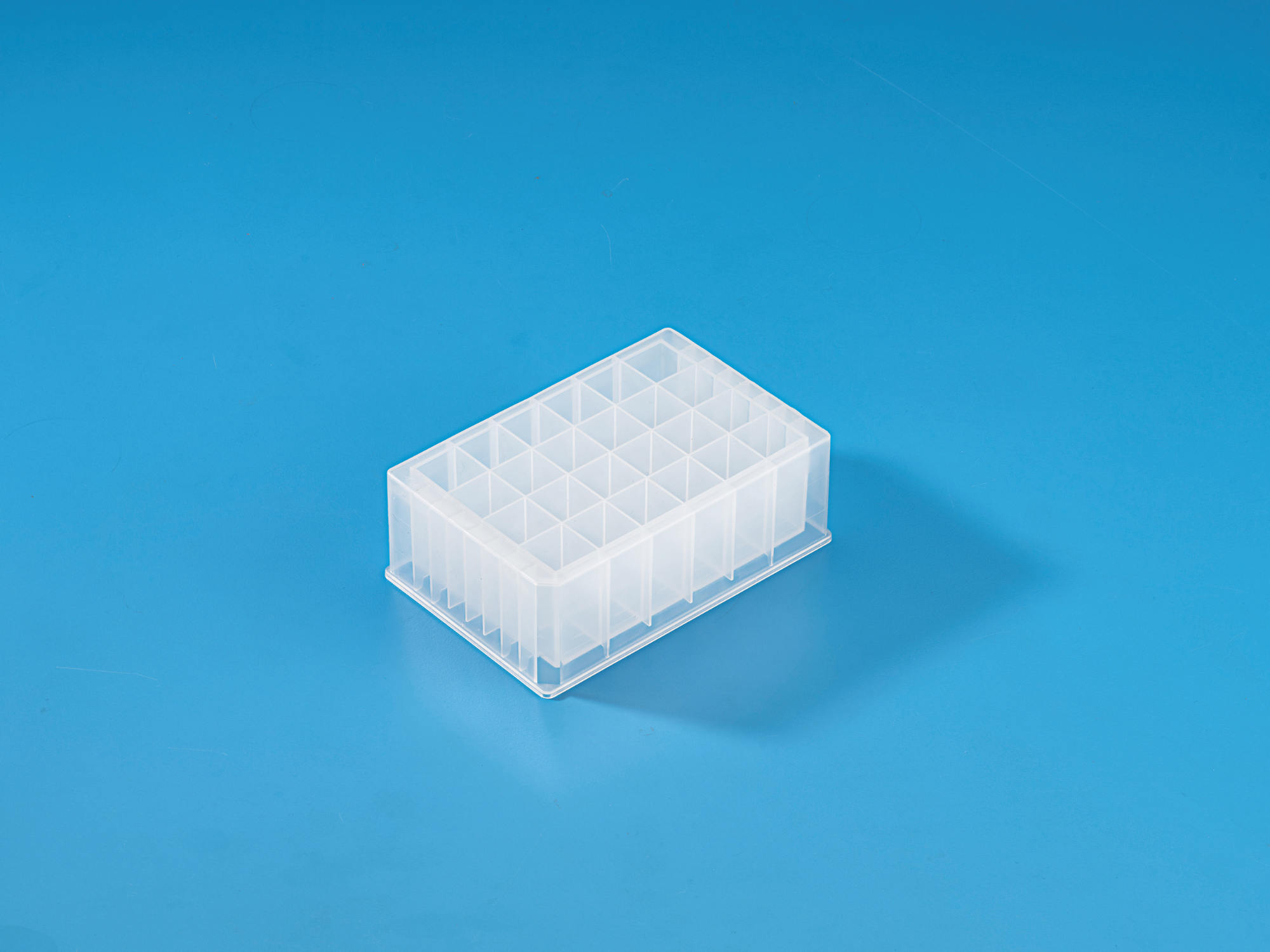

510081

24-well 10 44 Square, Pyramid-bottom Natural 510175 No PK 5, CS 50
510081
Description: 24-well High-Volume Deep Well Plate, PP, 10 mL, Square well with Pyramid-bottom, Natural
Product Type: Polypropylene High-Volume Deep Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 24-well
Array: 4 x 6
Alphanumeric: Molded
Notched Corner: Yes, D1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 10 mL
Sterility:  Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 78 g
Overall Length: 127.75 mm (as per ANSI/SLAS Standard)
Overall Width: 85.3 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.1 mm x 17.1 mm
Compatible Sealing Mat: 510175
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510081S

24-well 10 44 Square, Pyramid-bottom Natural 510175 Yes PK 5, CS 50
510081S
Description: 24-well High-Volume Deep Well Plate, PP, 10 mL, Square well with Pyramid-bottom, Natural, Sterile
Product Type: Polypropylene High-Volume Deep Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 24-well
Array: 4 x 6
Alphanumeric: Molded
Notched Corner: Yes, D1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 10 mL
Sterility:  Gamma Sterile
Temperature Range: -80°C to 121°C
Product Weight: 78 g
Overall Length: 127.75 mm (as per ANSI/SLAS Standard)
Overall Width: 85.3 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.1 mm x 17.1 mm
Compatible Sealing Mat: 510175
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510081S-BC

24-well (Barcoded) 10 44 Square, Pyramid-bottom Natural 510175 Yes PK 5, CS 50
510081S-BC
Description: 24-well High-Volume Deep Well Plate, PP, 10 mL, Square well with Pyramid-bottom, Natural, Sterile-Barcoded
Product Type: Polypropylene High-Volume Deep Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 24-well
Array: 4 x 6
Alphanumeric: Molded
Notched Corner: Yes, D1
Colour: Clear (Natural)
Barcode:  Barcoded
Well Shape: Square Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 10 mL
Sterility:  Gamma Sterile
Temperature Range: -80°C to 121°C
Product Weight: 78 g
Overall Length: 127.75 mm (as per ANSI/SLAS Standard)
Overall Width: 85.3 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.1 mm x 17.1 mm
Binding Type: Low-binding PP
Compatible Sealing Mat: 510175
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510082

24-well 10 44 Square, U-bottom Natural 510175 No PK 5, CS 50
510082
Description: 24-well High-Volume Deep Well Plate, PP, 10 mL, Square well with U-bottom, Natural
Product Type: Polypropylene High-Volume Deep Well Plate
Plate Material: Polypropylene (PP)
Plate Format: 24-well
Array: 4 x 6
Alphanumeric: Molded
Notched Corner: Yes, D1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 10 mL
Sterility:  Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 72 g
Overall Length: 127.6 mm (as per ANSI/SLAS Standard)
Overall Width: 85.4 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.1 mm x 17.1 mm
Binding Type: Low-binding PP
Compatible Sealing Mat: 510175
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510082S

24-well 10 44 Square, U-bottom Natural 510175 Yes PK 5, CS 50
510082S
Description: 24-well High-Volume Deep Well Plate, PP, 10 mL, Square well with U-bottom, Natural, Sterile
Product Type: Polypropylene High-Volume Deep Well Plate
Plate Material: Polypropylene (PP)
Plate Format: 24-well
Array: 4 x 6
Alphanumeric: Molded
Notched Corner: Yes, D1
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 10 mL
Sterility:  Gamma Sterile
Temperature Range: -80°C to 121°C
Product Weight: 72 g
Overall Length: 127.6 mm (as per ANSI/SLAS Standard)
Overall Width: 85.4 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Well Neck Inner Dimensions: 17.1 mm x 17.1 mm
Binding Type: Low-binding PP
Compatible Sealing Mat: 510175
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.

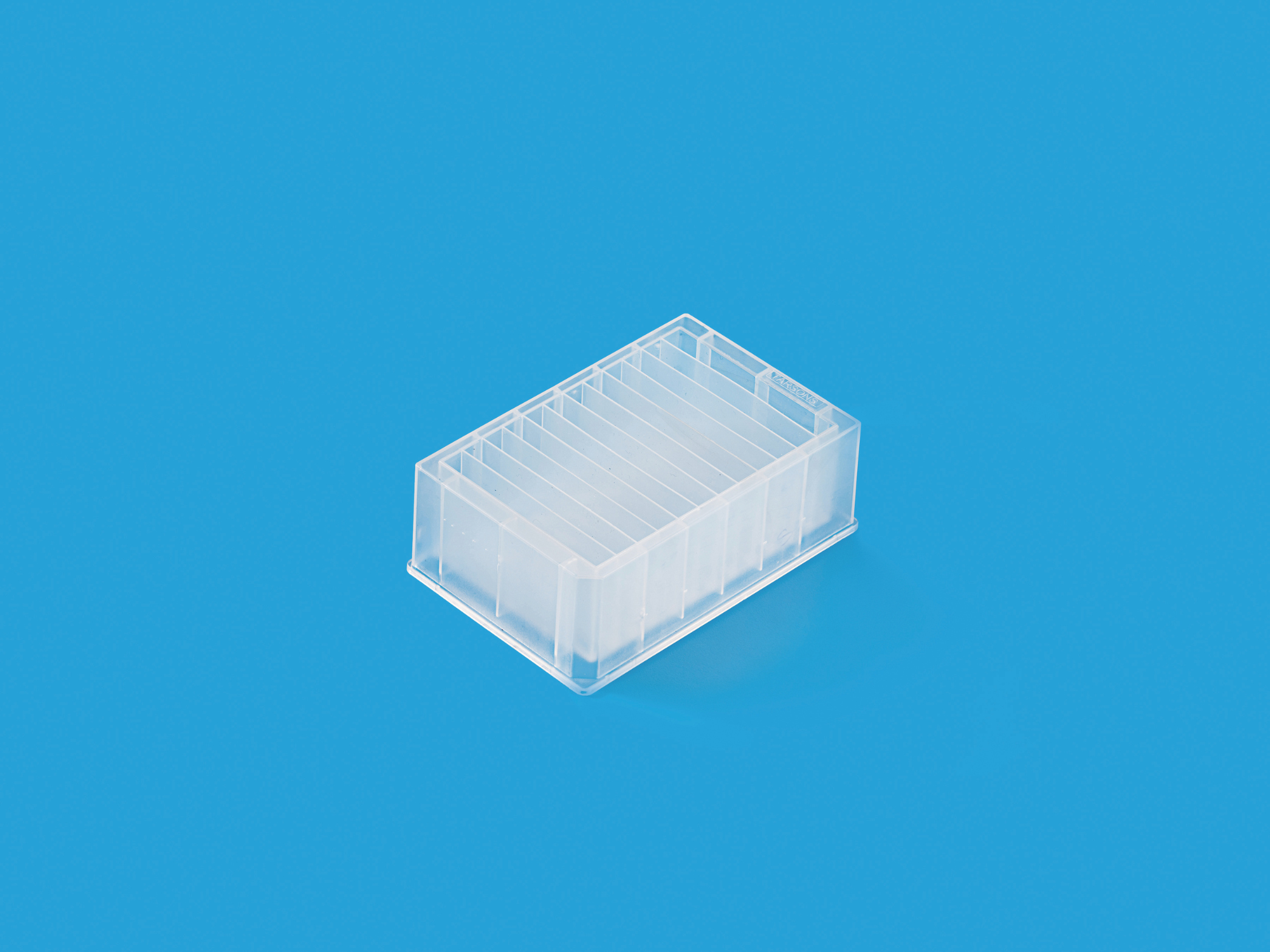

524092

12-channel 21 44 Rectangular, Pyramid-bottom Natural Not Available No PK 5, CS 50
524092
Description: 12-Channel Reservoir Plate, PP, 21 mL, Rectangular well with Pyramid-bottom, Natural
Product Type: 12-Channel Reservoir Plate
Plate Material: Polypropylene (PP)
Plate Format: 12-Channel
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Rectangular Well
Well Bottom Shape:  Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 21 mL
Sterility:  Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 77 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Binding Type: Low-binding PP
Compatible Sealing Mat: Not Available
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.

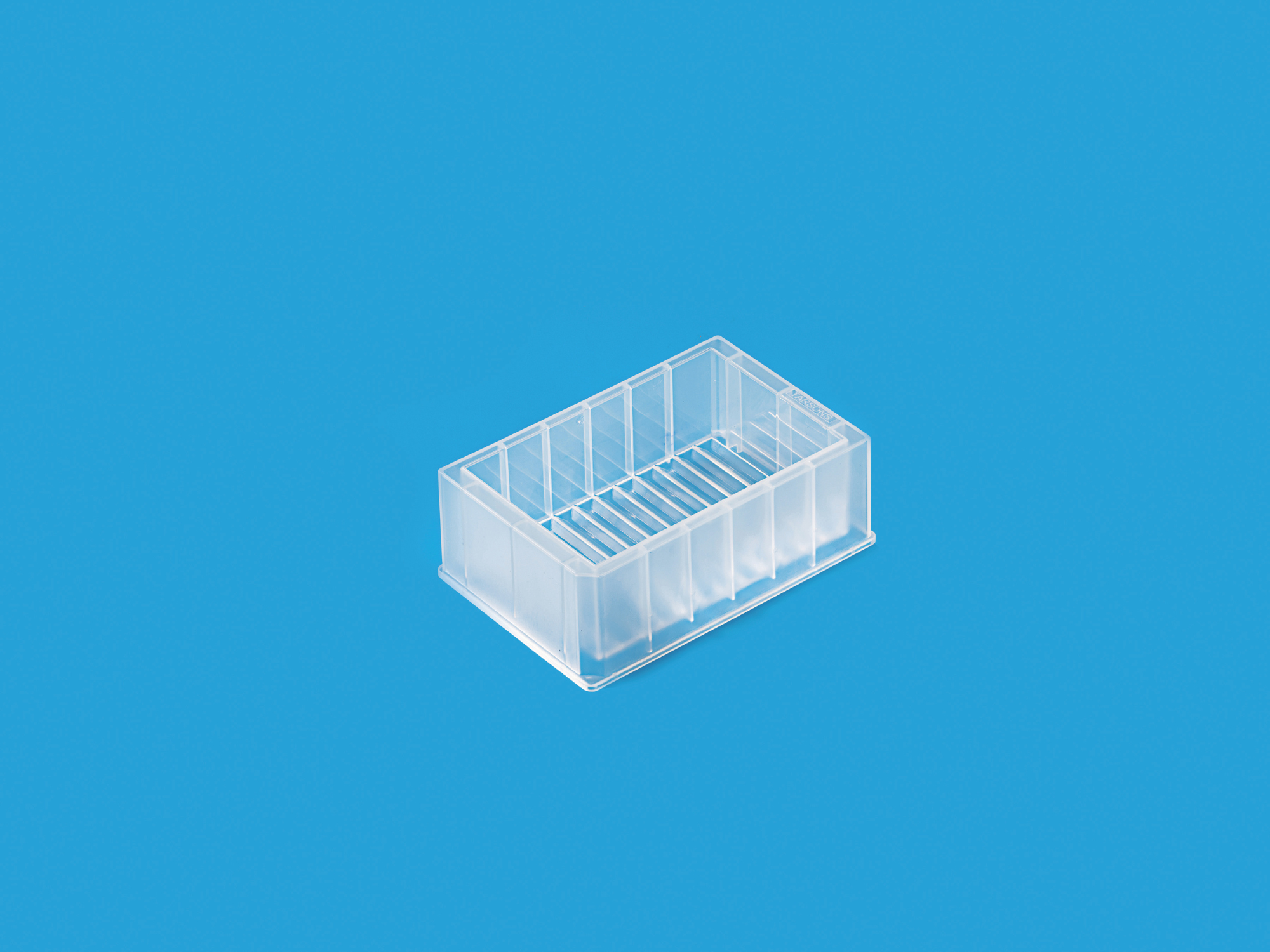

524093

12-channel, open format 290 mL 44 Rectangular, Pyramid-bottom Natural Not Available No PK 5, CS 50
524093
Description: 12-Channel Open format Reservoir Plate, PP, 290 mL, Rectangular well with Pyramid-bottom, Natural
Product Type: 12-Channel Open format Reservoir Plate
Plate Material: Polypropylene (PP)
Plate Format: 12-Channel
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Rectangular Well
Well Bottom Shape: Pyramid-Channel base
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 290 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 48 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Binding Type: Low-binding PP
Compatible Sealing Mat: Not Available
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR and USP Class VI. Free of detectable DNase, RNase and Pyrogen.

Key Features:

  • Material conforming to USP class VI.
  • Plates are designed according to the ANSI/SLAS format, having an SBS footprint for automation compatibility.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Wells are labelled alphanumerically.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Compatible with adhesive seals or Silicone Sealing Mats.
  • Manufactured in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Withstands -80° C to 120° C.
  • Available in sterile and non-sterile variants.

Description

Key Features:

  • Material conforming to USP class VI.
  • Plates are designed according to the ANSI/SLAS format, having an SBS footprint for automation compatibility.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Wells are labelled alphanumerically.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Compatible with adhesive seals or Silicone Sealing Mats.
  • Manufactured in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Withstands -80° C to 120° C.
  • Available in sterile and non-sterile variants.
