Heavy duty vacuum bottles

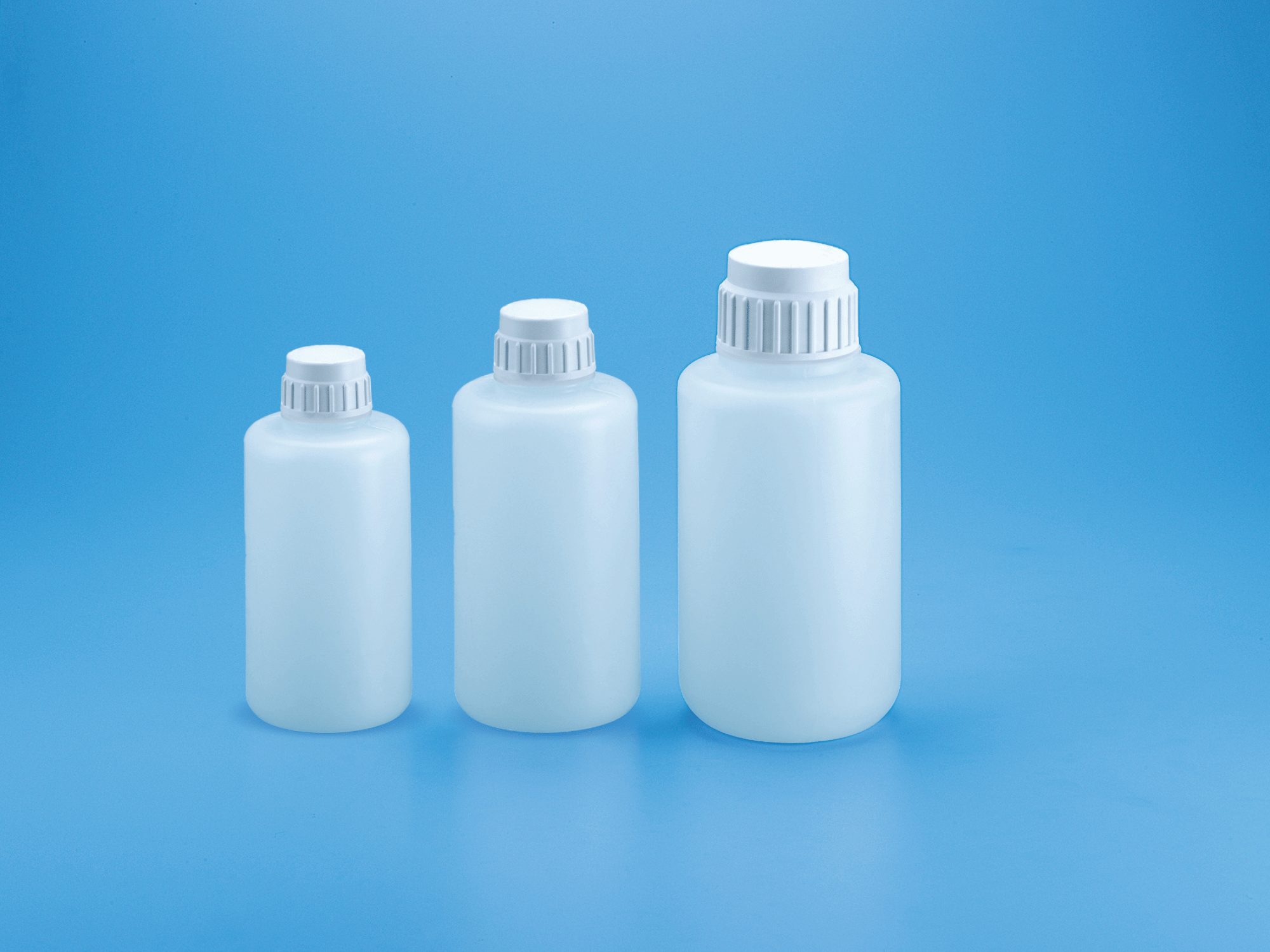

Heavy Duty Vacuum Bottles, HDPE

Tarsons Heavy-Duty HDPE Vacuum Bottles allow you to hold full vacuum for up to 24 hours. Made of Medical grade material conforming to USP Class VI. These are leakproof, wide mouth and large size bottles. Ideal for heavy-duty biotechnology lab use, and a vacuum trap these thick-walled bottles can withstand repeated room-temperature vacuum applications. These can also be used as a waste aspirator bottle.

Certificates
Catalog No. Technical Data Capacity Mouth Type Material (Bottle) Shape Closure Size (mm) Autoclavability Sterility Packing Details
582252

1000 mL
(34 oz)		 Narrow HDPE Round 53B No No PK 1, CS 6
Description: Heavy Duty Vacuum Bottle, HDPE with white HDPE Closure, TPE gasket 1000 mL
Product Type: Heavy Duty Vacuum Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: White
Bottle Material: High-density Polyethylene
Closure Material: High-density Polyethylene
Closure Liner & Gasket: Unlined closure with TPE gasket
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 37.3 in-lb to 52 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 1050 mL
Screw Closure Size: 53B
Inner Neck Diameter: 38.8 mm
Bottle Outer Diameter: 92.3 mm
Height w/out closure: 217 mm
Height with closure: 223 mm
No per Pack: 1
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582256

2000 mL
(68 oz)		 Narrow HDPE Round 53B No No PK 1, CS 6
Description: Heavy Duty Vacuum Bottle, HDPE with white PP Closure, TPE gasket 2000 mL
Product Type: Heavy Duty Vacuum Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: White
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner & Gasket: Unlined closure with TPE gasket
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 37.3 in-lb to 52 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 1965 mL
Screw Closure Size: 53B
Inner Neck Diameter: 38.5 mm
Bottle Outer Diameter: 120.3 mm
Height w/out closure: 257 mm
Height with closure: 265 mm
No per Pack: 1
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582253

2000 mL
(68 oz)		 Narrow HDPE Round 53B No No PK 1, CS 6
Description: Heavy Duty Vacuum Bottle, HDPE with white HDPE Closure, TPE gasket 2000 mL
Product Type: Heavy Duty Vacuum Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: White
Bottle Material: High-density Polyethylene
Closure Material: High-density Polyethylene
Closure Liner & Gasket: Unlined closure with TPE gasket
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof with 37.3 in-lb to 52 in-lb torque
Sterility: Non-sterile
Approx. Brim Capacity: 1965 mL
Screw Closure Size: 53B
Inner Neck Diameter: 38.5 mm
Bottle Outer Diameter: 120.3 mm
Height w/out closure: 257 mm
Height with closure: 265 mm
No per Pack: 1
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582253

4000 mL
(135 oz)		 Narrow HDPE Round 83B No No PK 1, CS 6
Description: Heavy Duty Vacuum Bottle, HDPE with white PP Closure, TPE gasket 4000 mL
Product Type: Heavy Duty Vacuum Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: White
Bottle Material: High-density Polyethylene
Closure Material: Polypropylene
Closure Liner & Gasket: Unlined closure with TPE gasket
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof as per QWI-QC-04
Sterility: Non-sterile
Approx. Brim Capacity: 4500 mL
Screw Closure Size: 83B
Inner Neck Diameter: 65 mm
Bottle Outer Diameter: 153 mm
Height w/out closure: 335 mm
Height with closure: 350 mm
No per Pack: 1
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI
582247

4000 mL
(135 oz)		 Narrow HDPE Round 83B No No PK 1, CS 6
Description: Heavy Duty Vacuum Bottle, HDPE with white HDPE Closure, TPE gasket 4000 mL
Product Type: Heavy Duty Vacuum Bottle
Bottle Colour: Translucent (Natural)
Closure Colour: White
Bottle Material: High-density Polyethylene
Closure Material: High-density Polyethylene
Closure Liner & Gasket: Unlined closure with TPE gasket
Closure Included: Yes, closures are loosely fitted with individual bottles
Autoclavability: Non-autoclavable
Leak proof: Yes, Leak proof as per QWI-QC-04
Sterility: Non-sterile
Approx. Brim Capacity: 4500 mL
Screw Closure Size: 83B
Inner Neck Diameter: 65 mm
Bottle Outer Diameter: 153 mm
Height w/out closure: 335 mm
Height with closure: 350 mm
No per Pack: 1
No per Case: 6
Compliance: Manufactured in compliance with ISO 13485:2016 quality requirements. Bottles and Closures meet the requirements of FDA-21 CFR, USP Class VI

  • Made of medical and food grade Polypropylene conforming to USP Class VI
  • Wide mouth, large size and thick-walled bottles
  • Allows users to hold full vacuum for up to 24 hours
  • Can withstand repeated room-temperature vacuum applications
  • Leakproof
  • Has excellent chemical resistance
  • Ideal for heavy-duty biotechnology lab use and a vacuum trap
  • Compatible with Filling/Venting closure
  • Includes Polypropylene and HDPE closures with TPE gaskets
  • Rugged 53B caps for 1 L & 2 L bottles and 83B caps for 4 L bottles with TPE gaskets

Catalog Number: 582252, 582256, 582253, 582253, 582247
