PP Storage Plates

Deep-Well Plates, PP

Deep-Well Plates, PP: These plates are made from virgin, USP Class VI passed low-binding Polypropylene (PP) to ensure complete sample recovery. Available in round and square well configurations, with U, V (conical) and Pyramid-bottom shapes. Wells with a U-bottom enhance mixing, while V (conical) or Pyramid-bottom wells facilitate optimal sample recovery. These plates are compatible with most multichannel pipettes and automated Liquid-Handling equipment. They are used for high-throughput screening, sample collection, processing, storage and assays across genomics (e.g., nucleic acid extraction), proteomics, storing biomolecules, compounds and patient samples.

Certificates..
Catalog No. Technical Data Plate Format Well Volume Height Well Shape Plate Colour Compatible Sealing Mat Sterility Packing details
510066

96-Well for Magnetic Separator 0.8 mL 31 mm Round, V-bottom Natural 510171 No PK 5, CS 50
510066
Description: 96-Well Deep-Well Plate for Magnetic Separator, PP, 0.8 mL, with V-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: V-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 0.8 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 73.5 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 31 mm
Compatible Sealing Mat: 510171
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510066S

96-Well for Magnetic Separator 0.8 mL 31 mm Round, V-bottom Natural 510171 Yes PK 5, CS 50
510066S
Description: 96-Well Deep-Well Plate for Magnetic Separator, PP, 0.8 mL, with V-bottom, Natural, Sterile
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: V-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 0.8 mL
Sterility: Sterile
Temperature Range: -80°C to 121°C
Product Weight: 73.5 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 31 mm
Compatible Sealing Mat: 510171
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510067

96-Well Low-profile 1.1 mL 27 mm Round, U-bottom Natural 510172 No PK 5, CS 50
510067
Description: 96-Well Low-profile Deep-Well Plate, PP, 1.1 mL, with U-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 1.1 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 55.6 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 27 mm
Compatible Sealing Mat: 510172
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510068

96-Well Standard-profile 2.0 mL 45 mm Round, U-bottom Natural 510172 No PK 5, CS 50
510068
Description: 96-Well Standard-profile Deep-Well Plate, PP, 2.0 mL, with U-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.0 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 100 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 45 mm
Compatible Sealing Mat: 510172
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510068S

96-Well Standard- profile 2.0 mL 45 mm Round, U-bottom Natural 510172 Yes PK 5, CS 50
510068S
Description: 96-Well Standard-profile Deep-Well Plate, PP, 2.0 mL, with U-bottom, Natural, Sterile
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.0 mL
Sterility: Sterile
Temperature Range: -80°C to 121°C
Product Weight: 100 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 45 mm
Compatible Sealing Mat: 510172
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510069

96-Well Standard- profile 1.2 mL 41.5 mm Round, U-bottom Natural 510171 No PK 5, CS 50
510069
Description: 96-Well Standard-profile Deep-Well Plate, PP, 1.2 mL, with U-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 1.2 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 112.4 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 41.5 mm
Compatible Sealing Mat: 510171
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510069S

510069S 1.2 mL 41.5 mm Round, U-bottom Natural 510171 No PK 5, CS 50
510069S
Description: 96-Well Standard-profile Deep-Well Plate, PP, 1.2 mL, with U-bottom, Natural, Sterile
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Round Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 1.2 mL
Sterility: Sterile
Temperature Range: -80°C to 121°C
Product Weight: 112.4 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 41.5 mm
Compatible Sealing Mat: 510171
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510077

96-Well Standard- profile 2.2 mL 44 mm Square, Pyramid-bottom Natural 510173 No PK 5, CS 50
510077
Description: 96-Well Standard-profile Deep-Well Plate, PP, 2.2 mL, Square well with Pyramid-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.2 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 107.9 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Compatible Sealing Mat: 510173
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510077S

96-Well Standard- profile 2.2 mL 44 mm Square, Pyramid-bottom Natural 510173 No PK 5, CS 50
510077S
Description: 96-Well Standard-profile Deep-Well Plate, PP, 2.2 mL, Square well with Pyramid-bottom, Natural, Sterile
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Pyramid-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.2 mL
Sterility: Sterile
Temperature Range: -80°C to 121°C
Product Weight: 107.9 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Compatible Sealing Mat: 510173
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510078

96-Well Standard- profile 2.4 mL 44 mm Square, U-bottom Natural 510173 No PK 5, CS 50
510078
Description: 96-Well Standard-profile Deep-Well Plate, PP, 2.4 mL, Square well with U-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 96-Well
Array: 8 x 12
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: U-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 2.4 mL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 94.3 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 44 mm
Compatible Sealing Mat: 510173
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.

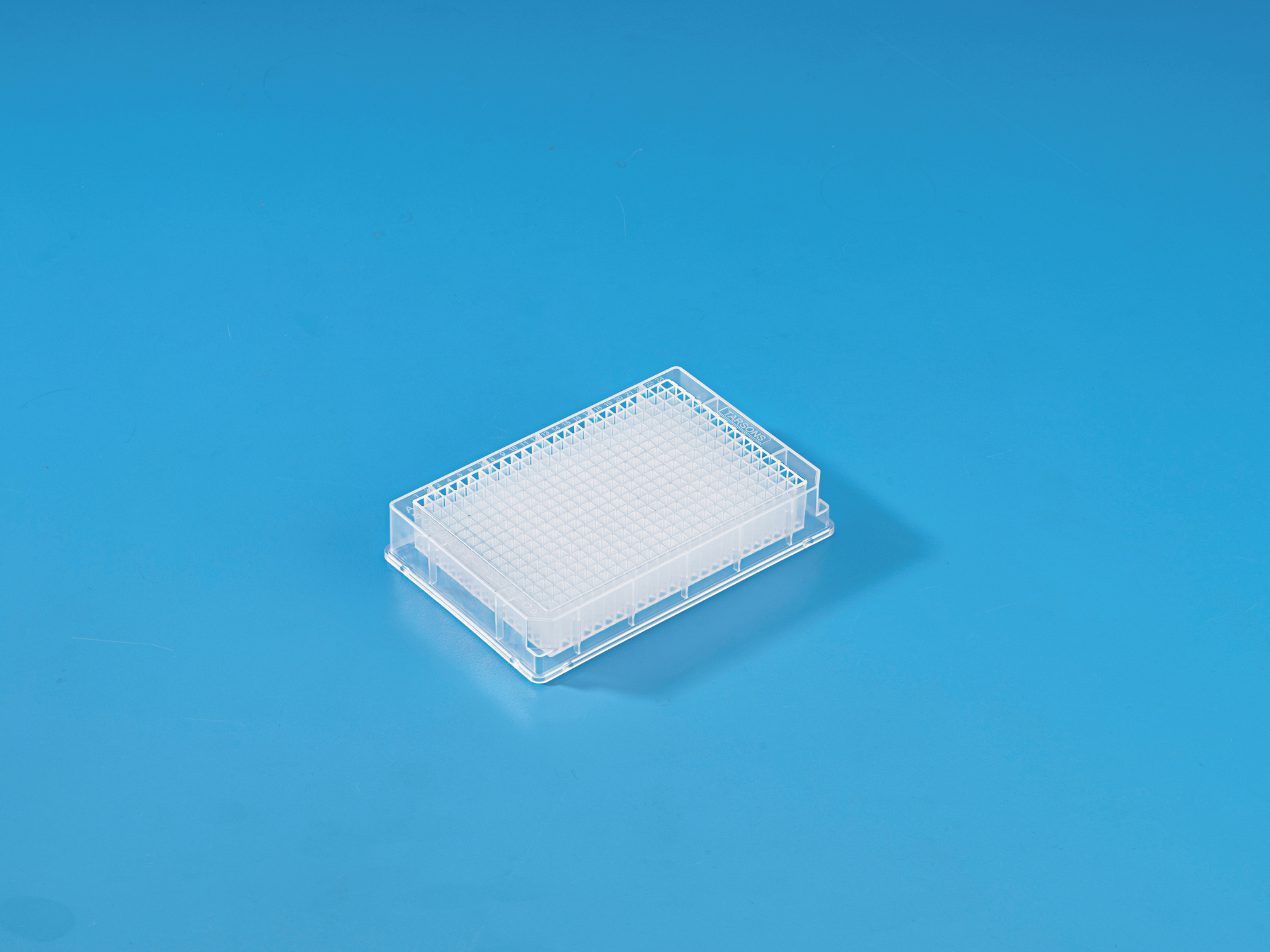

510220

384-Well 240 µL 22 mm Square, Conical-bottom Natural Not Available No PK 5, CS 50
510220
Description: 384-Well Low-profile Deep-Well Plate, PP, 240 µL, Square well with Conical-bottom, Natural
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 384-Well
Array: 16 x 24
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Conical-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 240 µL
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Weight: 64 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 22 mm
Compatible Sealing Mat: Not Available
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.
510220S

384-Well 240 µL 22 mm Square, Conical-bottom Natural Not Available No PK 5, CS 50
510220S
Description: 384-Well Low-profile Deep-Well Plate, PP, 240 µL, Square well with Conical-bottom, Natural, Sterile
Product Type: Polypropylene Deep-Well Plates
Plate Material: Low-binding Polypropylene (PP)
Plate Format: 384-Well
Array: 16 x 24
Colour: Clear (Natural)
Barcode: No Barcode
Well Shape: Square Well
Well Bottom Shape: Conical-bottom
Lid: Without Lid
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Working Volume/well: 240 µL
Sterility: Sterile
Temperature Range: -80°C to 121°C
Product Weight: 64 g
Overall Length: 127.76 mm (as per ANSI/SLAS Standard)
Overall Width: 85.48 mm (as per ANSI/SLAS Standard)
Height: 22 mm
Compatible Sealing Mat: Not Available
Packing Type: 5 Plates / Bag
No per Case: 50
Compliance: Manufactured inside a Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Plates meet the requirements of FDA 21 CFR, USP Class VI. Free of detectable DNase, RNase and Pyrogen.

Key Features:

  • Material conforming to USP class VI.
  • Plates are designed according to the ANSI/SLAS format.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Wells are labelled alphanumerically.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Compatible with adhesive seals or Silicone Sealing Mats.
  • Manufactured in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Withstands -80° C to 120° C.
  • Available in sterile and non-sterile variants.

Description

Key Features:

  • Material conforming to USP class VI.

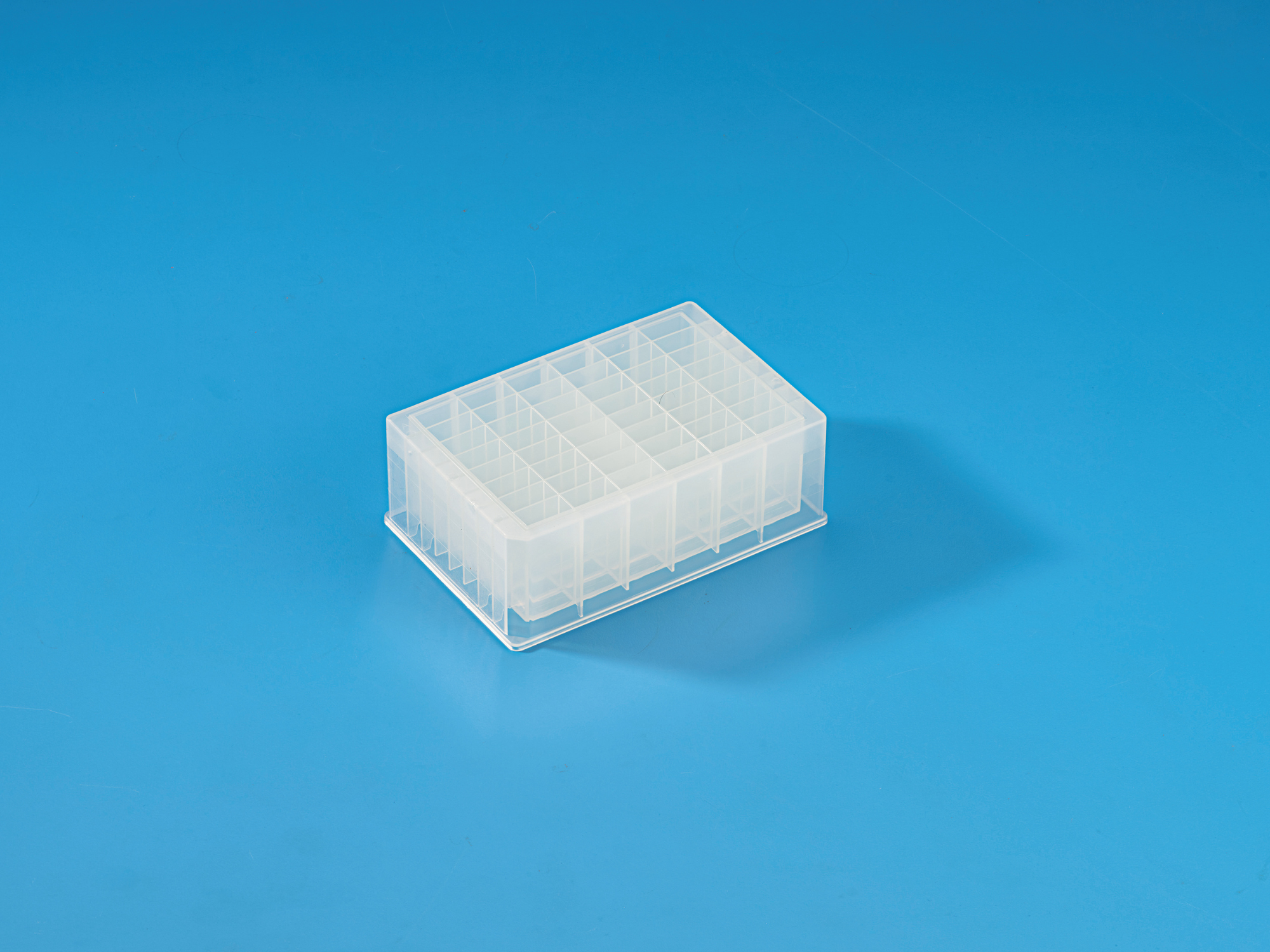

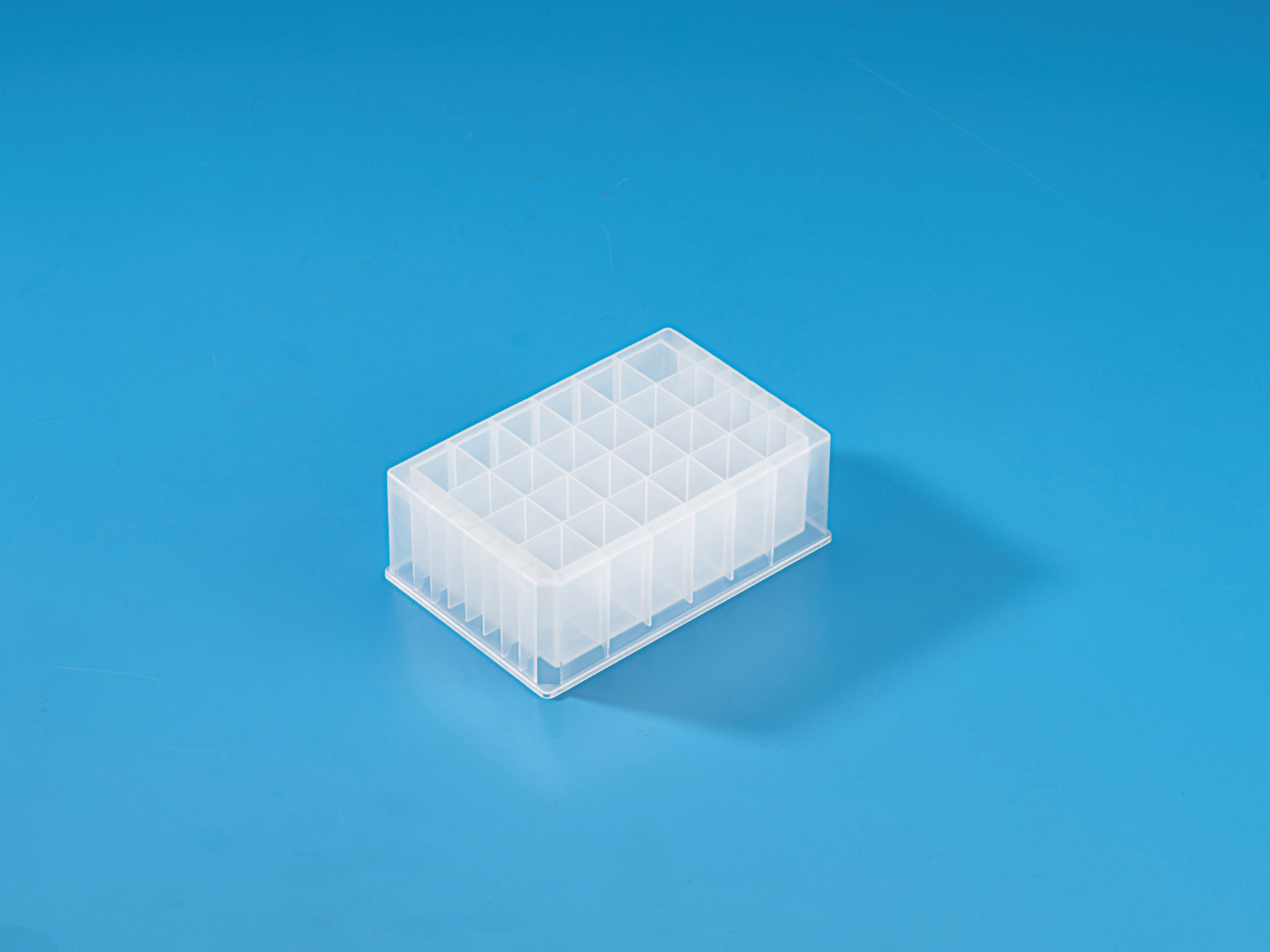

  • Plates are designed according to the ANSI/SLAS format.
  • Autoclavable (121°C at 15 psi for 20 min).
  • Raised rims on each well facilitate secure sealing.
  • Wells are labelled alphanumerically.
  • Compatible with solvents such as DMSO, ethanol, methanol, phenol, and chloroform.
  • Compatible with adhesive seals or Silicone Sealing Mats.
  • Manufactured in ISO Class 8 cleanroom facilities.
  • Detectable DNase, RNase, and pyrogen-free.
  • Withstands -80° C to 120° C.
  • Available in sterile and non-sterile variants.

Related products

  • Placeholder

    PP Storage Plates

    High Volume Deep-Well Plates, PP

    High-Volume Deep-Well Plates, PP: These plates are also known as…

    Read more

    PP Storage Plates

    High Volume Deep-Well Plates, PP

    High-Volume Deep-Well Plates, PP: These plates are also known as reservoir plates, made from virgin, USP Class VI passed low-binding Polypropylene (PP) to ensure complete…

  • Placeholder

    PP Storage Plates

    Silicone Sealing Mats for Plates

    Silicone Sealing Mats for Plates: These mats are made from…

    Read more

    PP Storage Plates

    Silicone Sealing Mats for Plates

    Silicone Sealing Mats for Plates: These mats are made from autoclavable silicone. They can withstand a temperature range of -40˚C to 130˚C and are compatible…

  • Placeholder

    PP Storage Plates

    Microplates, PP

    Microplates, PP: These plates are made from virgin, USP Class…

    Read more

    PP Storage Plates

    Microplates, PP

    Microplates, PP: These plates are made from virgin, USP Class VI passed low-binding Polypropylene (PP) to ensure complete sample recovery. Available in round and square…

  • Placeholder

    PP Storage Plates

    96-Well Cluster Tubes 1.1 mL, PP

    Sample Library / 96-Well Cluster Tubes 1.1 mL, PP: These…

    Read more

    PP Storage Plates

    96-Well Cluster Tubes 1.1 mL, PP

    Sample Library / 96-Well Cluster Tubes 1.1 mL, PP: These tubes are made from virgin, USP Class VI passed low-binding Polypropylene to ensure complete sample…
