Genomics & PCR Consumables

PCR Plate Sealing Options

We offer PCR Plate Sealing options in following three types –

  1. 1. PCR Cap Strips.
  2. 2. Silicone Sealing Mats for 96 well PCR Plate.
  3. 3. Optical Plate Seal.

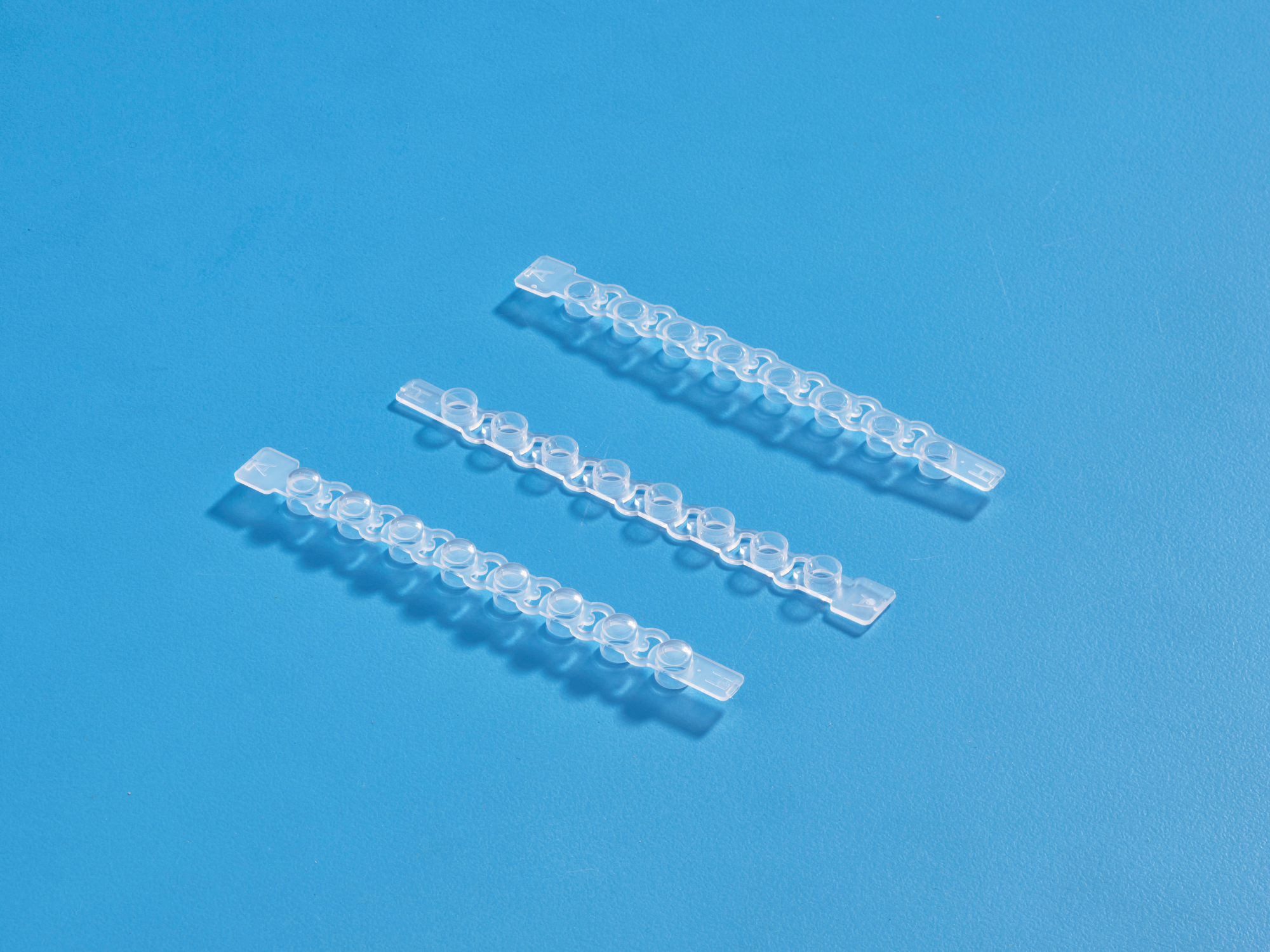

PCR Cap Strips are available in 8-cap strip format. These are compatible with both 0.2 mL (standard profile) and 0.1 mL (low profile) PCR Plates. Cap strips are available in flat or domed type and provide secure sealing to prevent evaporation during PCR process. These are manufactured in ISO Class 8 cleanroom and are autoclavable.

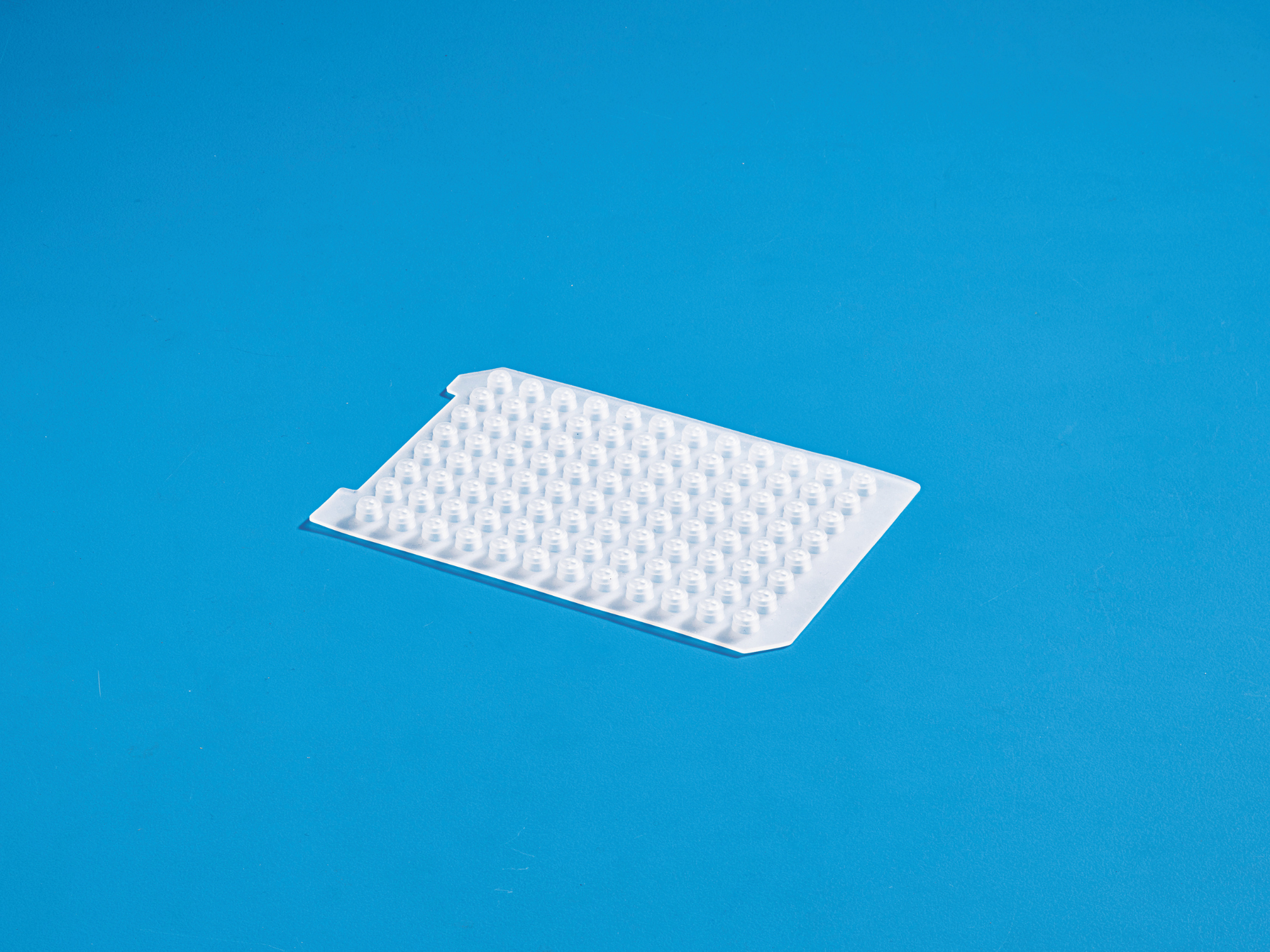

Silicone Sealing Mats for 96 well PCR Plate are transparent and fit with any brands of 96-Well PCR Plates. It can be cleaned, autoclaved and reused.

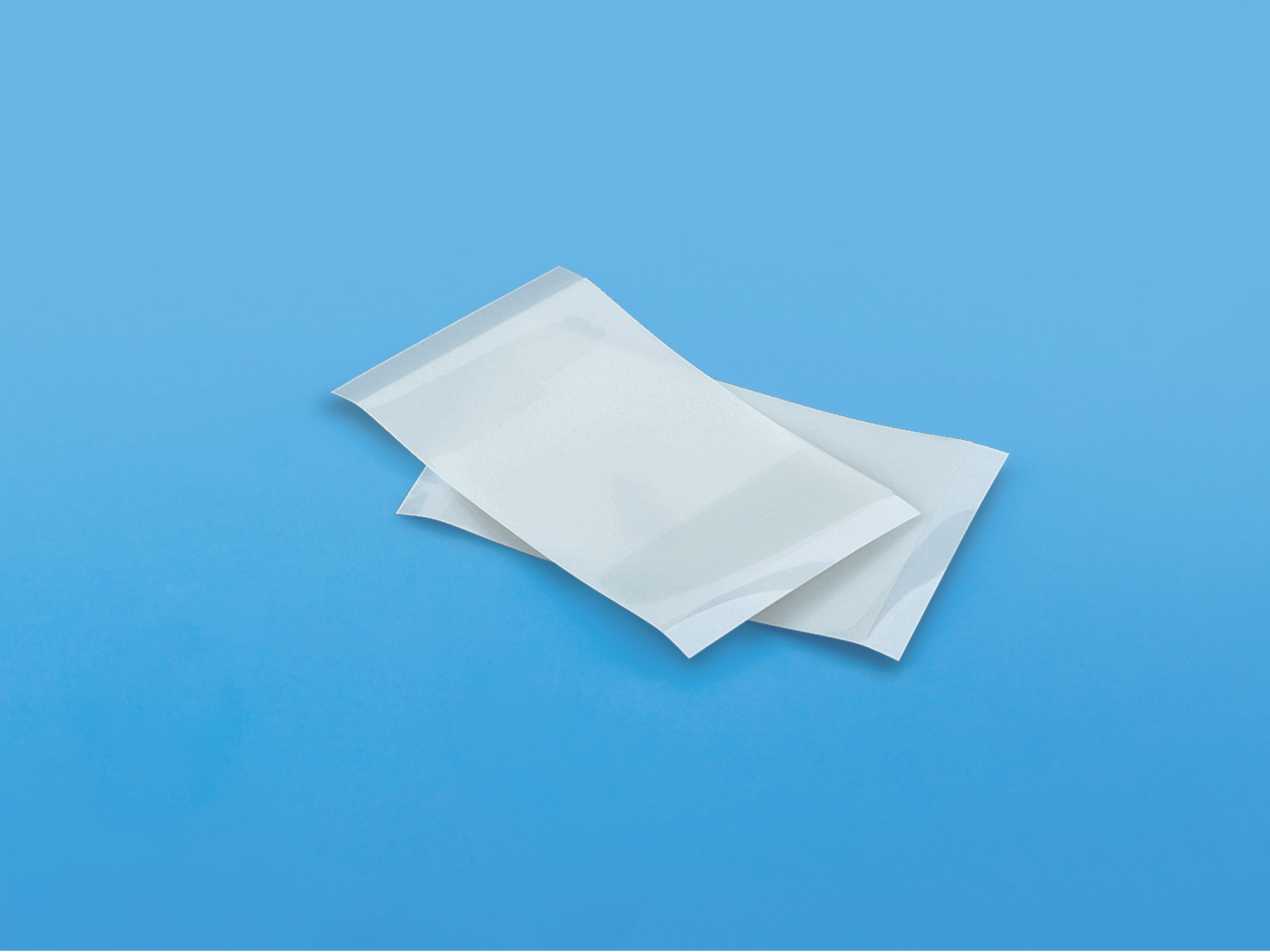

Optical Plate Seals are disposable, non-pierceable seal which can be easily and cleanly removed after the PCR. A specially formulated extra-strong thick adhesive provides an excellent seal to minimize evaporation and reduce cross-contamination. Suitable for Real-Time PCR application. It features two perforated end-tabs for easy handling, application and removal.

PCR Plate Sealing Options are certified free from detectable DNase & RNase.

Certificates..
Catalog No. Technical data Type Compatible with Colour Material Sterility Autoclavability Packing Details
510073

Flat Cap Strip 0.1/0.2 mL PCR Plates Ultra-Clear(cap) Polypropylene No Yes PK 125
510073
Description: Maxiamp® ultra-clear Flat cap for strip / Plates, PP
Product Type: Maxiamp® PCR cap strips
Cap Material: Polypropylene (PP)
Colour: Ultra Clear (Natural)
Cap: Ultra Clear, Flat
Autoclavability: Autoclavable when cap is open (121°C at 15 psi for 20 min)
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Unit Weight: 0.36 g
Length of Strip Cap: 83.2 mm
Packing Type: 125 cap strip / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Cap Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen.
510091

Flat Cap Strip 0.1/0.2 mL PCR Plates Clear(cap) Polypropylene No Yes PK 125
510091
Description: Maxiamp® Flat cap for PCR Tube Strip / Plates, PP
Product Type: Maxiamp® clear PCR cap strips
Cap Material: Polypropylene (PP)
Colour: Clear (Natural)
Cap: Clear, Flat
Autoclavability: Autoclavable when cap is open (121°C at 15 psi for 20 min)
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Unit Weight: 0.38 g
Length of Strip Cap: 82.4 mm
Packing Type: 125 cap strip / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Cap Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen.
510092

Domed Cap Strip 0.1/0.2 mL PCR Plates Clear(cap) Polypropylene No Yes PK 125
510092
Description: Maxiamp® Domed cap for PCR Tube Strips/ Plates, PP
Product Type: Maxiamp® clear PCR cap strip
Cap Material: Polypropylene (PP)
Colour: Clear (Natural)
Cap: Clear, Domed
Autoclavability: Autoclavable when cap is open (121°C at 15 psi for 20 min)
Sterility: Non-Sterile
Temperature Range: -80°C to 121°C
Product Unit Weight: 0.43 g
Length of Strip Cap: 82.7 mm
Packing Type: 125 cap strip / Bag
Compliance: Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Cap Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen.
510170

96-Round plug mat 0.1/0.2 mL PCR Plates Natural Silicone No Yes PK 50
510170
Description: Silicone Sealing Mat for PCR Plate
Product Type: Sealing Mat for PCR Plate
Material: Silicone
Colour: Natural
Pre-slit: Yes, pierceable, cross-slit
Compatible well form: Round
Autoclavability: Autoclavable (121°C at 15 psi for 20 min)
Sterility: Non-Sterile
Temperature Range: -40°C to 130°C
Dome Shape: Flat
Dome Height/Depth: 3.9 mm
Mat Width: 80 mm
Mat Length: 122.5 mm
Packing: 5 Pcs/bag, 50 Pcs/case
Storage: Keep out of sunlight. Store in a cool dry place. Keep away from sources of ozone or ignition.
Free From: Free of detectable DNase, RNase & pyrogen.
157300

Sheet 0.1/0.2 mL PCR Plates Ultra-Clear Polyester No No PK 100
157300
Description: Optical Plate Seal for PCR Plate, disposable and non-pierceable
Product Type: Optical Plate Seal for PCR Plate
Film Material: Polyester (2 mil)
Adhesive Material: Acrylic (1.5 mil-1.8 mil)
Colour: Ultra-clear (Natural)
Autoclavability: No
Sterility: Non-Sterile
Temperature Range: -20°C to 120°C
Length x Width: 142.2 mm x 81.2 mm (including end-tabs)
End-Tabs: 9.5 mm from edge of film
Perforations: 10.7 mm from edge of film
Release liner: White poly-coated paper (4.8 mil)
Packing Type: 100 Sheets/case
Free From: Free of detectable DNase & RNase.

Key Features

  • Free from detectable DNase & RNase.
  • PCR Cap Strips are ISO Class 8 clean-room
  • PCR Silicone Sealing mats can be cleaned, autoclaved and reused.
  • Optical Plate seals feature two perforated end tabs for easy handling, application and removal.

Description

Key Features

  • Free from detectable DNase & RNase.
  • PCR Cap Strips are ISO Class 8 clean-room
  • PCR Silicone Sealing mats can be cleaned, autoclaved and reused.
  • Optical Plate seals feature two perforated end tabs for easy handling, application and removal.
