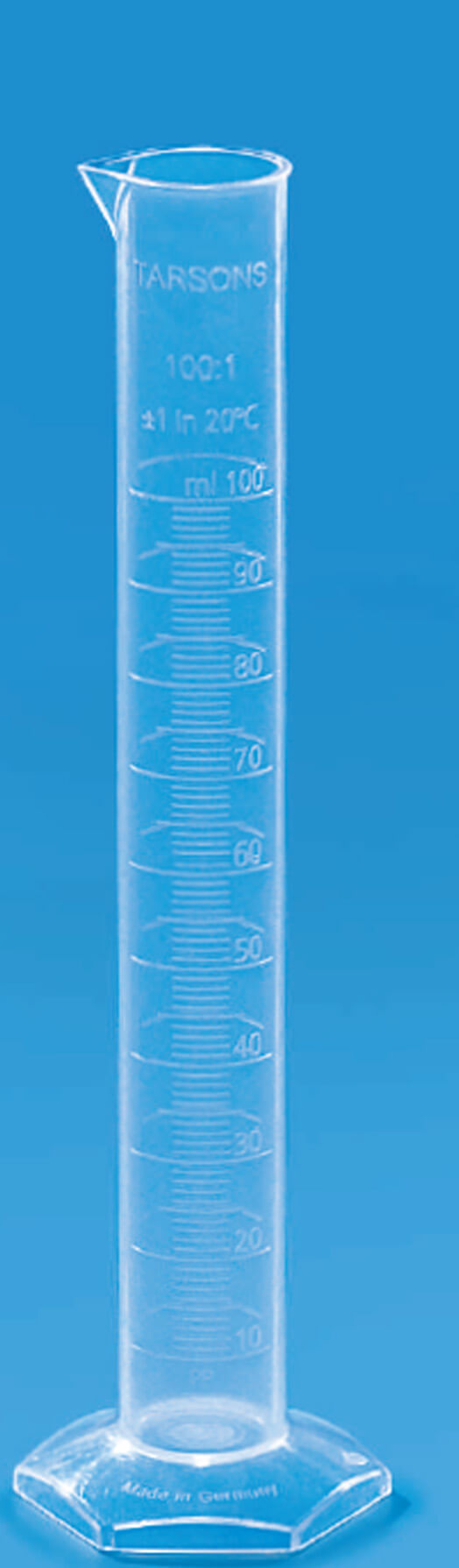

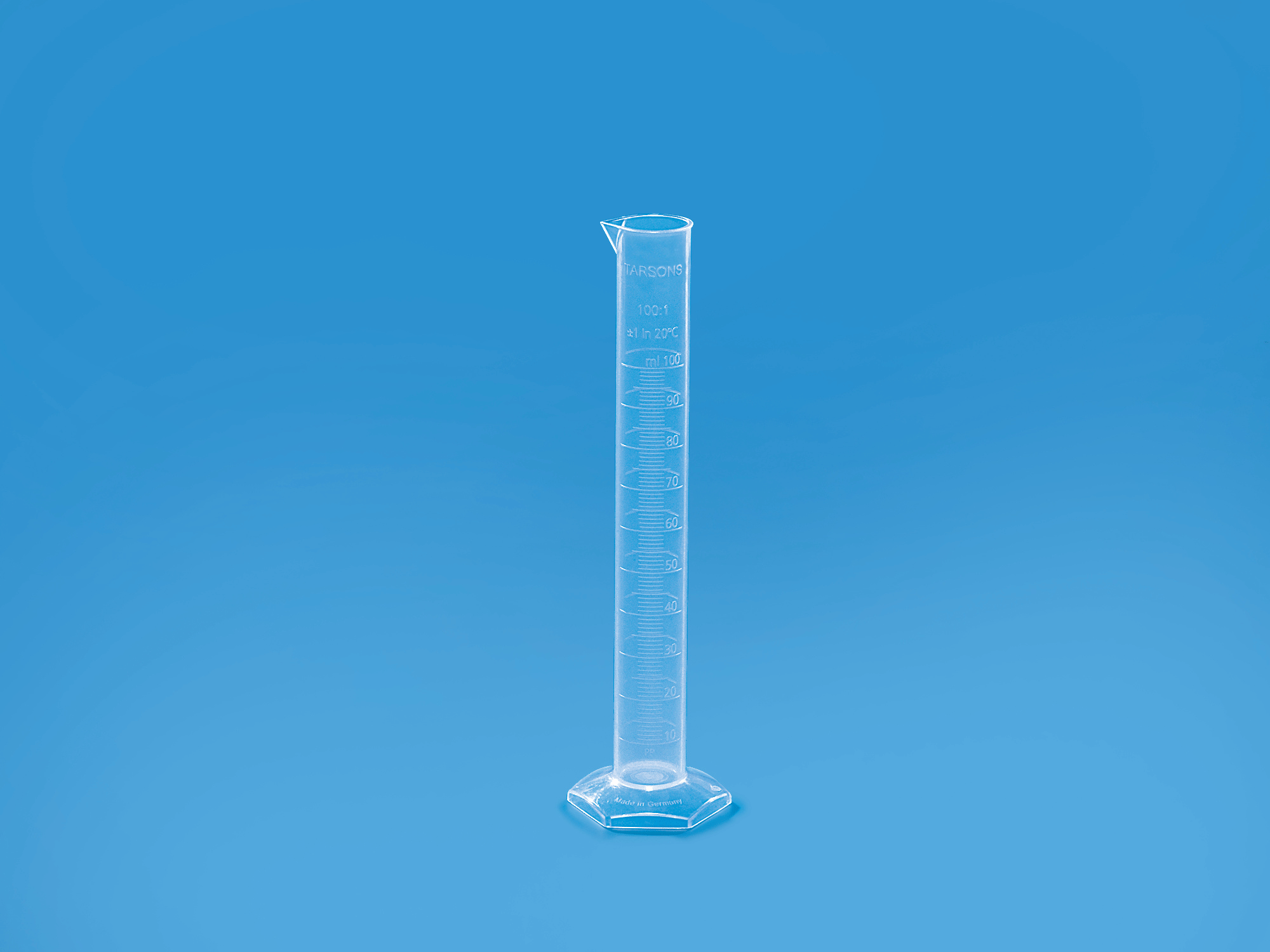

Measuring Cylinder Class B, PP
Measuring Cylinder Class B, PP - Image 2

Measuring Cylinders

Measuring Cylinder Class B, PP

Made of USP Class VI & US FDA 21 CFR passed Polypropylene (PP) these measuring cylinders come with ring-moulded graduations at major increments for excellent readability. They are transparent, and autoclavable and have a stable hexagonal base. Meets Class B tolerances as per DIN 12681/ISO 6706.

They can tolerate temperatures up to 60°C without causing permanent exceeding of tolerance limits.

Certificates..
Catalog No. Technical data Material Capacity (mL) Graduation type Autoclavability Sterility
345010

PMP 10 Moulded No No
Description: Measuring Cylinder Class B, PP, 10 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 10 mL
Cylinder Outer Diameter: 13.6 ± 0.5 mm
Product Height: 147.2 ± 1.5 mm
Graduation Range: 1 mL to 10 mL
Graduation Interval: 0.2 mL
Volume Tolerance: ± 0.2 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 12
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345020

PMP 25 Moulded No No
Description: Measuring Cylinder Class B, PP, 25 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 25 mL
Cylinder Outer Diameter: 20.2 ± 0.5 mm
Product Height: 170.0 ± 2.0 mm
Graduation Range: 2.5 mL to 25 mL
Graduation Interval: 0.5 mL
Volume Tolerance: ± 0.5 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 12
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345030

PMP 50 Moulded No No
Description: Measuring Cylinder Class B, PP, 50 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 50 mL
Cylinder Outer Diameter: 25.7 ± 0.5 mm
Product Height: 200.5 ± 2.0 mm
Graduation Range: 5 mL to 50 mL
Graduation Interval: 1 mL
Volume Tolerance: ± 1 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 12
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345040

PMP 100 Moulded No No
Description: Measuring Cylinder Class B, PP, 100 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 100 mL
Cylinder Outer Diameter: 30.9 ± 0.5 mm
Product Height: 250.0 ± 3 mm
Graduation Range: 10 mL to 100 mL
Graduation Interval: 1 mL
Volume Tolerance: ± 1 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 6
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345050

PMP 250 Moulded No No
Description: Measuring Cylinder Class B, PP, 250 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 250 mL
Cylinder Outer Diameter: 40.3 ± 0.5 mm
Product Height: 327.5 ± 3.5 mm
Graduation Range: 10 mL to 100 mL
Graduation Interval: 2 mL
Volume Tolerance: ± 2 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 6
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345060

PMP 500 Moulded No No
Description: Measuring Cylinder Class B, PP, 500 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 500 mL
Cylinder Outer Diameter: 52.5 ± 1.0 mm
Product Height: 389.2 ± 4.0 mm
Graduation Range: 50 mL to 500 mL
Graduation Interval: 5 mL
Volume Tolerance: ± 5 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 6
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345070

PMP 1000 Moulded No No
Description: Measuring Cylinder Class B, PP, 1000 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 1000 mL
Cylinder Outer Diameter: 65.4 ± 1.0 mm
Product Height: 458.5 ± 5.0 mm
Graduation Range: 100 mL to 1000 mL
Graduation Interval: 10 mL
Volume Tolerance: ± 10 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 4
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.
345080

PMP 2000 Moulded No No
Description: Measuring Cylinder Class B, PP, 2000 mL
Product Type: Measuring Cylinder Class B
Cylinder Material: Polypropylene (PP)
Product Colour: Clear (Natural)
Base Shape: Stable hexagonal base
Autoclavable: Autoclaving is not recommended as it may alter volume accuracy
Sterility: Non-sterile
Capacity: 2000 mL
Cylinder Outer Diameter: 82.9 ± 1.0 mm
Product Height: 534.7 ± 5.5 mm
Graduation Range: 200 mL to 2000 mL
Graduation Interval: 20 mL
Volume Tolerance: ± 20 mL
Graduation Type: Moulded
Volume Accuracy: Class B per DIN 12681 and ISO 6706
Working Temperature: 4°C – 60°C
No per Pack: 1
No per Case: 4
Compliance: Manufactured in ISO 9001 & 13485 compliant quality management system. Raw Material comply with FDA 21 CFR.

  • Material conforming to USP Class VI & US FDA 21 CFR
  • Transparent & graduated
  • Come with ring-moulded graduations at major increments for excellent readability
  • Can tolerate temperatures up to 60°C
  • Meets Class B tolerances as per DIN 12681/ISO 6706

Catalog Number: 345010, 345020, 345030, 345040, 345050, 345060, 345070, 345080

Description

  • Material conforming to USP Class VI & US FDA 21 CFR
  • Transparent & graduated
  • Come with ring-moulded graduations at major increments for excellent readability
  • Can tolerate temperatures up to 60°C
  • Meets Class B tolerances as per DIN 12681/ISO 6706

Catalog Number: 345010, 345020, 345030, 345040, 345050, 345060, 345070, 345080
