| Catalog No. |
Technical Data |
Cap Type |
Capacity (mL) |
Colour |
Material |
Sterility |
Autoclavability |
Packing Details |
| 610040 |
|
Flat Cap Strip included |
0.2 |
Clear(tube) Clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
610040 |
| Description: |

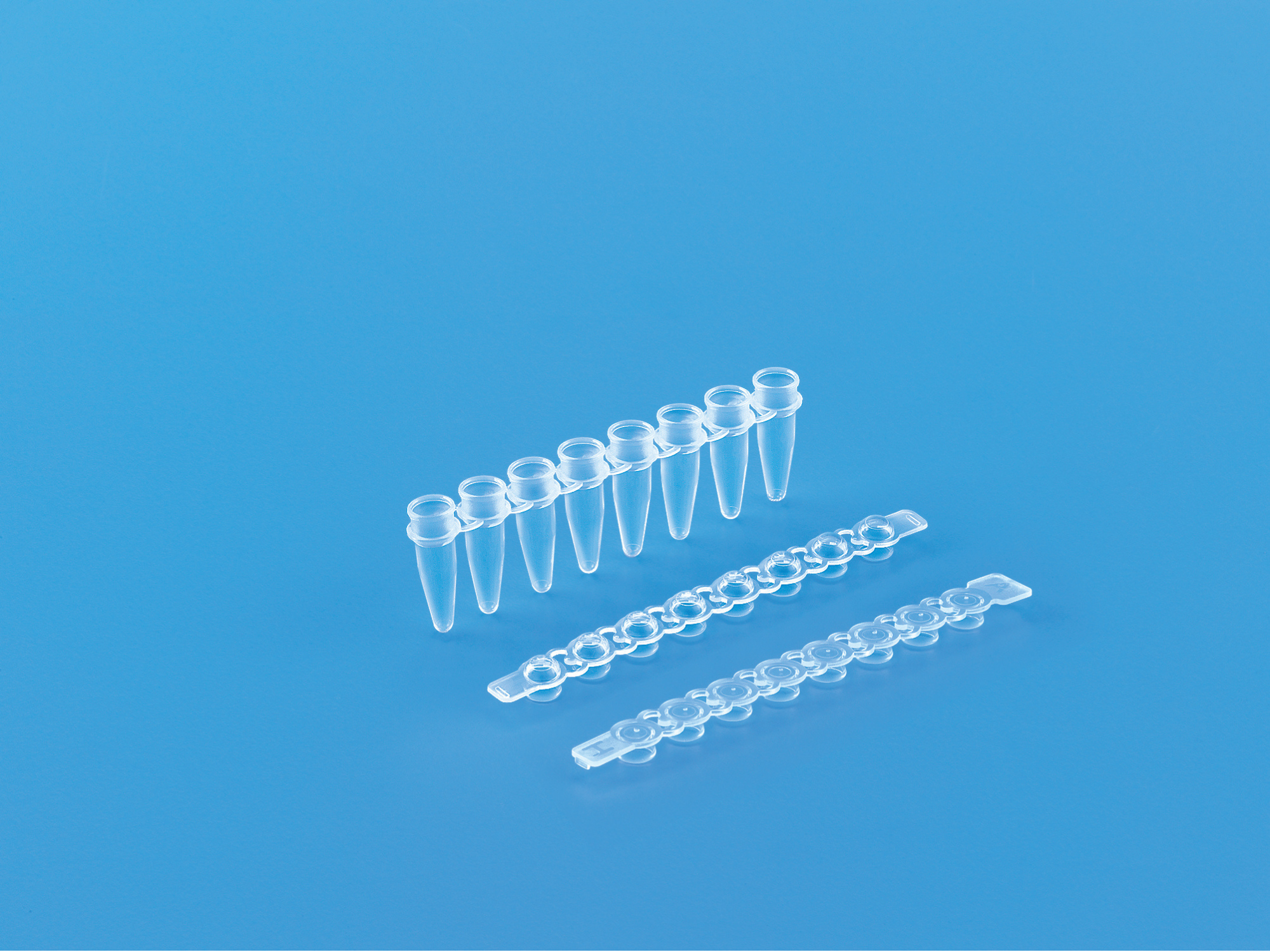

Maxiamp® 0.2 mL 8 tube PCR Strip with flat cap, PP, clear. |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.96 g |
| Strip cap Weight: |
0.39 g |
| Product Unit Weight: |
1.35 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
21.5 mm |
| Height without Cap: |
20.7 mm |
| Length of Strip Tube: |
70.5 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
| |
|
|
| 610050 |
|
Domed Cap Strip included |
0.2 |
Clear(tube) Clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
610050 |
| Description: |
Maxiamp® 0.2 mL 8 tube PCR Strip with domed cap, PP, clear. |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip domed Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.96 g |
| Strip cap Weight: |
0.44 g |
| Product Unit Weight: |
1.4 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
23.7 mm |
| Height without Cap: |
20.7 mm |
| Length of Strip Tube: |
70.5 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 610060 |
|
Flat Cap Strip included |
0.2 |
Clear(tube) Ultra-clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
610060 |
| Description: |
Maxiamp® 0.2 mL 8 tube PCR Strip with Flat cap, PP, with clear tube & Ultra-clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.96 g |
| Strip cap Weight: |
0.36 g |
| Product Unit Weight: |
1.32 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
21.5 mm |
| Height without Cap: |
20.7 mm |
| Length of Strip Tube: |
70.5 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 610070 |
|
Flat Cap Strip included |
0.2 |
White(tube) Ultra-clear(cap) |
Polypropylen |
No |
Yes |
PK 125 strips (1000 reactions) |
|
610070 |
| Description: |
Maxiamp® 0.2 mL 8 tube PCR Strip with Flat cap PP, with white tube & Ultra-clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
White(tube) & Ultra-clear(cap) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.96 g |
| Strip cap Weight: |
0.36 g |
| Product Unit Weight: |
1.32 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
21.5 mm |
| Height without Cap: |
20.7 mm |
| Length of Strip Tube: |
70.5 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 610080 |
|
Individually Attached Flat Cap |
0.2 |
Clear(tube) Ultra-clear(cap) |
Polypropylene |
No |
Yes |
PK 120 strips (960 reactions) |
|
610080 |
| Description: |

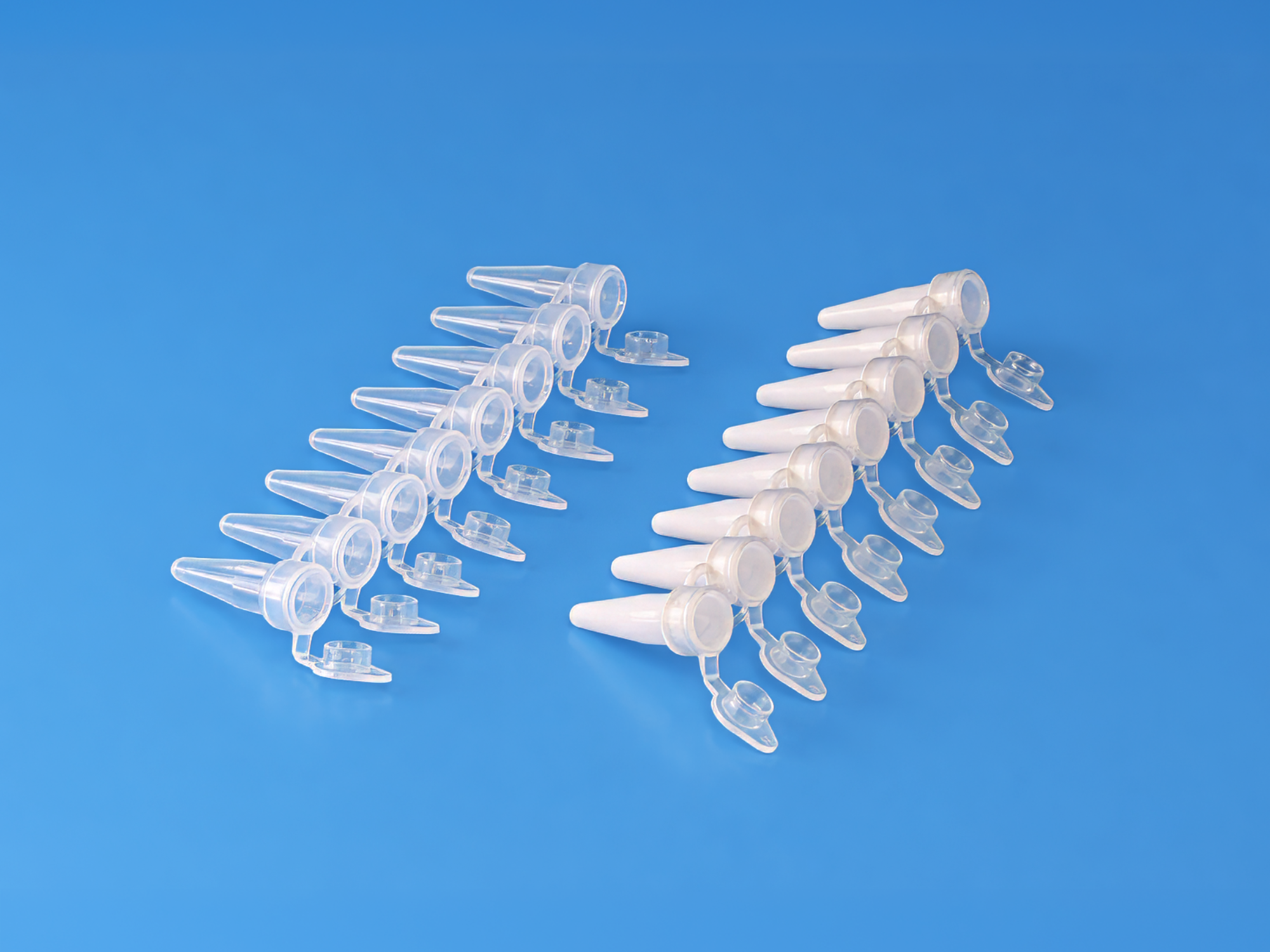

Maxiamp® 0.2 mL 8 tube PCR Strip with individually attached Flat cap, PP, clear tube & Ultra-clear cap |
| Product Type: |
Maxiamp® PCR Tube strips with individually attached Cap |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Product Unit Weight: |
1.66 g |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
21.5 mm |
| Length of Strip Tube: |
70.5 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes |
| Binding Type: |
Low-binding PP |
| Packing: |
120 tube strip & 120 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 610090 |
|
Individually Attached Flat Cap |
0.2 |
White(tube) Ultra-clear(cap) |
Polypropylene |
No |
Yes |
PK 120 strips (960 reactions) |
|
610090 |
| Description: |
Maxiamp® 0.2 mL 8 tube PCR Strip with individually attached Flat cap, PP, white tube & Ultra-clear cap |
| Product Type: |
Maxiamp® PCR Tube strips with individually attached Cap |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
White(tube) & Ultra-clear(cap) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
200 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Product Unit Weight: |
1.66 g |
| Tube Diameter: |
5.7 mm |
| Height with Cap: |
21.5 mm |
| Length of Strip Tube: |
70.5 mm |
| Compatible PCR Block: |
Standard Block for 0.2 mL PCR Strip Tubes |
| Binding Type: |
Low-binding PP |
| Packing: |
120 tube strip & 120 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 611010 |
|
Flat Cap Strip included |
0.1 |
Clear(tube) Clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
611010 |
| Description: |

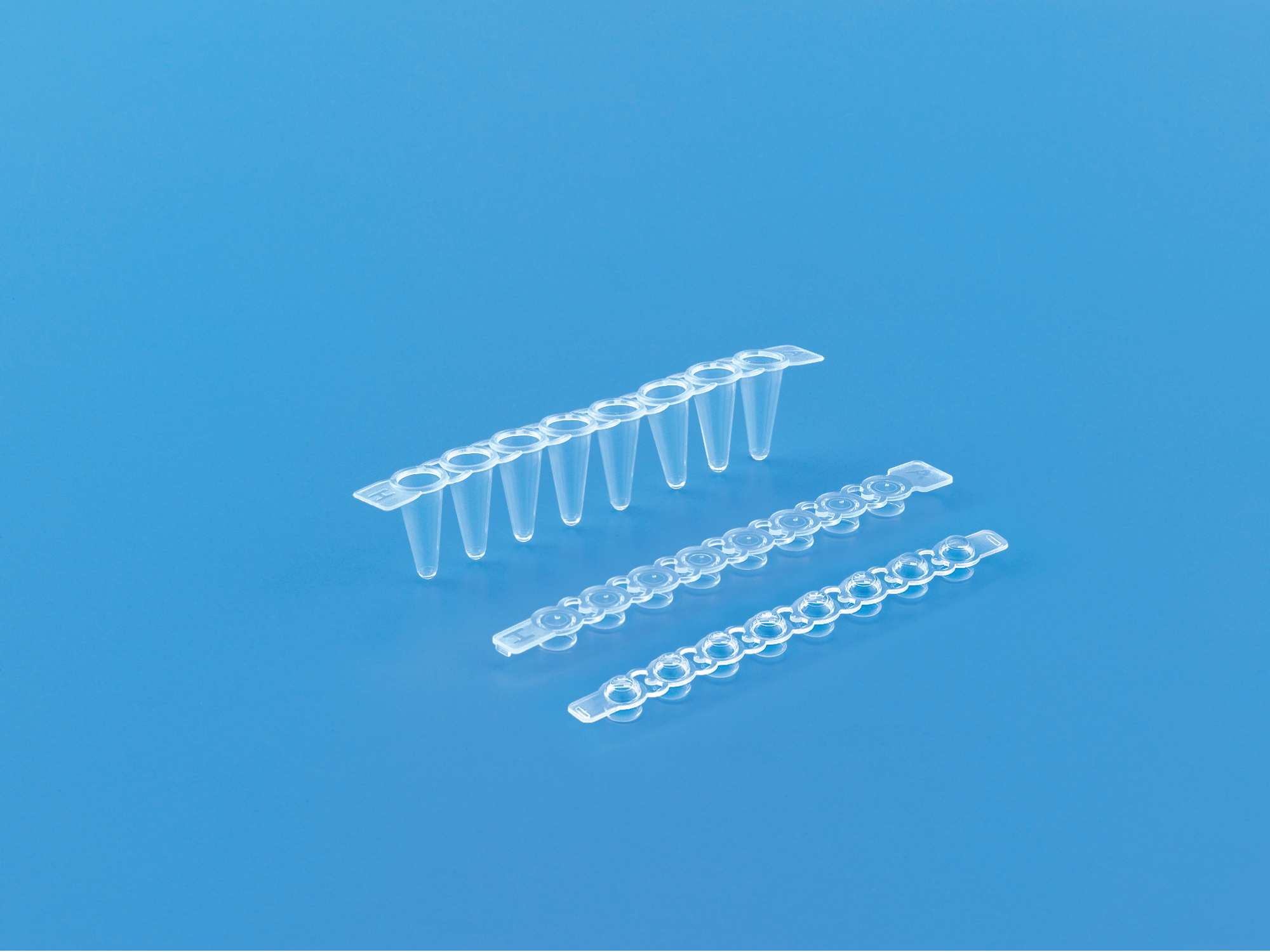

Maxiamp® 0.1 mL Low profile 8 tube PCR Strip with Flat cap, PP, clear tube & clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
100 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.65 g |
| Strip cap Weight: |
0.4 g |
| Product Unit Weight: |
1.0 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
6.2 mm |
| Height with Cap: |
16.3 mm |
| Height without Cap: |
15.4 mm |
| Length of Strip Tube: |
81.4 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Fast Block for 0.1 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 611020 |
|
Domed Cap Strip included |
0.1 |
Clear(tube) Clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
611020 |
| Description: |
Maxiamp® 0.1 mL Low profile 8 tube PCR Strip with Domed cap, PP, clear tube & clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
100 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.65 g |
| Strip cap Weight: |
0.4 g |
| Product Unit Weight: |
1.1 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
6.2 mm |
| Height with Cap: |
18.5 mm |
| Height without Cap: |
15.4 mm |
| Length of Strip Tube: |
81.4 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Fast Block for 0.1 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 611030 |
|
Flat Cap Strip included |
0.1 |
Clear(tube)Ultra-Clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
611030 |
| Description: |
Maxiamp® 0.1 mL Low profile 8 tube PCR Strip with Flat cap, PP, clear tube & ultra clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (Natural) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
100 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.65 g |
| Strip cap Weight: |
0.4 g |
| Product Unit Weight: |
1.0 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
6.2 mm |
| Height with Cap: |
16.3 mm |
| Height without Cap: |
15.4 mm |
| Length of Strip Tube: |
81.4 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Fast Block for 0.1 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
| 611040 |
|
Flat Cap Strip included |
0.1 |
White(tube) Ultra-clear(cap) |
Polypropylene |
No |
Yes |
PK 125 strips (1000 reactions) |
|
611040 |
| Description: |
Maxiamp® 0.1 mL Low profile 8 tube PCR Strip with Flat cap, PP, white tube & ultra clear cap |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
White(tube) & ultra clear(cap) |
| Tube Bottom Shape: |
Conical Bottom |
| Cap Type: |
8 strip Flat Cap |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
100 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.65 g |
| Strip cap Weight: |
0.4 g |
| Product Unit Weight: |
1.0 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
6.2 mm |
| Height with Cap: |
16.3 mm |
| Height without Cap: |
15.4 mm |
| Length of Strip Tube: |
81.4 mm |
| Length of Strip Cap: |
83.2 mm |
| Compatible PCR Block: |
Fast Block for 0.1 mL PCR Strip Tubes / Strip Caps |
| Binding Type: |
Low-binding PP |
| Packing: |
125 tube strip & 125 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|

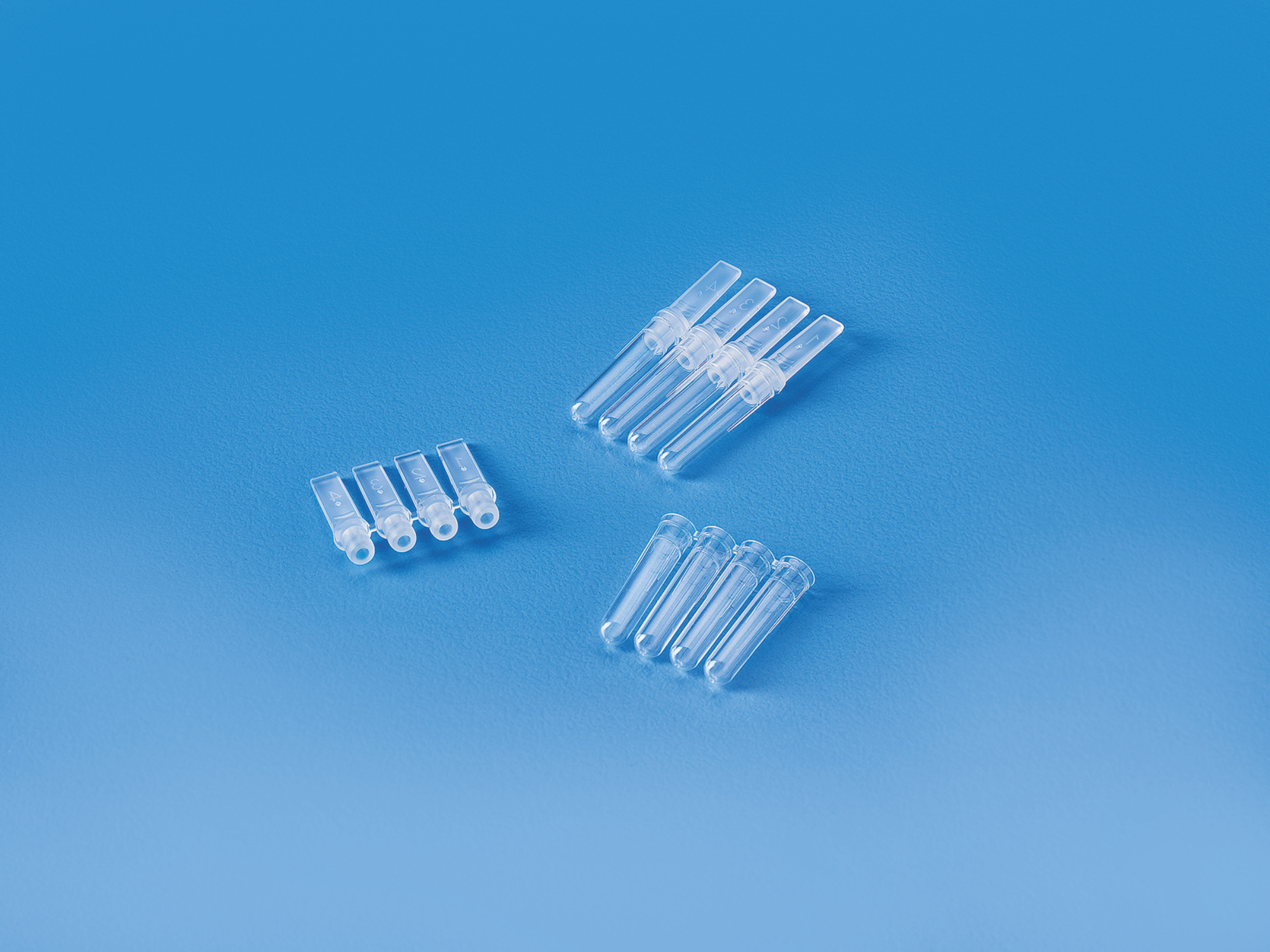

| 510059 |
|
Cap strip included |
0.1 |
Clear(tube) Clear(cap) |
Polypropylene |
No |
Yes |
PK 250 strips (1000 reactions) |
|
510059 |
| Description: |
Maxiamp® 0.1 mL 4 strip tubes and caps, PP |
| Product Type: |
Maxiamp® PCR Tube strips and strip Caps |
| Tube & Cap Material: |
Polypropylene (PP) |
| Colour: |
Clear (tube & cap) |
| Tube Bottom Shape: |
Round Bottom |
| Cap Type: |
4 plug cap per strip |
| Autoclavability: |
Autoclavable when cap is open (121°C at 15 psi for 20 min) |
| Working Volume/Tube: |
100 µL |
| Sterility: |
Non-Sterile |
| Temperature Range: |
-80°C to 121°C |
| Strip Tube Weight: |
0.17 g |
| Strip cap Weight: |
0.21 g |
| Product Unit Weight: |
0.38 g (weight of 1 tube strip + 1 cap strip) |
| Tube Diameter: |
3.4 mm |
| Height with Cap: |
27.3 mm |
| Height without Cap: |
16.6 mm |
| Length of Strip Tube: |
17.3 mm |
| Length of Strip Cap: |
17.4 mm |
| Compatible PCR Block: |
Compatible with Qiagen® / Corbett Rotor-Gene® PCR instruments |
| Binding Type: |
Low-binding PP |
| Packing: |
250 tube strip & 250 cap strip / Bag |
| Compliance: |
Manufactured inside Class 8 cleanroom in compliance with ISO 13485:2016 quality requirements. Strips meet the requirements of FDA-21 CFR, USP Class VI. Free of detectable DNase, RNase, PCR inhibitors, Human DNA and Pyrogen. |
|
