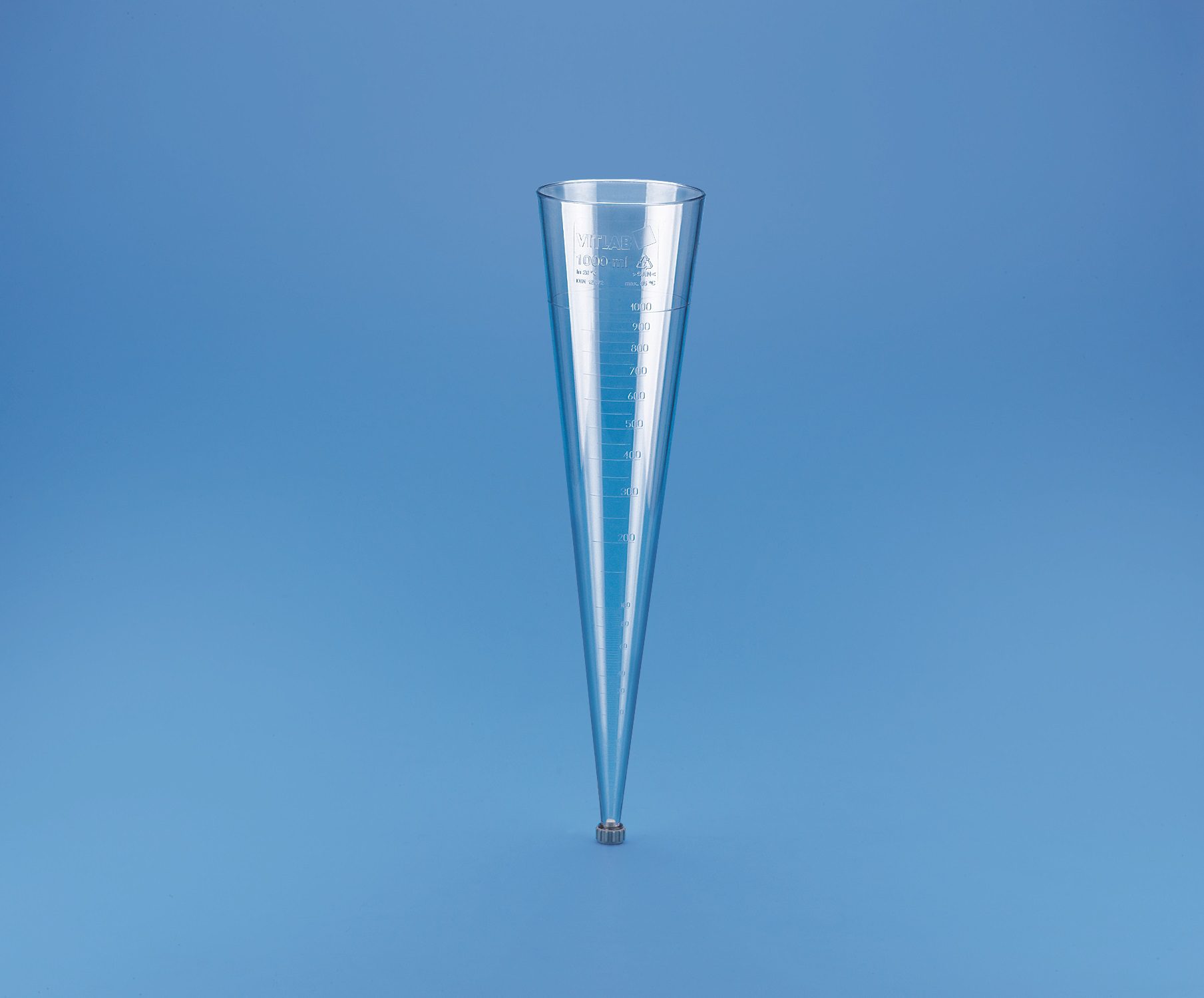

Imhoff Settling Cone, SAN

Our Imhoff Settling Cones are made from Styrene Acrylonitrile (SAN), according to DIN 12 672. These are crystal clear, with moulded graduations for precise reading of volumes. They are designed to determine the volume of settleable matter from known waste effluent. The leakproof closure makes it possible to withdraw sediment for gravimetric analysis and aids in cleaning. For simple, basic cleaning and rinsing, the screw coupling on the tip can be removed. The risk is lower for breakage than for PC or glass containers.

Certificates..
Catalog No. Technical Data Material Product Colour With Screw Cover
341000

SAN Natural Yes
Description: Imhoff Settling Cone, SAN
Product Type: Imhoff Settling Cone
Product Colour: Natural
Product Material: Styrene Acrylonitrile (SAN)
Capacity: 1000 mL
Graduation Intervals: 0-2mL:1mL

2-10mL: 2mL

10-40mL: 10mL

40-100mL: 20mL

100-1000mL: 100mL

Top Diameter: 122 mm
Closure Size: 21.5 mm
Compliance: The manufactured product meets the requirements of DIN 12 672.

  • Crystal clear
  • Comes with moulded graduations for precise reading of volumes
  • Designed to determine the volume of settleable matters
  • Leakproof closure makes it possible to withdraw sediment for gravimetric analysis
  • The screw coupling is removable which makes cleaning easy

Catalog Number: 341000

Description

  • Crystal clear
  • Comes with moulded graduations for precise reading of volumes
  • Designed to determine the volume of settleable matters
  • Leakproof closure makes it possible to withdraw sediment for gravimetric analysis
  • The screw coupling is removable which makes cleaning easy

Catalog Number: 341000
